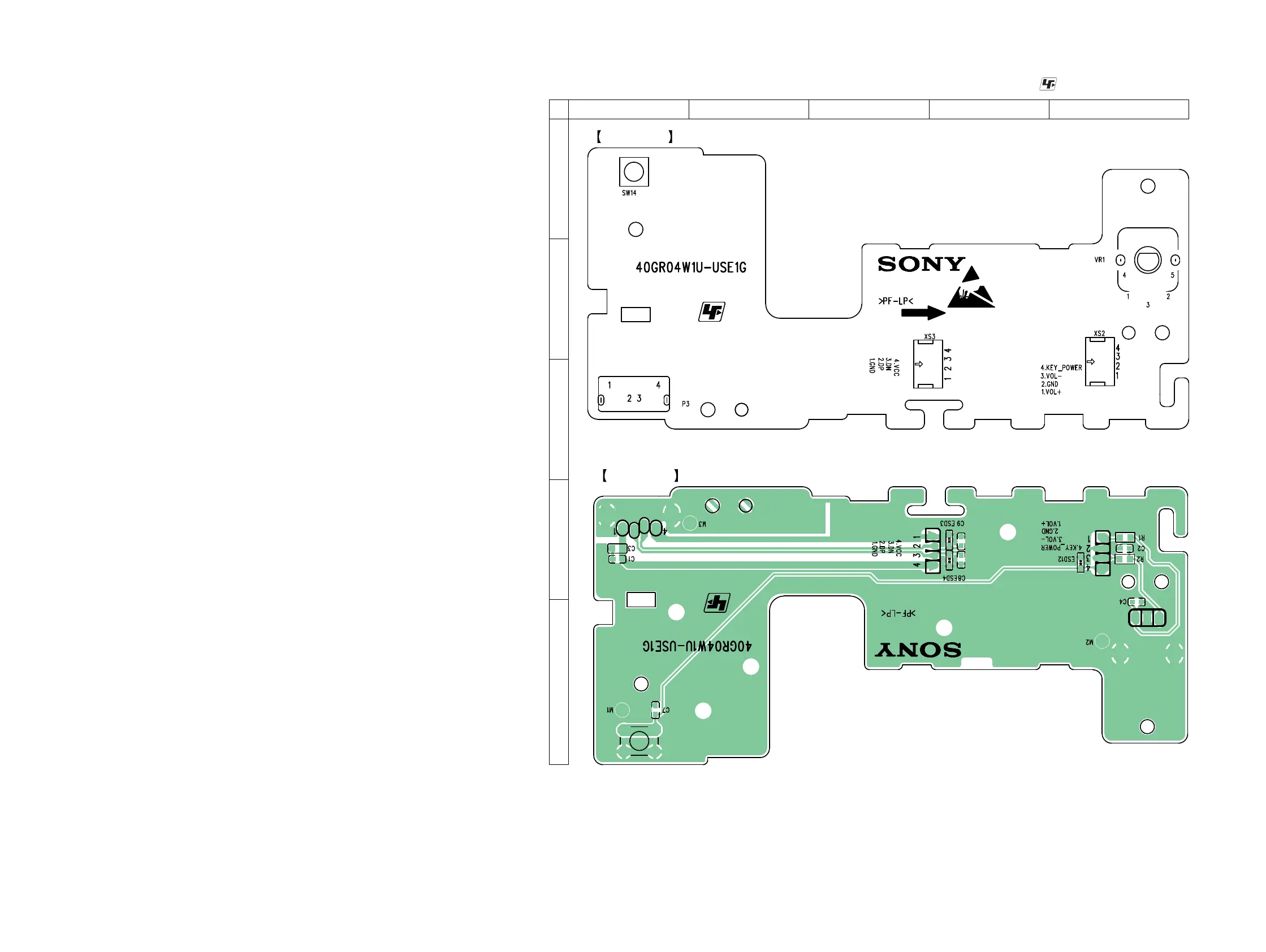

6-12. PRINTED WIRING BOARD - USB Board -
• : Uses unleaded solder.
• See page 20 for Circuit Boards Location.
USB BOARD (COMPONENT SIDE)
USB BOARD (CONDUCTOR SIDE)
A
B
C
D
E
1 2 3 4 5
