Sony HCD-S20 - Chassis Internal Components Exploded View

37
HCD-S20

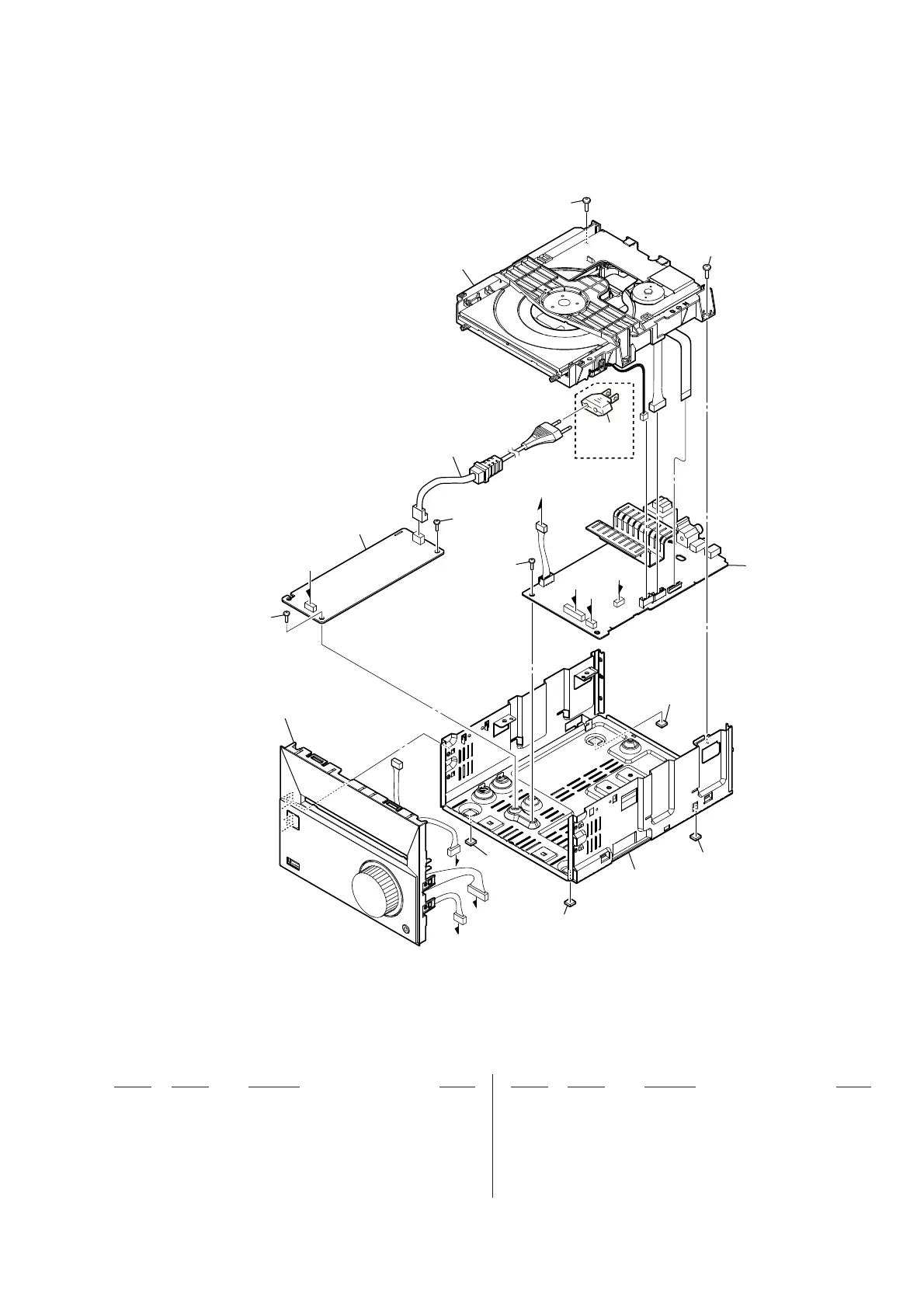

7-2. CHASSIS SECTION
51 A-1945-220-A MAIN BOARD, COMPLETE
52 A-1945-219-A POWER BOARD, COMPLETE
53 4-465-834-01 SCREW (3)
0 AC1 9-885-185-52 CORD, POWER (E32)
0 AC1 9-885-185-53 CORD, POWER (MX)
0 AC1 9-885-185-54 CORD, POWER (AR)
0 AC1 9-885-185-55 CORD, POWER (EA)
0 AC1 9-885-185-56 CORD, POWER (KR)
0 AC1 9-885-187-01 CORD, POWER (SP)
0 ACP1 9-885-169-85 ADAPTOR, CONVERSION PLUG (E32)
0 CDM1 A-1945-216-A LOADER (TDL-5) & OPU ASSY
(Including optical pick-up and fl exible fl at cable)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
D
C
B
D
C
B
A
A
front panel section
CDM1
AC1
not supplied
53
52
53
53
51
53
53
not supplied
not supplied
not
supplied
not supplied
ACP1
(E32)
