Sony HCD-S20 - Top Cover Assembly Exploded View

36
HCD-S20
SECTION 7
EXPLODED VIEWS
1 4-465-828-01 CD DOOR (S20)
2 4-465-832-01 SCREW (1)
3 A-1945-217-A KEY BOARD, COMPLETE (Including USB board)
4 X-2587-411-1 TOP COVER ASSY S20
5 4-465-833-01 SCREW (2)
6 4-465-834-01 SCREW (3)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
• Abbreviation
AR : Argentina model
E32 : 110 – 240V AC area in E model
EA : Saudi Arabia model
KR : Korean model
MX : Mexican model
SP : Singapore model

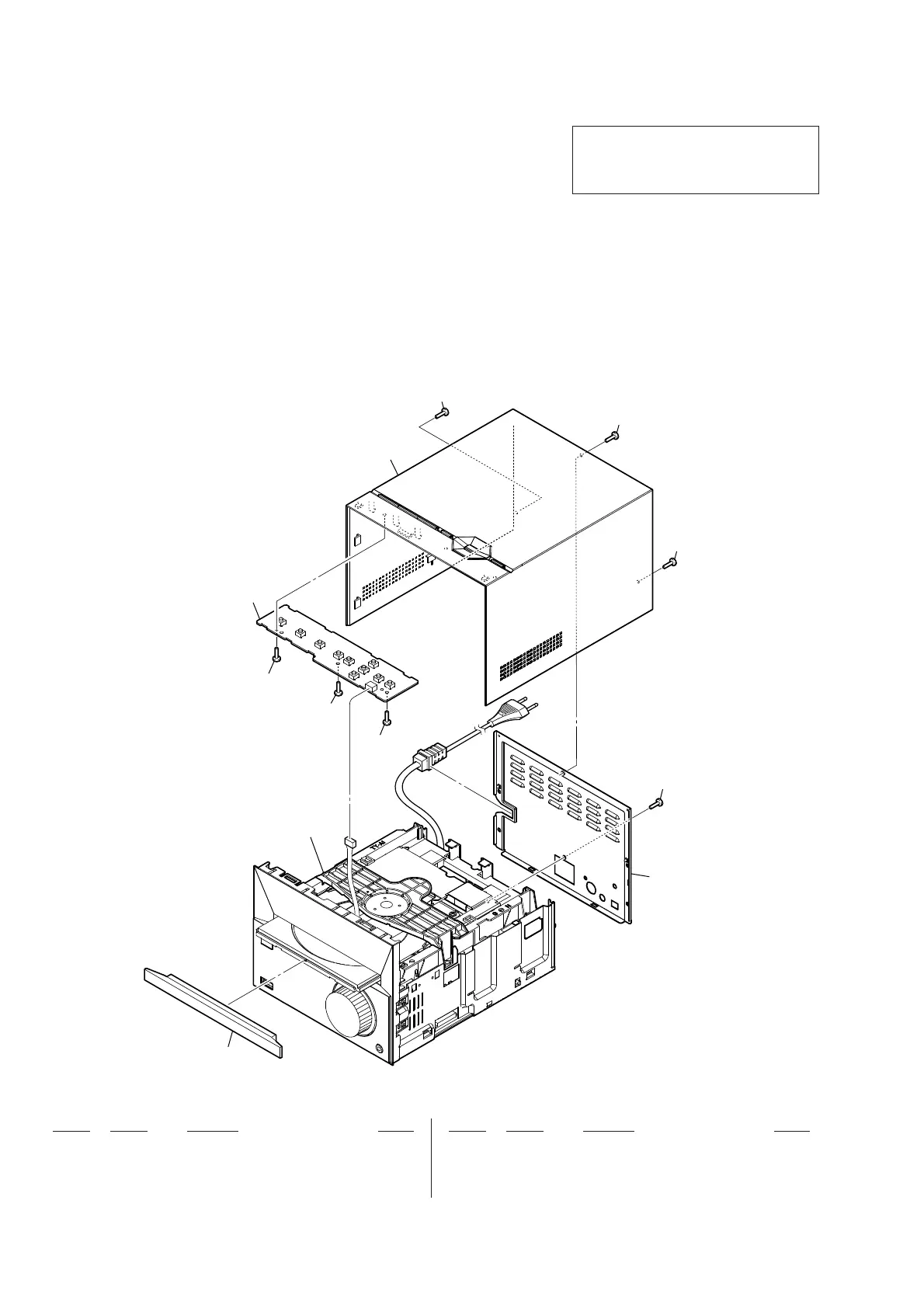

7-1. TOP COVER SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
1
chassis section
5
6
2
3
4
5
5
2
2
not supplied
