HCD-S20
6

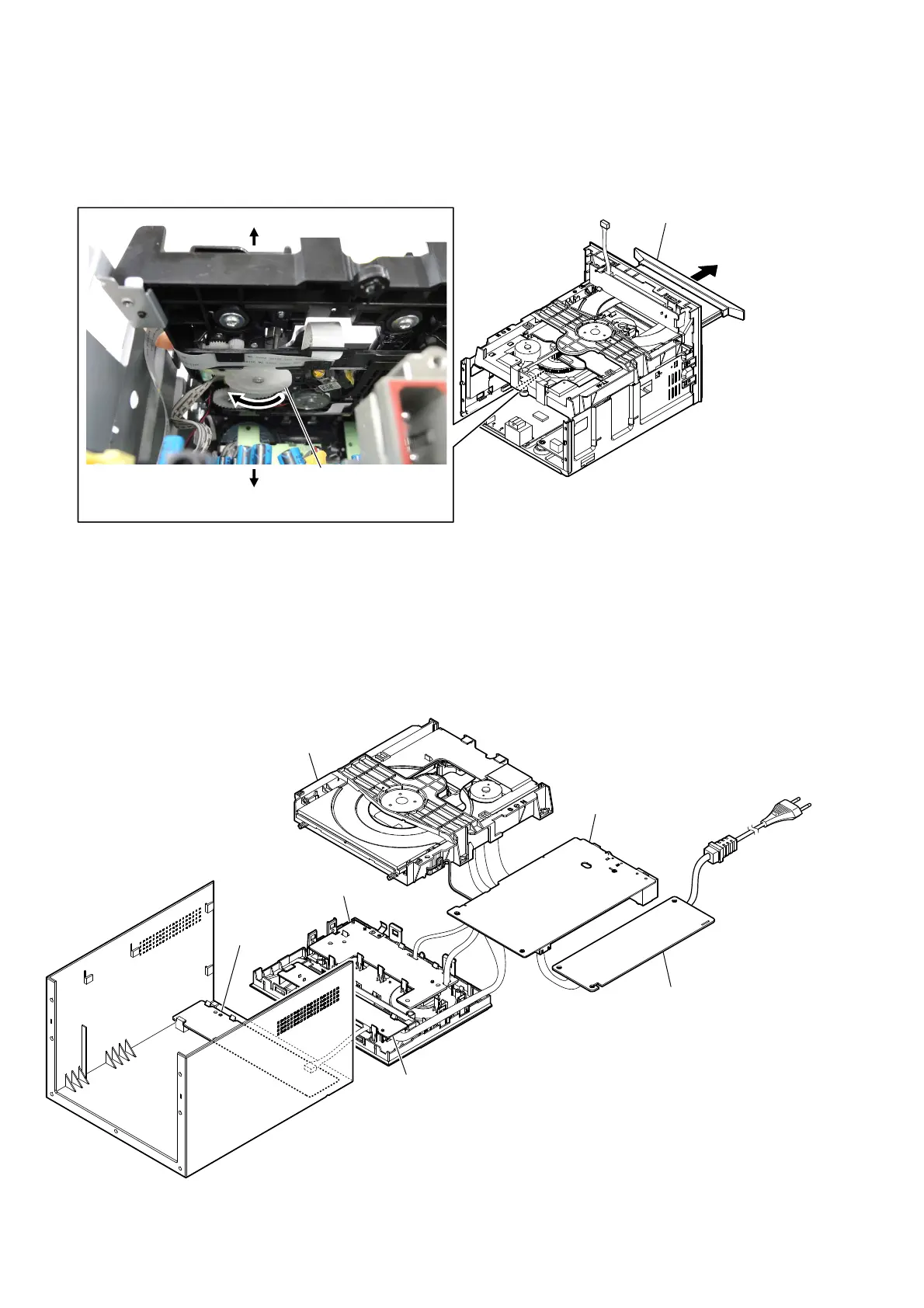

HOW TO EJECT THE DISC WHEN POWER SWITCH TURN OFF
SERVICE POSITION
3 Pull out the disc tray.
2 Turn the traverse gear in
the direction of an arrow.
1 Refer to “SECTION 2. DISASSEMBLY” (page 7), remove the top cover assy S20 and the rear panel block from the unit.
bottom side
top side
– Rear view –
– Rear view –
MAIN board
POWER board
VFD board
KEY board
USB board
loader (TDL-5) & OPU assy
(CDM1)
To Next Page
