Sony HCD-V818 - DISASSEMBLY; Disc Tray Removal

– 11 –

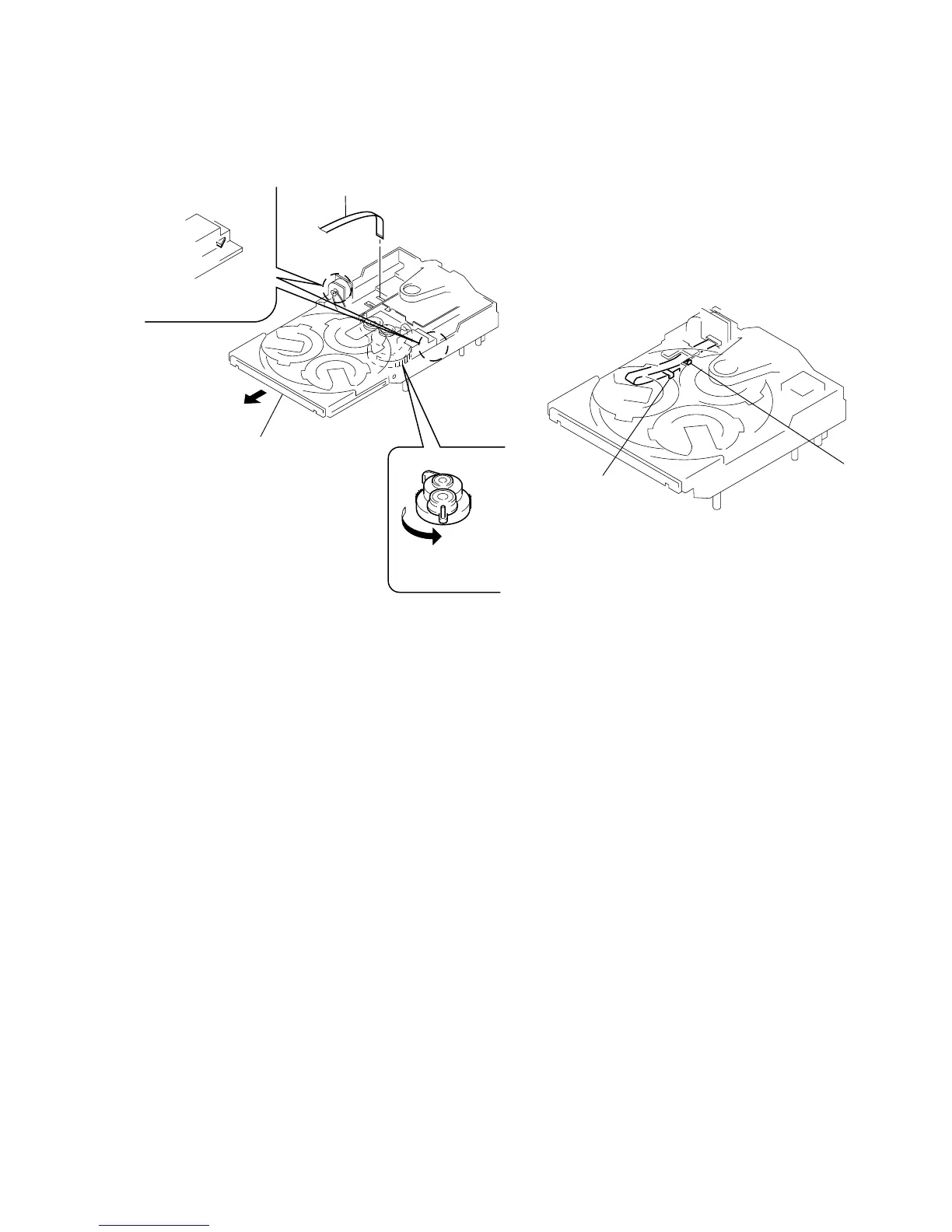

3-5. DISC TRAY
Note: When installing the Disc tray, pull around the flat type wire to
pass through the clawA and clawB, as shown in the figure.
(Perfom after removing the front panel.)
Claw B
Claw A
1
Turn the cam the
direction of arrow.
2 Pull-out the disc tray.
5 Remove the disc tray.
4 Two claws
3 Flat type wire (8 core)
