Sony HCD-V818 - Chassis Section

– 100 –

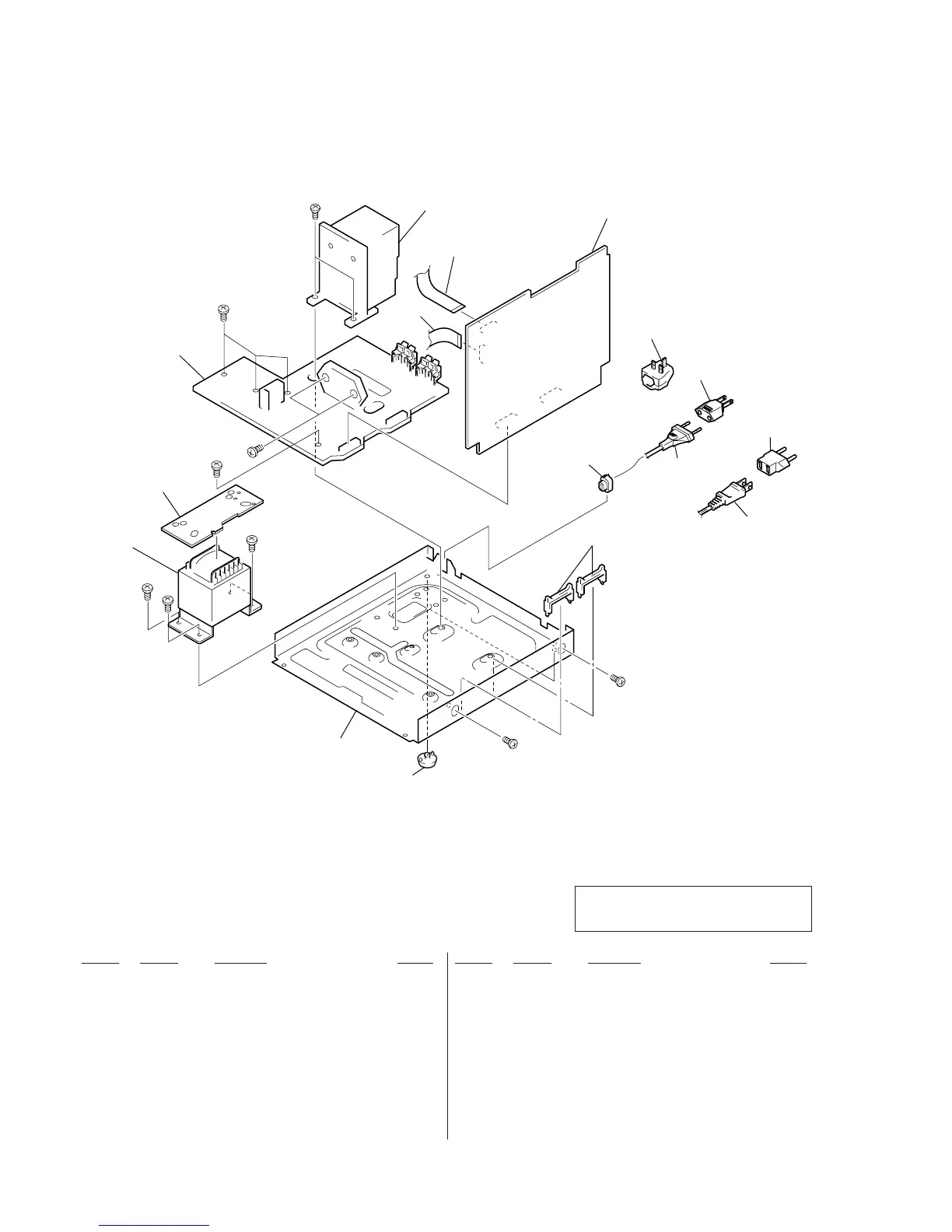

9-2. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
57 4-965-822-01 FOOT
! 58 1-569-007-11 ADAPTOR, CONVERSION 2P (IA)
! 58 1-569-008-21 ADAPTOR, CONVERSION 2P (SP,MY,EA,TW)
! 58 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
! 59 1-558-943-41 CORD, POWER (IA)
! 59 1-575-651-21 CORD, POWER (SP,MY,EA,HK,TW)
60 1-783-898-11 WIRE (FLAT TYPE) (15 CORE)
! T501 1-431-828-11 TRANSFORMER, POWER
* 51 A-4407-260-A POWER BOARD, COMPLETE
(Indonesia Product)(SP,MY,EA,HK,IA,TW)
51 A-4407-498-A POWER BOARD, COMPLETE
(Malaysia Product)(MY)
* 52 1-668-274-11 TRANSFORMER BOARD
* 53 A-4414-035-A MAIN BOARD, COMPLETE
54 1-773-041-11 WIRE (FLAT TYPE) (17 CORE)
55 3-703-244-00 BUSHING (FBS001), CORD (SP,MY,EA,HK,TW)
55 4-966-266-01 BUSHING (S) (FBS002), CORD (IA)
* 56 4-988-533-01 HOLDER, PWB
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
51
52
53
54
60
55
#5
#5
#5
#5
T501
not supplied
not supplied
#5
#4
#6 #6
#6
56
57
58
(SP,MY,EA,TW)
58 (HK)
58 (IA)
59 (SP,MY,EA,
HK,TW)
59 (IA)
