– 71 – – 72 –
HCD-V818

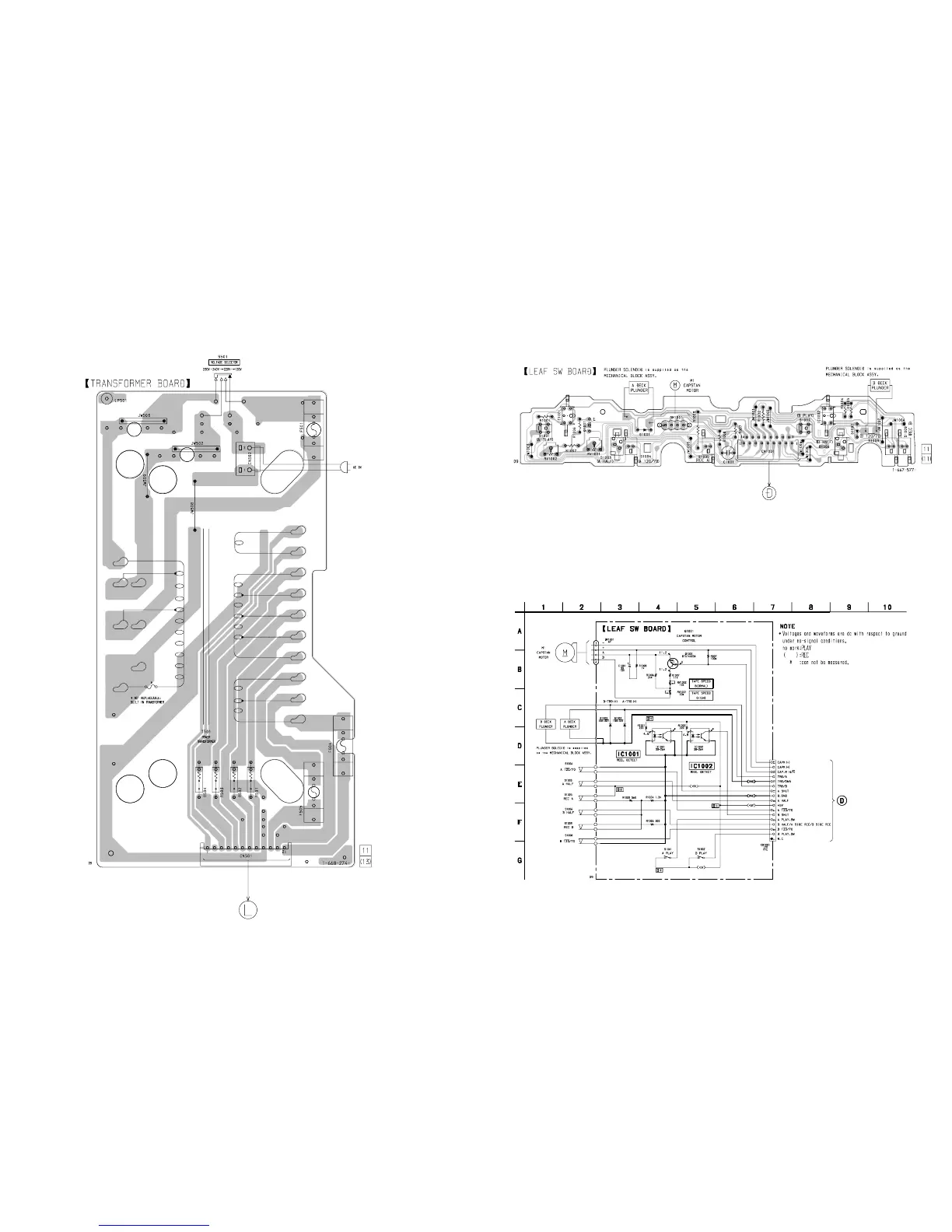

8-21. PRINTED WIRING BOARD – TRANSFORMER SECTION –
• See page 22 for Circuit Boards Location.
8-23. SCHEMATIC DIAGRAM – LEAF SW SECTION –
8-22. PRINTED WIRING BOARD – LEAF SW SECTION –
• See page 22 for Circuit Boards Location.
(Page 53)
(Page 56)
(Page 66)
