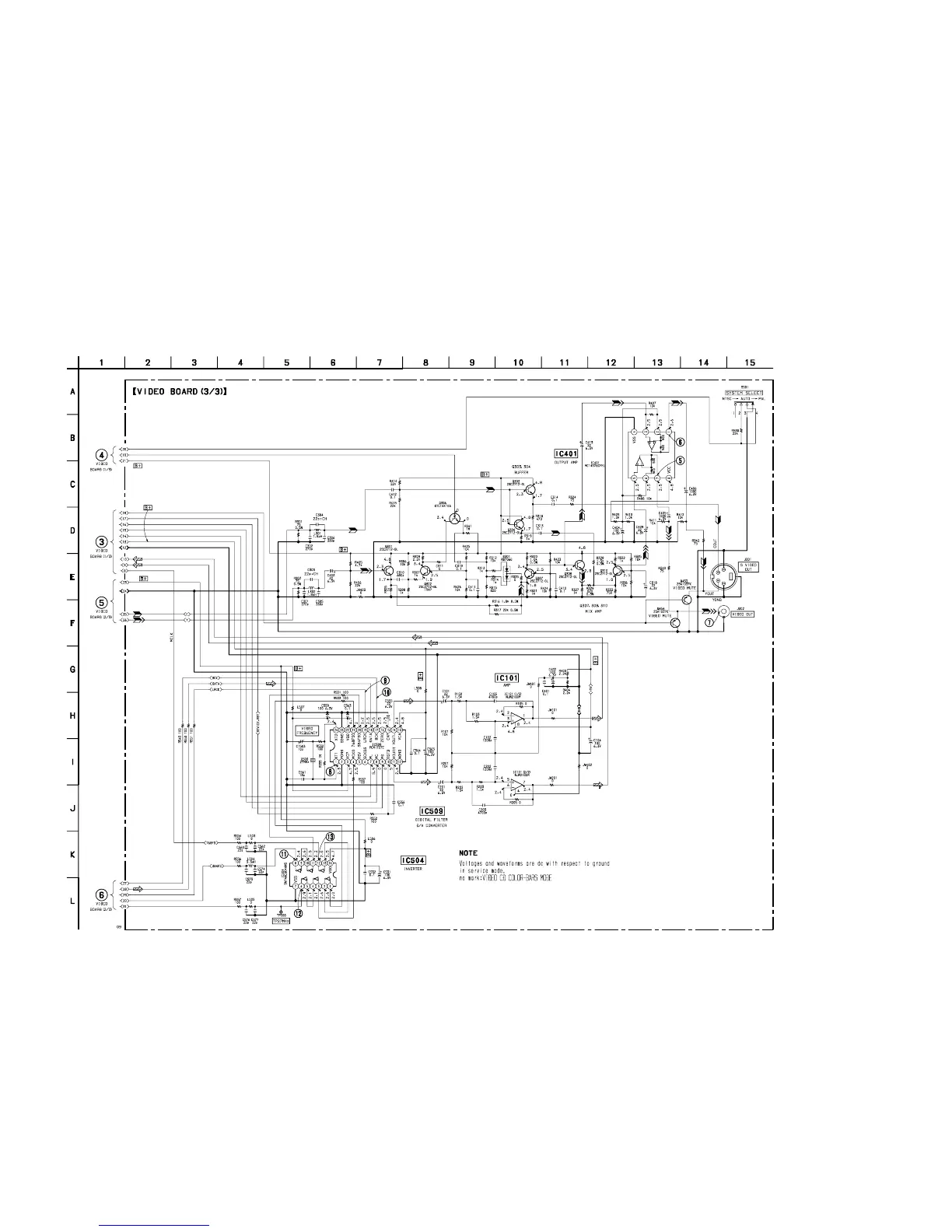

8-10. SCHEMATIC DIAGRAM – VIDEO (3/3) SECTION –
• See page 36 for Waveforms.
• See page 45 for Printed Wiring Board.
(Page 48)
(Page 50)
(Page 50)
(Page 48)
(SEE PAGE 12)
