SELF DIAGNOSIS
This unit is equipped with a self-diagnosis function.
The function is used for diagnosing the conditions of the circuits of the VIDEO board.
The circuits can be determined if normal or abnormal by the lighting of D502 of the VIDEO board.
Lighting of D502
When lit : Operates normally
Blinks repeatedly : The circuit may be faulty.

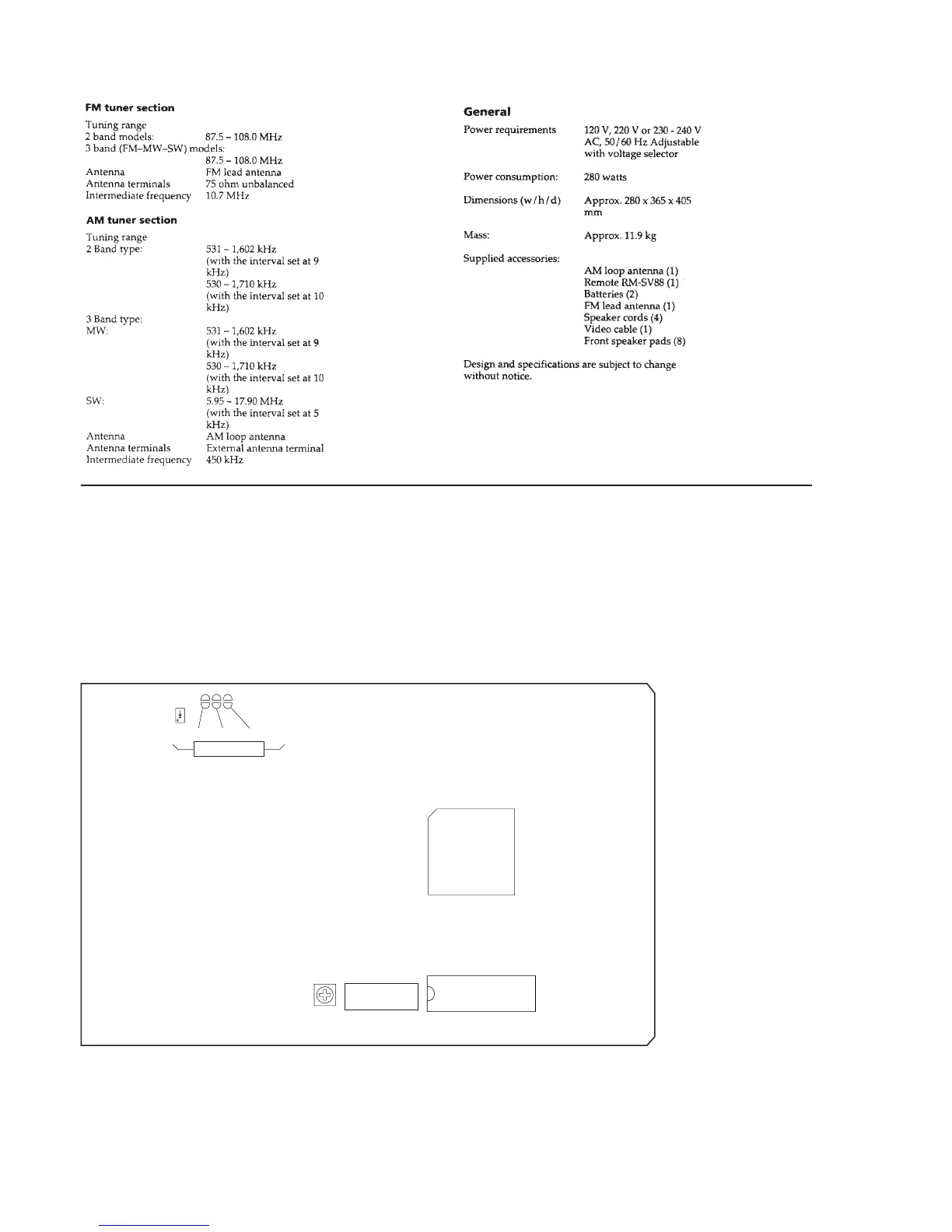

[VIDEO BOARD] (SIDE A)
SL501
D502
SL502
IC507
IC505
CT503
SL503
TEST MODE
VIDEO
FREQUENCY
