Sony HCD-VR70 - Printed Wiring Board - Power Section

HCD-VR50/VR70
– 63 – – 64 –
• Semiconductor
Location
D401 G-4
D402 C-2
D403 E-8
D405 A-1
D406 B-1
D801 F-4
D802 E-5
D803 E-6
D831 I-8
D833 I-5
D834 I-5
D835 I-5
D836 I-5
D841 I-3
D842 I-2
D843 I-3
D844 I-3
D851 F-4
D852 E-5
D911 I-9
D912 I-8
IC801 D-4
Q401 C-1
Q402 C-1
Q431 F-8
Q432 G-8
Q433 G-8
Q434 G-7
Q437 G-8
Q439 G-8
Q801 F-4
Q803 F-6
Q804 F-6
Q805 H-3
Q831 F-2
Q832 F-2
Q833 G-2
Q834 F-3
Q851 F-4
Q855 H-3
Q903 I-9
Ref. No. Location

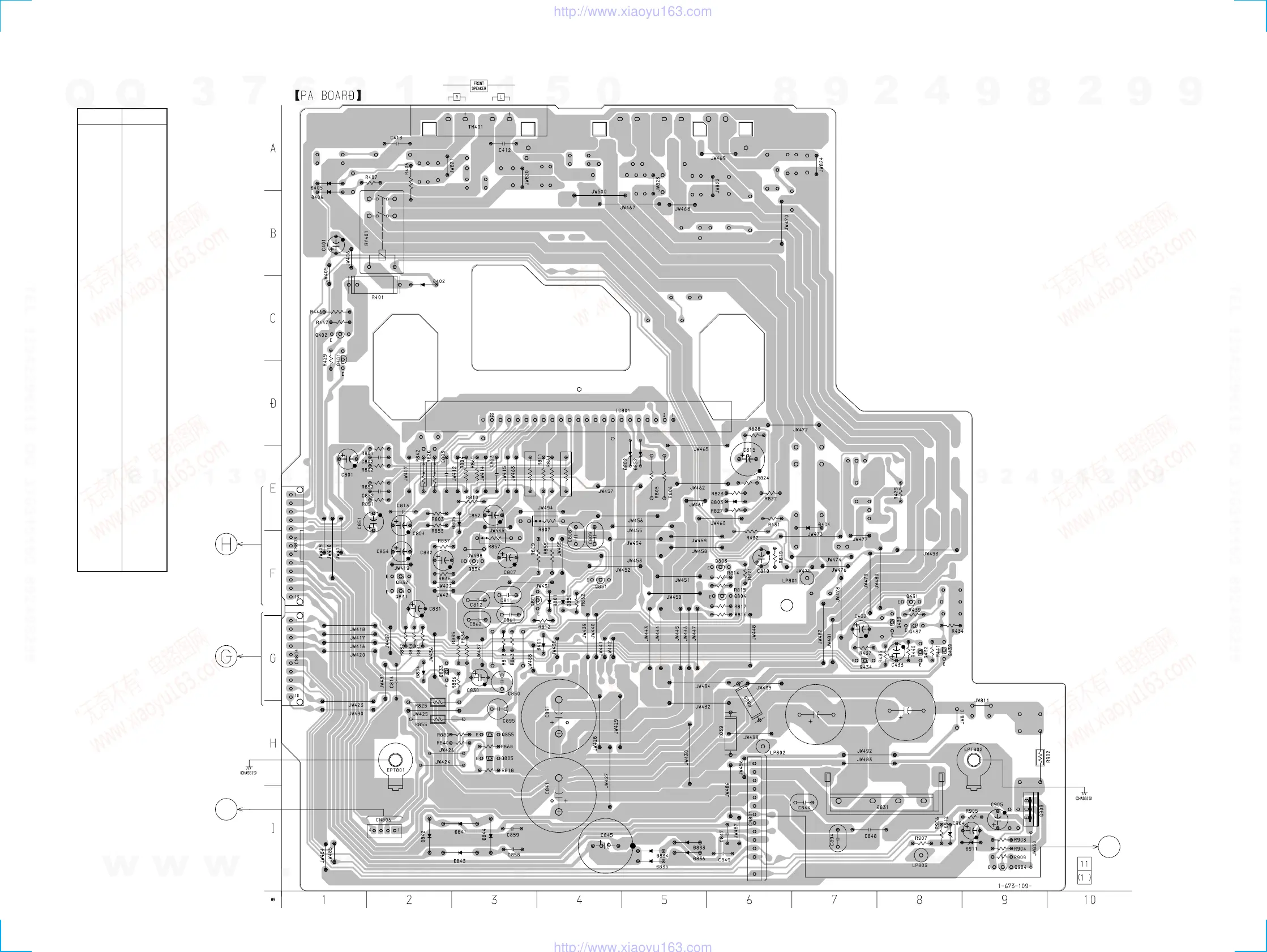

7-17. PRINTED WIRING BOARD – POWER SECTION –
• See page 18 for Circuit Boards Location.
(Page 52)
(Page 52)
(Page 93)
(Page 97)
