– 114 –

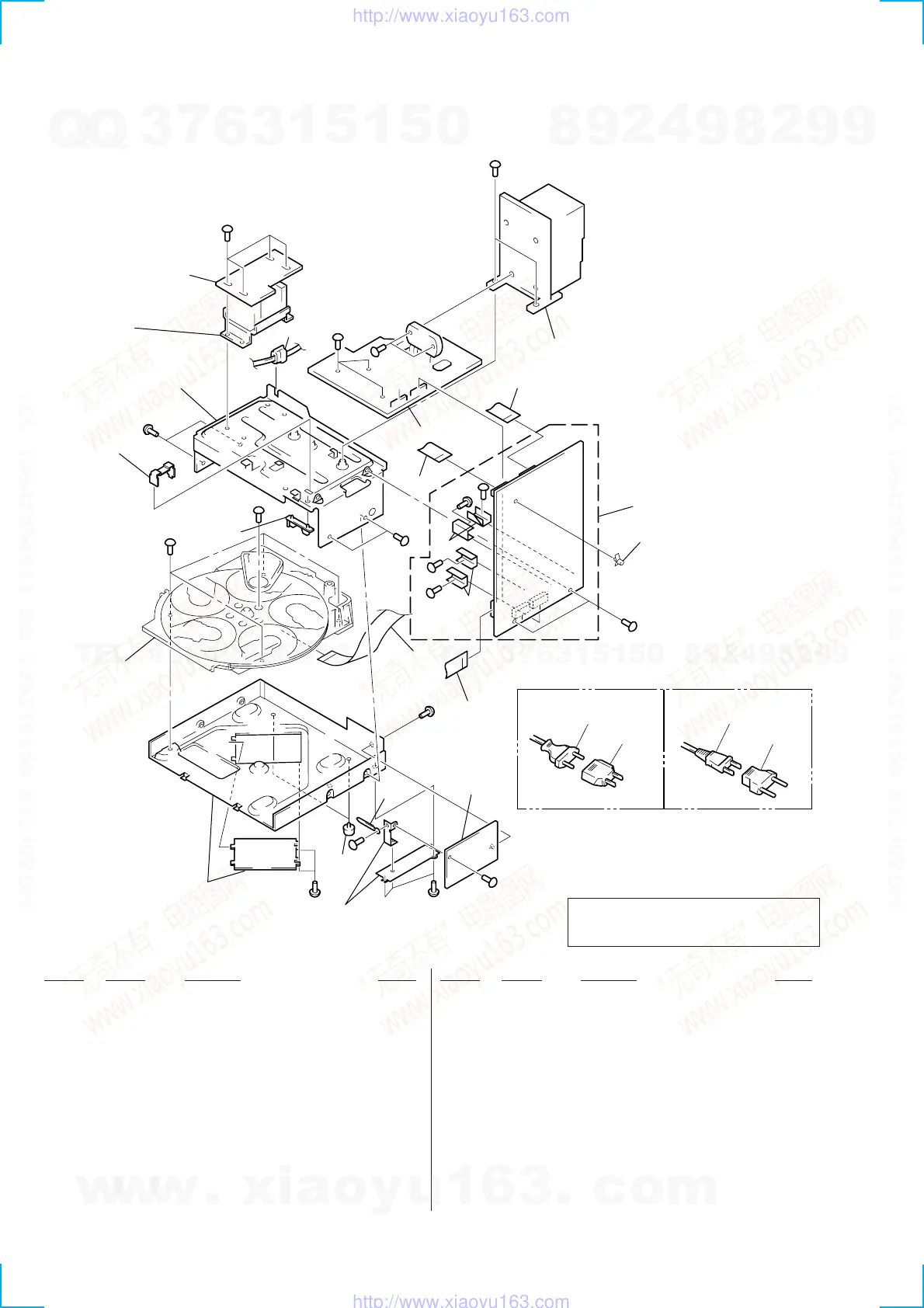

8-4. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
158 1-790-288-11 WIRE (FLAT TYPE) (13 CORE)
* 159 4-988-533-01 HOLDER, PWB
160 1-773-006-11 WIRE (FLAT TYPE) (15 CORE)
161 1-773-056-11 WIRE (FLAT TYPE) (17 CORE)
162 A-4724-725-A VIDEO BOARD, COMPLETE
163 4-875-327-31 HEAT SINK
* 164 3-703-150-11 CLAMP
!CNP901 1-558-943-41 CORD, POWER (IA)
!CNP901 1-575-651-21 CORD, POWER (EXCEPT IA)
!T951 1-433-604-11 TRANSFORMER, POWER (VR50)
!T951 1-433-606-11 TRANSFORMER, POWER (VR70)
151 1-673-110-11 TRANS BOARD
152 1-569-007-11 ADAPTOR, CONVERSION 2P (IA)
152 1-569-008-21 ADAPTOR, CONVERSION 2P (EXCEPT IA)
153 3-703-244-00 BUSHING (FBS001), CORD
154 A-4417-475-A PA BOARD, COMPLETE (VR70)
154 A-4417-558-A PA BOARD, COMPLETE (VR50)
155 A-4417-464-A MAIN BOARD, COMPLETE (VR70)
155 A-4417-549-A MAIN BOARD, COMPLETE (VR50:SP,MY)
155 A-4419-665-A MAIN BOARD, COMPLETE (EA)
156 1-790-660-11 WIRE (FLAT TYPE) (23 CORE)
157 X-4941-228-1 FOOT (F22125H-M)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
(EXCEPT IA) (IA)
151
159
157
156
158
164
162
155
160
154
161
163
163
153
#8
#3
#3
#3
#3
#3
#3
#3
#3
#7
#3
CNP901
#3
#3
#3
#3
#3
#3
T951
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
CDM37L-5BD34L
152
CNP901
152
