Sony HCD-VR70 - Printed Wiring Board - Panel FL Section

HCD-VR50/VR70
– 73 –
– 74 –

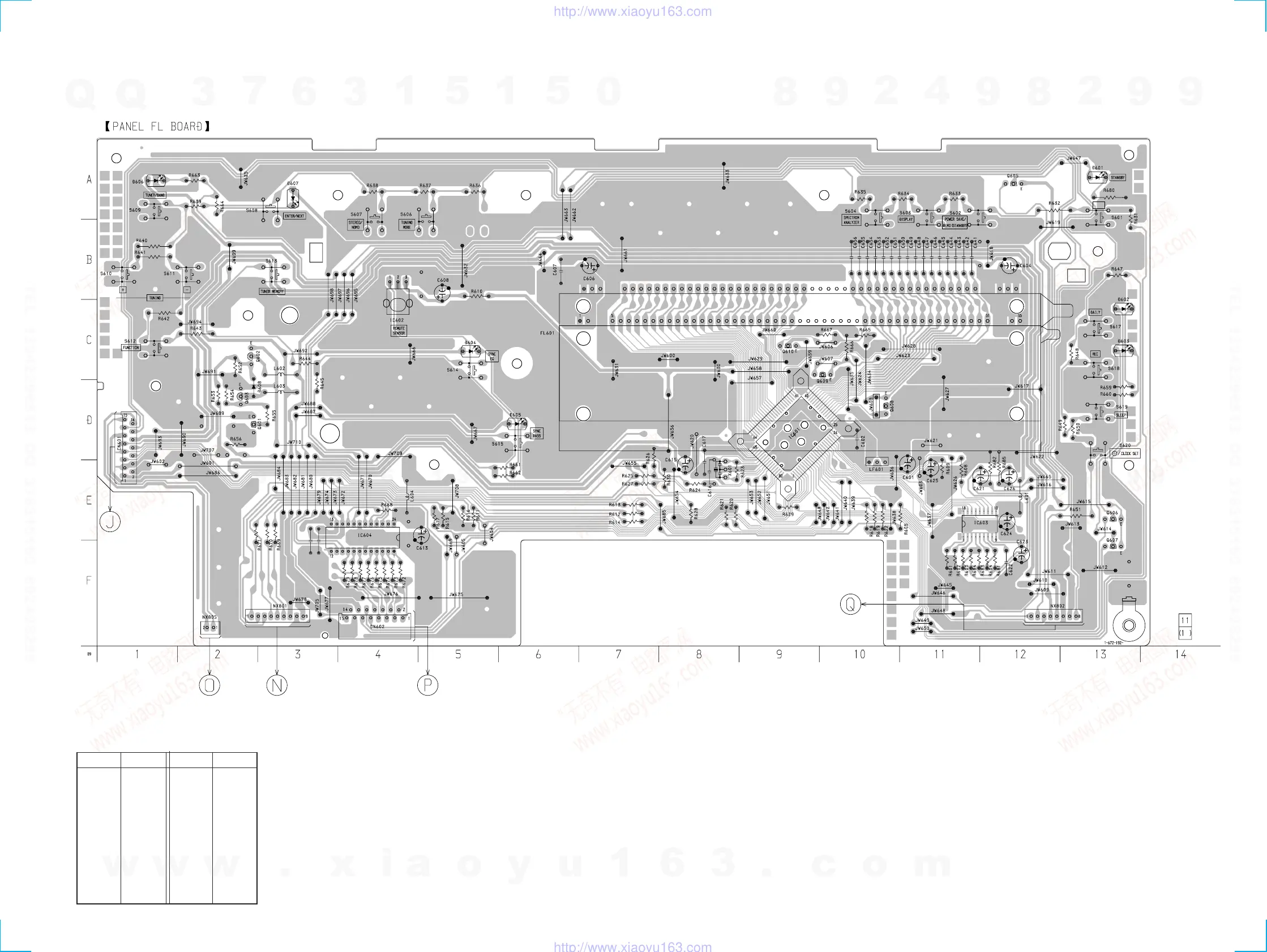

7-23. PRINTED WIRING BOARD – PANEL FL SECTION –
• See page 18 for Circuit Boards Location.
• Semiconductor Location
D601 A-13
D602 C-13
D603 C-13
D604 C-5
D605 D-6
D606 A-1
D607 A-3
D608 D-2
IC601 D-9
IC602 C-4
IC603 E-12
Ref. No. Location
IC604 E-4
Q601 D-2
Q602 C-2
Q603 D-2
Q605 A-12
Q606 E-13
Q607 F-13
Q608 D-10
Q609 C-10
Q610 C-9
Ref. No. Location
(Page 51)
(Page 81)
(Page 82)
(Page 77)
(Page 81)
C612 C611
