HCD-VX222

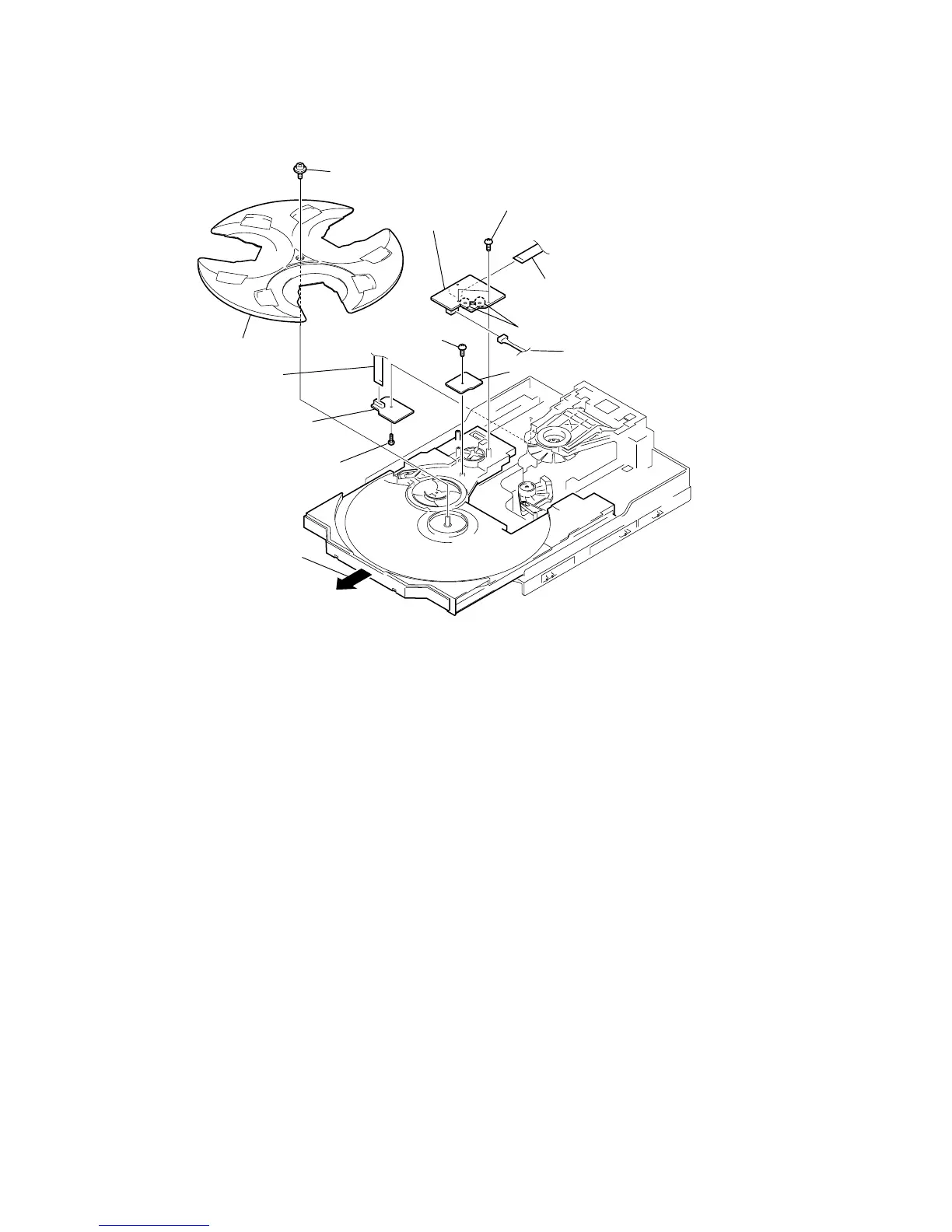

3-10. DRIVER BOARD, MOTOR BOARD AND ADDRESS SENSOR BOARD
9 Pull-out the disc tray.
4 Two screws (+BVTP 2.6 × 8)
q; Screw (+PTPWH 2.6 × 8)
qa Tray
1 Screw (+BVTP 2.6 × 8)
qs Screw (+BVTP 2.6 × 8)
6 Wire (flat type)(CN721)
3 Wire (flat type)
(CN702)
8 Motor board
qd Address sensor board
2 Driver board
5 Remove the two solderings of motor.
7 Connector (CN722)
