Sony HCD-VX222 - MAIN BOARD, POWER AMP BOARD; VIDEO BOARD, BASE UNIT, BD BOARD

11
HCD-VX222

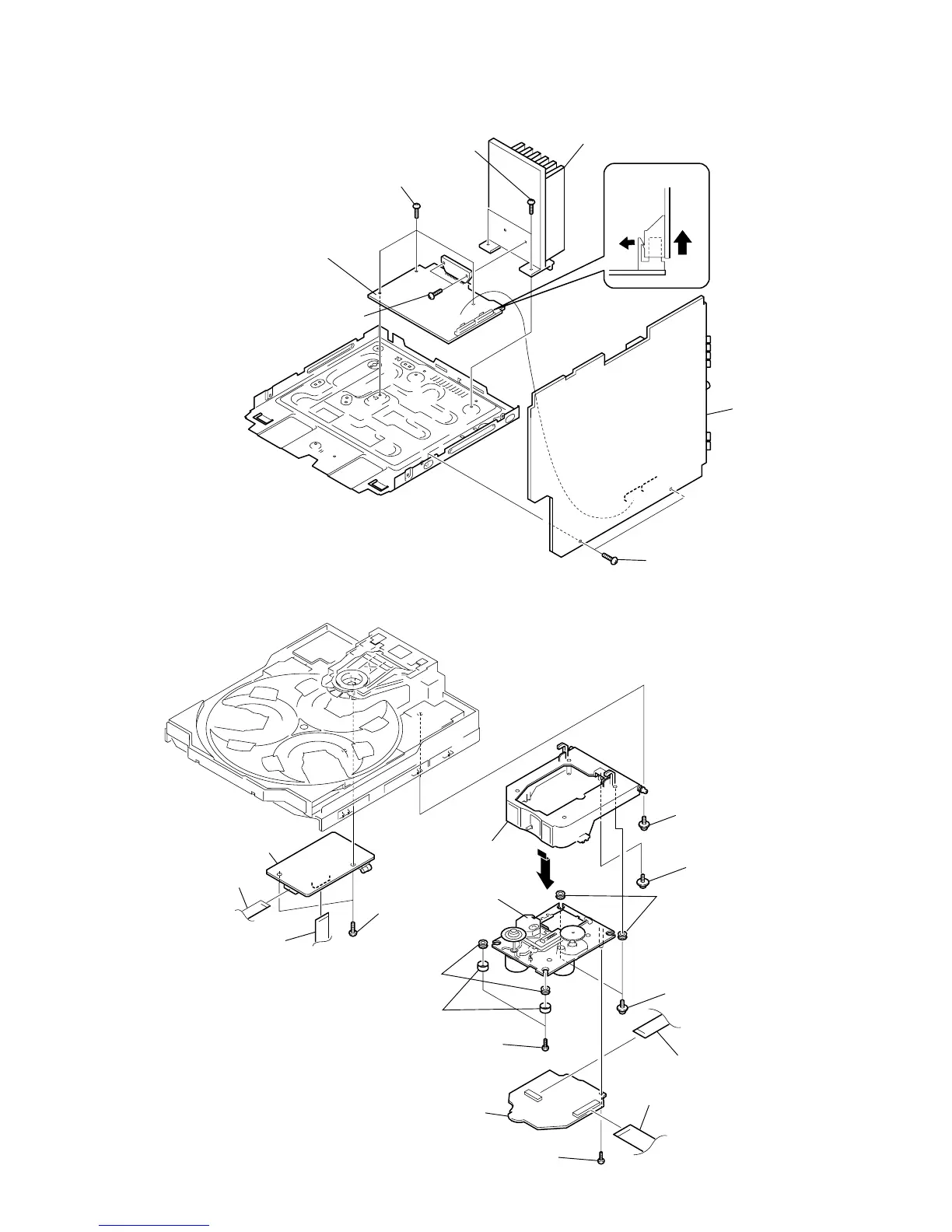

3-8. MAIN BOARD, POWER AMP BOARD
3-9. VIDEO BOARD, BASE UNIT, BD BOARD
4 Three screws (+BVTT 3 × 6)
6 Two screws (+BVTT 3 × 6)
7 Heat sink
3 Two screws (+BVTP 3 × 16)
1 Two screws (+BVTT 3 × 6)
2 Main boar
d
5 Power amp board
Main board
Base unit
qg
qd Two screws (+PTPWH M2.6
)
5 Screw (+PTPWH M2.6)
qf Screw (DIA. 12)
qa Two screws (+BVTP 2.6 × 8)
q; BD board
qh Two insulators
6 Holder (BU) assy
qh Two insulators
qs Two stoppers (BU)
7 Wire (flat type)(CN101)
8 Wire (flat type)(CN102)
9 Screw (+BVTP 2.6 × 8)
2 wire (flat type)
(CN502)
1 wire (flat type)
(CN502)
3 Screws
(+BVTP 2.6 × 8)
4 VIDEO board
