Sony HCD-VX222 - SUB TRANS BOARD, VIDEO OUT BOARD, BACK PANEL, POWER TRANSFORMER (TRANS BOARD)

10
HCD-VX222

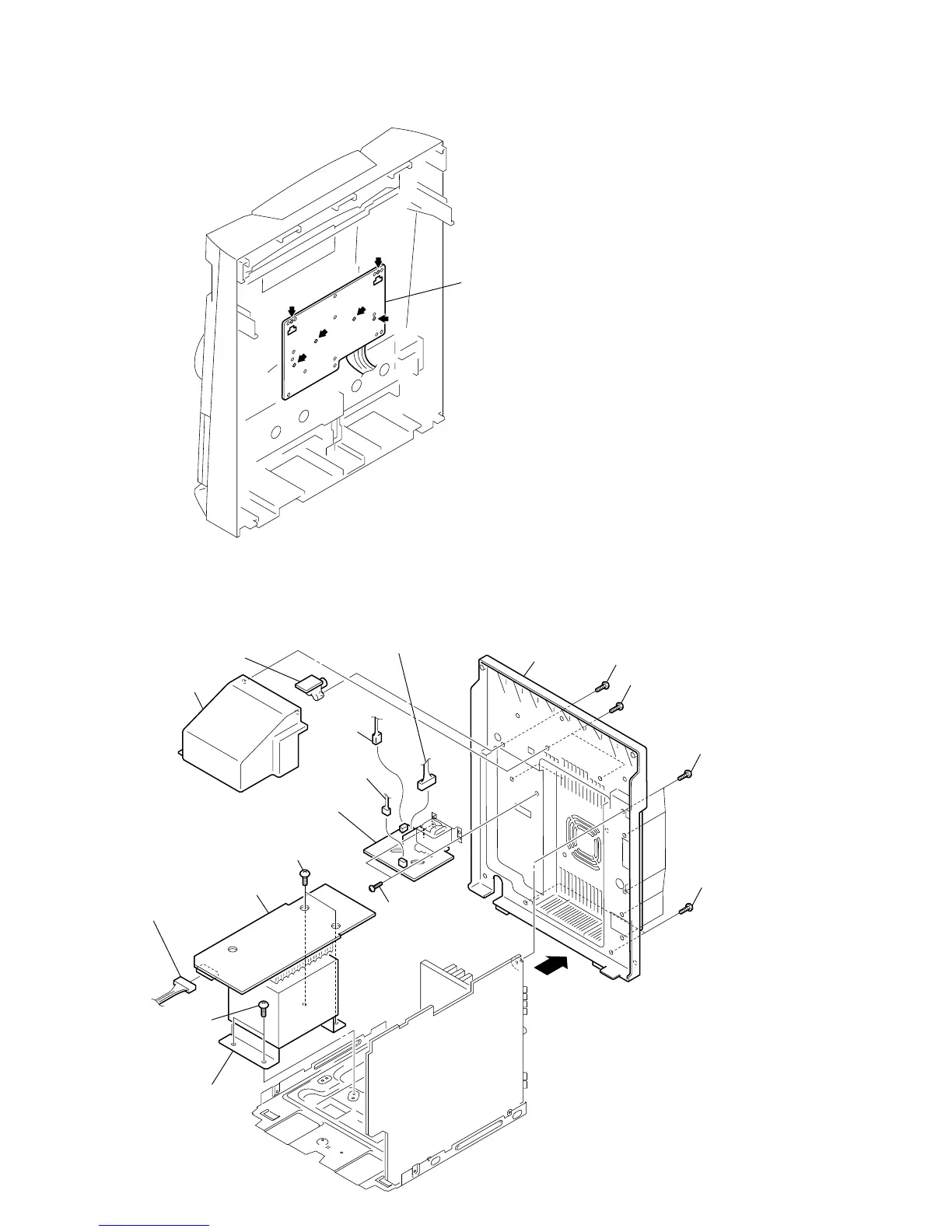

3-6. KEY BOARD
3-7. SUB TRANS BOARD, VIDEO OUT BOARD, BACK PANEL, POWER TRANSFORMER (TRANS BOARD)
Note: When attching the Key board,
refer to "Service Note" on page 4.
2 Key board
1 Cut the six melted-connection points with a cutting plier.
qf Two screws
(+BVTT 4
× 6)
qa Five screws
(+BVTP 3
× 10
)
q; Two screws
(+BVTT 3
× 6)
qs
1 Two screws
(+BVTP 3
× 10)
8 Screw (+BVTP 3 × 10)
Back panel
qg Two screws
(+BVTT 4
× 6)
qh Power transformer
(T911)
qd Connector (CN915)
3 Connector (CN2)
5 Connector
(CN903)
4 Connector
(CN901)
2 Cover (Duct)
9 Video out board
7 Sub trans
board
Trans board
6 Two screws
(+BVTP 3
× 10)
