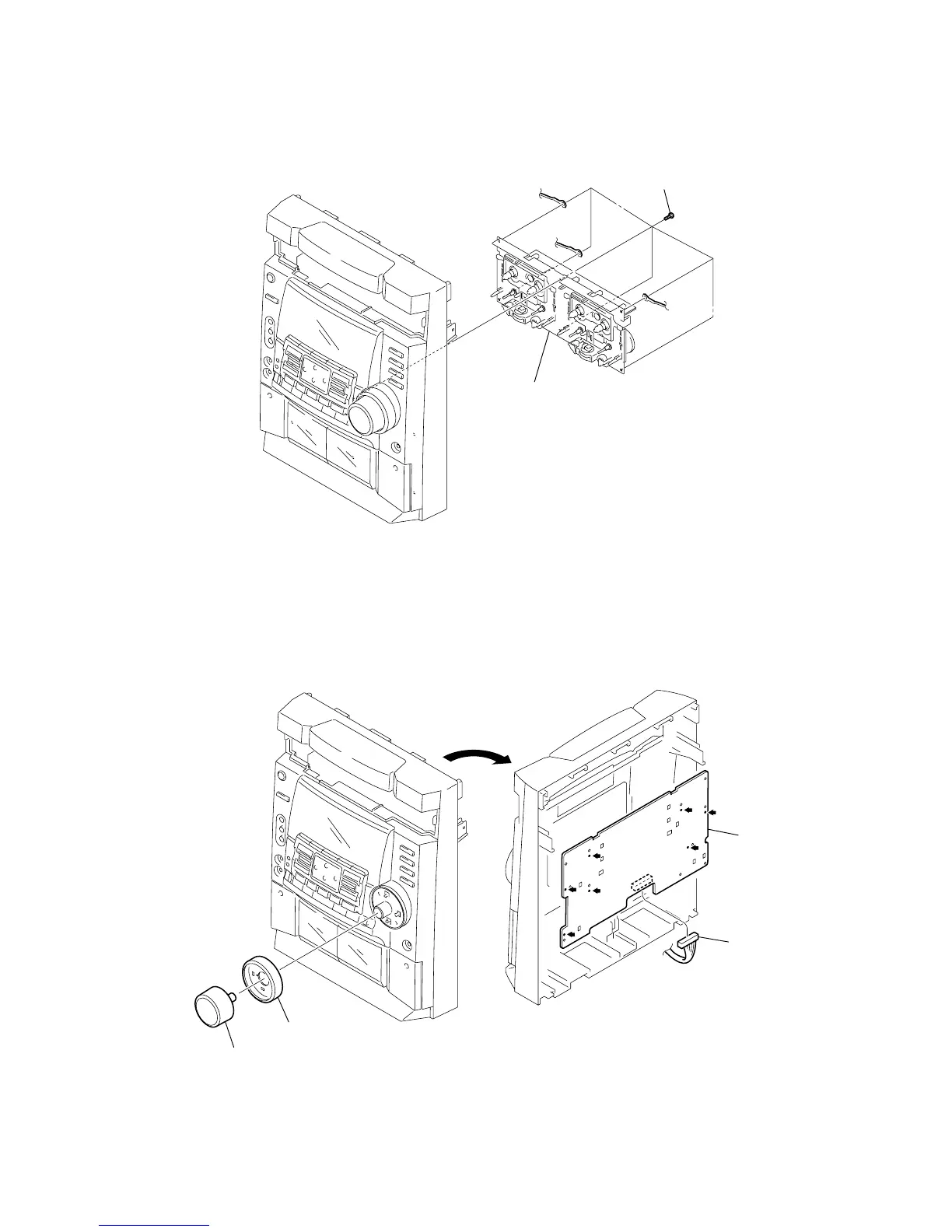

3-4. TAPE MECHANISM DECK
3-5. PANEL BOARD
1 Six screws
(+BVTP 2.6
× 8
)
2 Tape mechanism deck
1 Volume knob
2 Vol knob ring
4 Connector
(CN712)
Note: When attching the panel board,
refer to "Service Note" on page 4.
6 Panel board
3
5 Cut the seven melted-connection points with a cutting plier.
