HCD-VX333

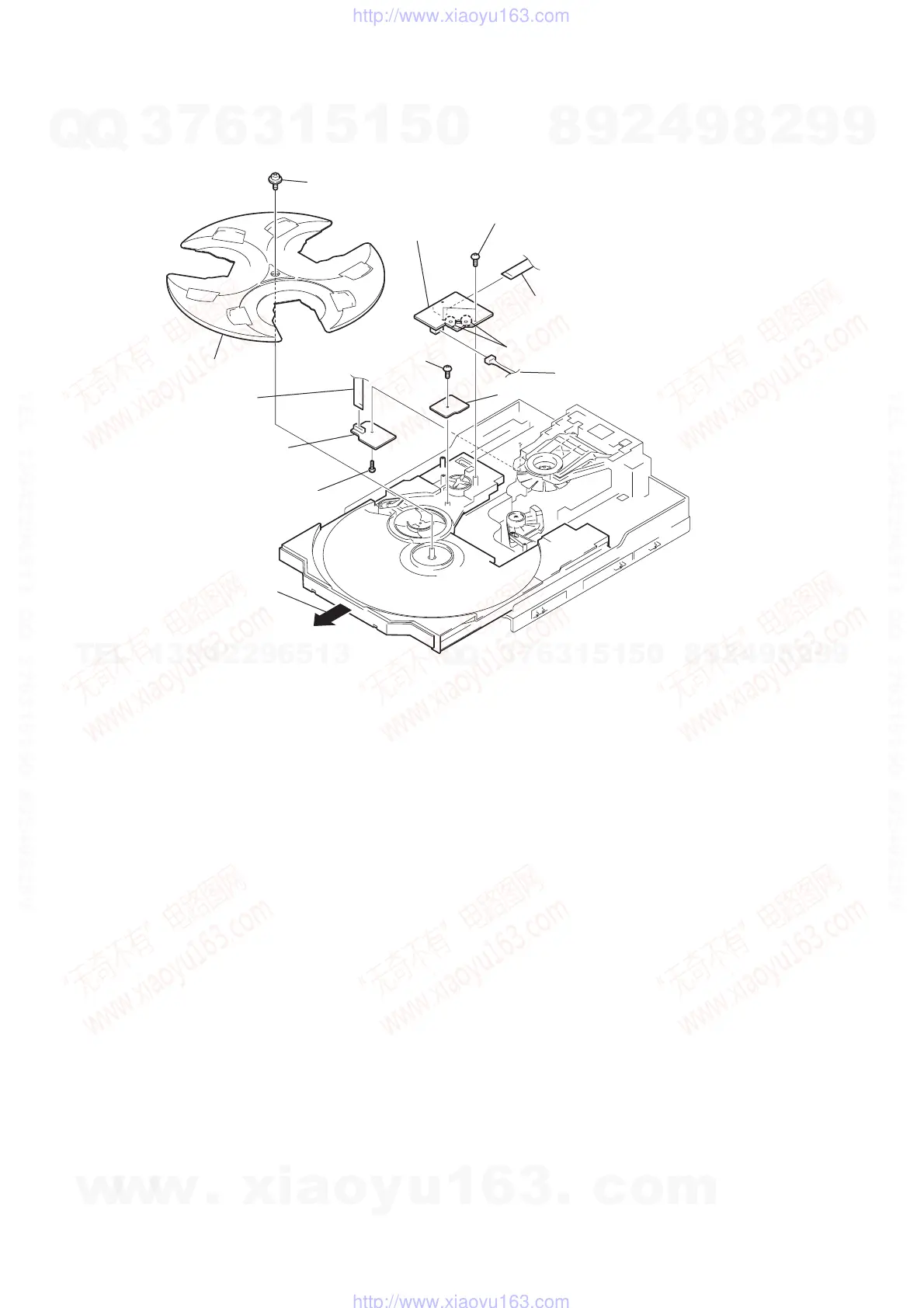

3-10. DRIVER BOARD, MOTOR BOARD AND ADDRESS SENSOR BOARD
9 Pull-out the disc tray.
4 Two screws (+BVTP 2.6 × 8)
q; Screw (+PTPWH 2.6 × 8)
qa Tray
1 Screw (+BVTP 2.6 × 8)
qs Screw (+BVTP 2.6 × 8)
6 Wire (flat type) 8p (CN721)
3 Wire (flat type)
8p (CN702)
8 MOTOR board
qd ADDRESS SENSOR board
2 DRIVER board
5 Remove the two solderings of motor.
7 Connector 4p (CN722)
