SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
MY : Malaysia model.
SP : Singapore model.
TH : Thai model.
EA : Saudi Arabia model.
JE : Tourist model.
IA : Indonesian model.
TW : Taiwan model.
52
HCD-VX333
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.

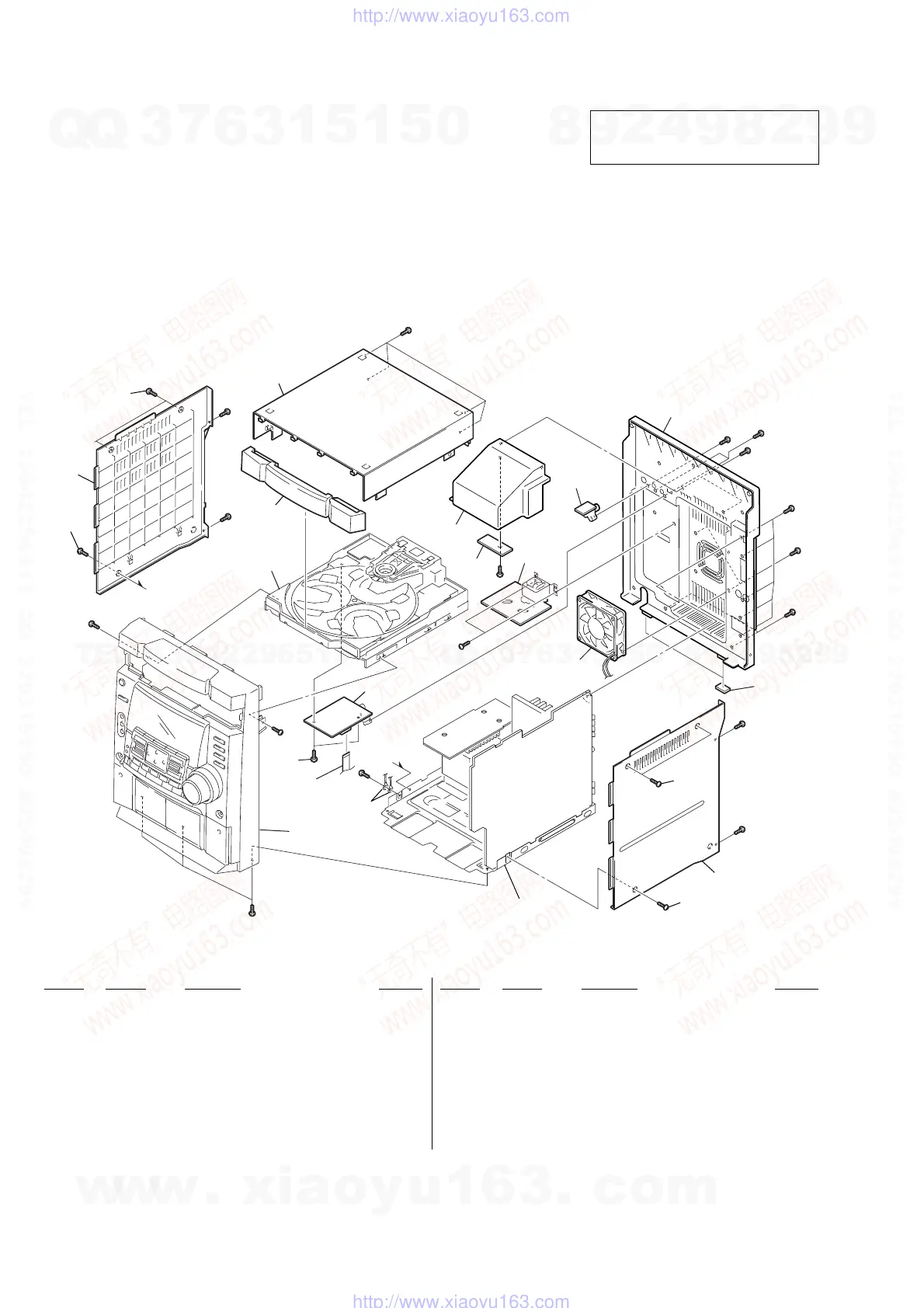

7-1. MAIN SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
CD mechanism deck
section
#1
#1
#1
#1
#5
#1
#1
#1
#1
#1
#1
#1
#2
#1
#5
#1
a
a
#2
4
3
12
1
1
2
2
5
Front Panel
section
Main board section
M961
not
supplied
6
7
8
9
10
11
13
14
15
1 3-363-099-01 SCREW (CASE 3 TP2)
2 3-363-099-41 SCREW (CASE 3 TP2)
3 4-224-549-01 CASE (SIDE-L)
4 4-234-009-71 CD DOOR
5 4-224-550-01 CASE (TOP)
6 4-227-984-11 COVER (DUCT)
7 1-681-442-11 SENSOR BOARD
8 1-681-445-11 SUB TRANS BOARD
9 1-681-441-11 VIDEO OUT BOARD
10 4-234-091-31 PANEL BACK (E,EA,IA,JE,MY,SP,TW)
10 4-234-091-91 PANEL BACK (TH)
11 4-225-252-01 CUSHION (FOOT)
12 X-4952-994-1 CASE (R) ASSY, SIDE
13 A-4726-022-A VIDEO CD BOARD, COMPLETE
14 1-792-246-11 WIRE (FLAT TYPE) (23 CORE)
15 4-951-620-01 SCREW (2.6X8), +BVTP
M961 1-763-072-11 FAN, DC
