19
HCD-VX333
SECTION 6
DIAGRAMS
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. p: pF. 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
•
¢
: internal component.
• C : panel designation.
Note on Printed Wiring Boards:
• X : parts extracted from the component side.
• b : Pattern from the side which enables seeing.
• Indication of transistor.
• A : B+ Line.
• B : B– Line.
• H : adjustment for repair.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
no mark : FM
( ) : CD
[ ] : TAPE
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : FM
f : AM
E : PB (DECK A)
d : PB (DECK B)
G : REC (DECK B)
J : CD
c : digital out
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
B
These are omitted.
CE
Q
• Abbreviation
MY : Malaysia model.
SP : Singapore model.
TH : Thai model.
EA : Saudi Arabia model.
JE : Tourist model.
IA : Indonesian model.
TW : Taiwan model.

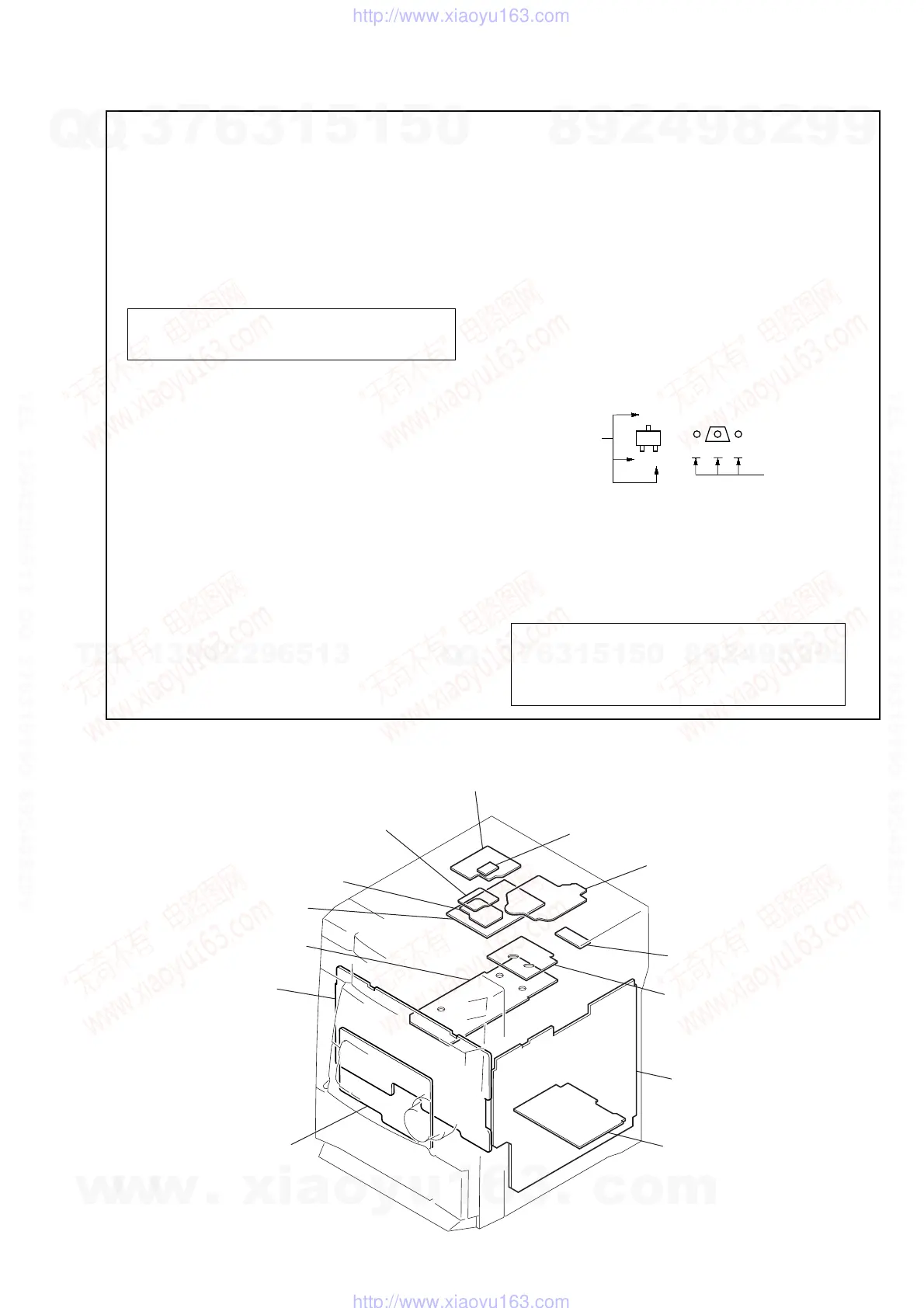

6-1. CIRCUIT BOARD LOCATION
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
• Abbreviation
MY : Malaysia model.
SP : Singapore model.
TH : Thai model.
EA : Saudi Arabia model.
JE : Tourist model.
IA : Indonesian model.
TW : Taiwan model.
TRANS board
MOTOR board
ADDRESS SENSOR board
DRIVER board
VIDEO CD board
SENSOR board
BD board
VIDEO OUT board
SUB TRANS board
MAIN board
POWER AMP board
PANEL board
KEY board
Caution:
Pattern face side: Parts on the pattern face side seen from
(Side B) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Side A) the parts face are indicated.
