54
HCD-VX333

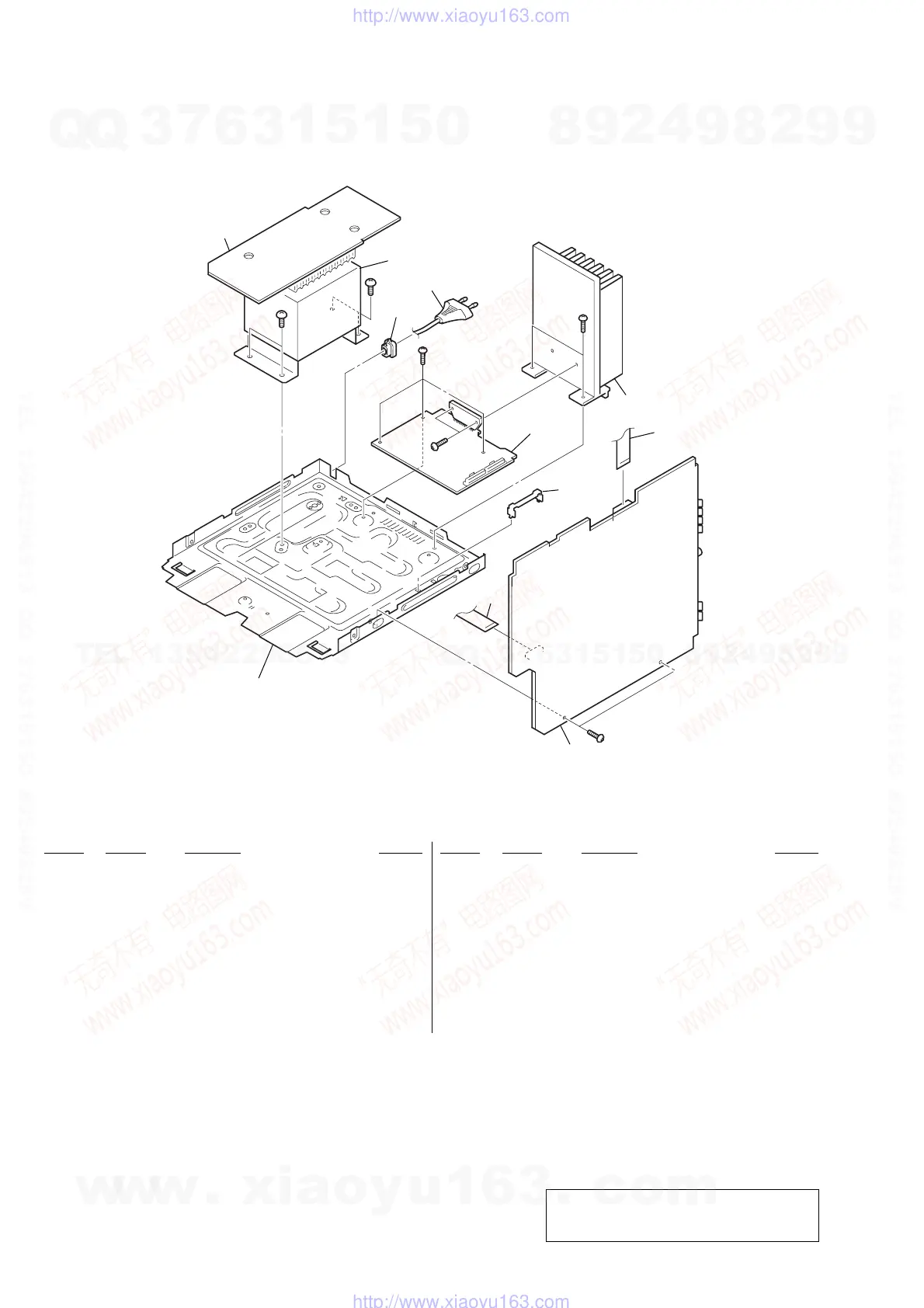

7-3. MAIN BOARD SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
#2
#2
#4
#3
#2
#3
103
107
106
101
102
104
105
T911
not supplied
not supplied
108
101 1-773-049-11 WIRE (FLAT TYPE) (17 CORE)
102 A-4725-705-A MAIN BOARD, COMPLETE (E,IA,MY,SP)
102 A-4725-709-A MAIN BOARD, COMPLETE (EA)
102 A-4725-711-A MAIN BOARD, COMPLETE (TW)
102 A-4726-010-A MAIN BOARD, COMPLETE (TH)
102 A-4726-458-A MAIN BOARD, COMPLETE (JE)
* 103 4-988-533-01 HOLDER, PWB
104 1-769-986-11 WIRE (FLAT TYPE) (13 CORE)
105 1-681-444-11 TRANS BOARD
106 3-703-244-00 BUSHING (FBS001), CORD (EA,MY,SP,TW)
106 3-703-571-11 BUSHING (S) (4516), CORD (TH)
106 4-966-266-01 BUSHING (S) (FBS002), CORD (E,IA,JE)
107 A-4725-707-A POWER AMP BOARD, COMPLETE
(E,EA,IA,JE,MY,SP)
107 A-4725-712-A POWER AMP BOARD, COMPLETE (TW)
107 A-4726-012-A POWER AMP BOARD, COMPLETE (TH)
0108 1-777-071-81 CORD, POWER (EA,MY,SP,TW)
0108 1-791-901-11 CORD, POWER (E,IA,JE,TH)
0T911 1-437-222-11 TRANSFORMER, POWER (E,EA,IA,JE,MY,SP,TW)
0T911 1-437-228-11 TRANSFORMER, POWER (TH)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
