HCD-VX333

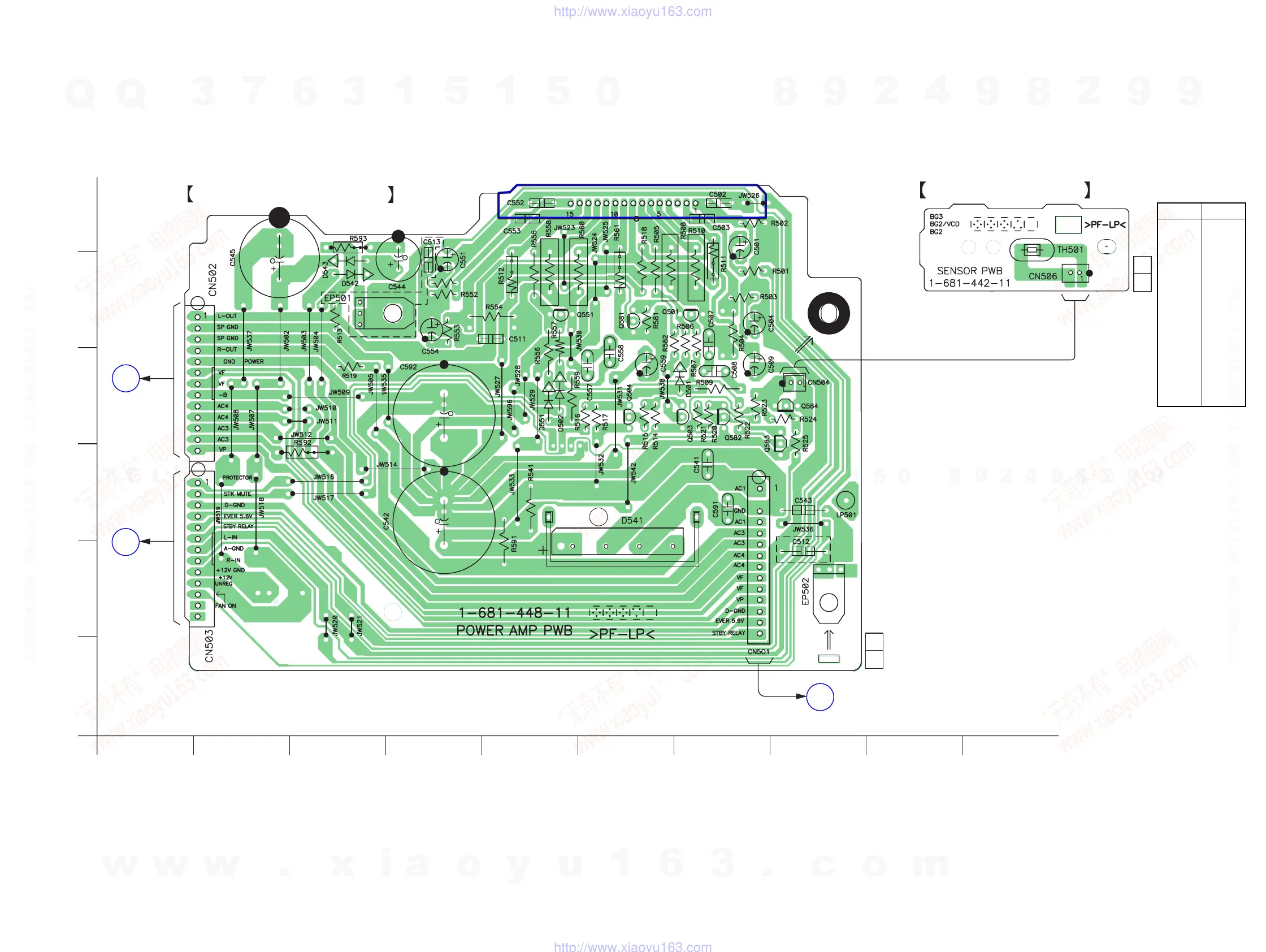

6-10. PRINTED WIRING BOARD POWER AMP SECTION
• See page 19 for Circuit Boards Location.
IC501
TO
TRANS
BOARD
CN915
(Page 42)
G
E
TO
MAIN
BOARD
CN403
(Page 24)
D
TO
MAIN
BOARD
CN402
(Page 24)
_
+
POWER AMP BOARD
SENSOR BOARD
11
(11)
1-681-442-
11
(11)
1-681-448-
E
E
E
E
E
E
E
E
13
13
13
1
12
A
B
C
D
E
F
345678910
TW
TW
2
Ref. No. Location
D501 C-7
D502 C-5
D541 D-6
D542 B-3
D543 B-3
D551 C-5
IC501 A-6
Q501 B-7
Q503 C-7
Q504 C-6
Q551 B-5
Q581 B-6
Q582 C-7
Q583 D-8
Q584 C-8
• Semiconductor
Location
