Sony HCD-VX333 - Key Board Diagrams

3535
HCD-VX333

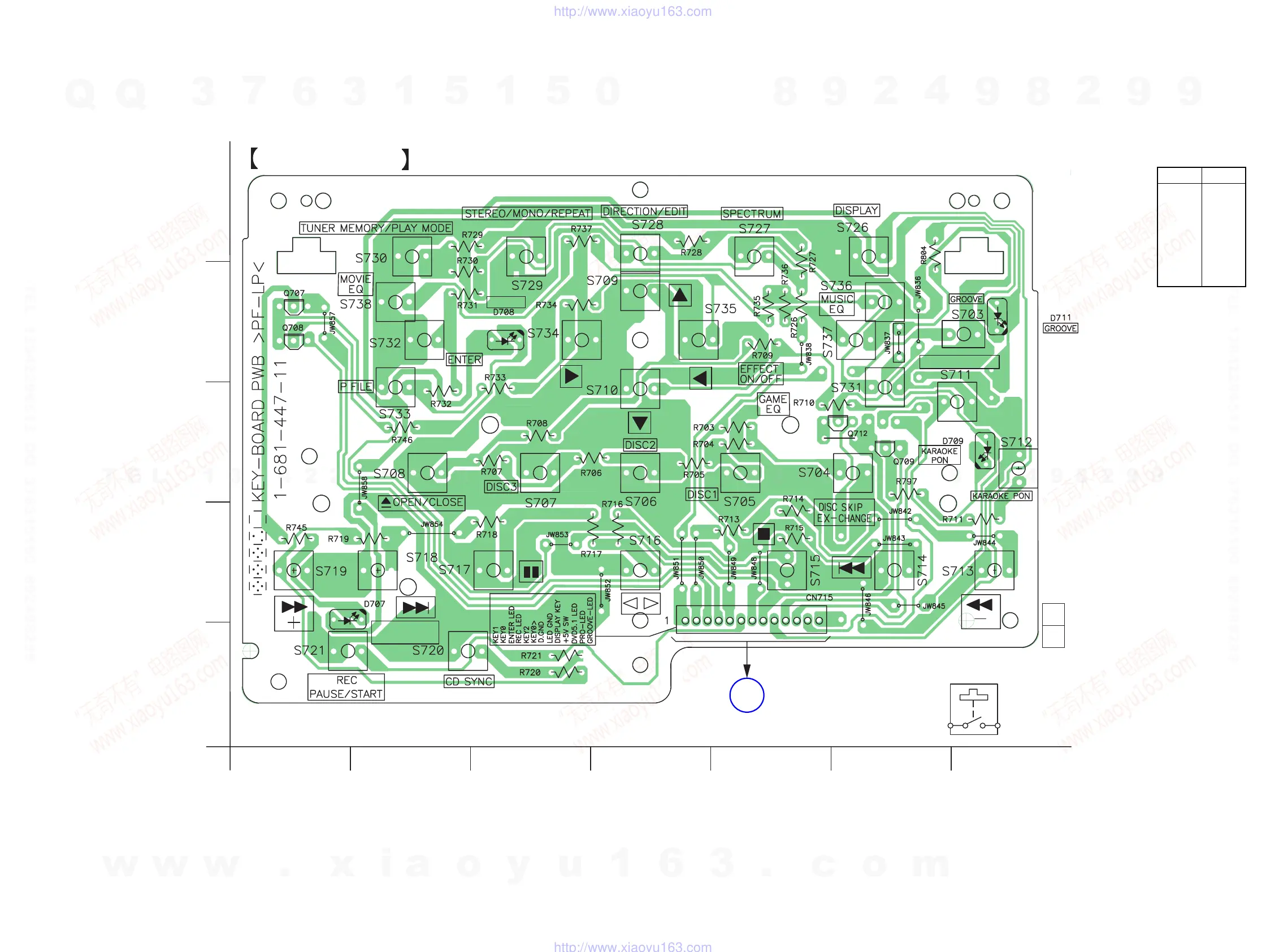

6-14. PRINTED WIRING BOARD KEY BOARD
• See page 19 for Circuit Boards Location.
E
E
E
E
KEY BOARD
1-681-447-
11
(11)
S703-721,726-738
13
12
A
B
C
D
E
34567
PICTURE EFECT
ENTER
REC
PAUSE/START
H
TO
PANEL BOARD
CN712
(Page 33)
Ref. No. Location
D707 D-1
D708 B-3
D709 C-7
D711 B-7
Q707 B-1
Q708 B-1
Q709 C-6
Q712 C-6
• Semiconductor
Location
