– 12 –

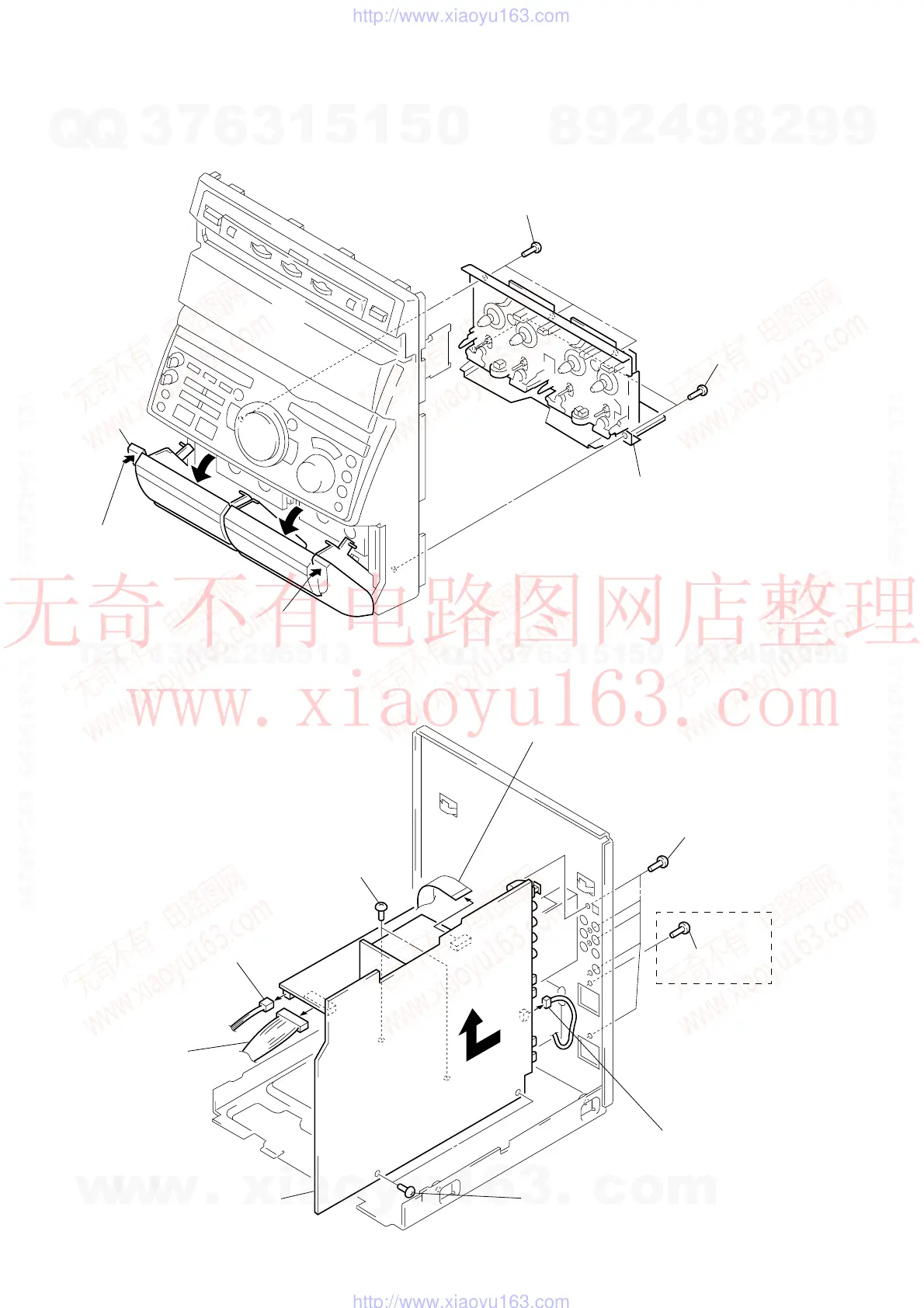

TAPE MECHANISM DECK SECTION (TCM-230AWR2)
MAIN BOARD
1
Push the cassette lid.
4
tape mechanism deck section
(TCM-230AWR2)
1
Push the cassette lid.
2
Open two
cassette lids.
3
two screws
(BVTP2.6
×
8)
3
three screws
(BVTP2.6
×
8)
5
five screws
(BVTP3
×
8)
5
screw
(BVTP3
×
8)
4
two screws
(BVTP3
×
8)
7
connector
(CN403)
3
two screws
(BVTP3
×
8)
2
connector
(CN953)
2
connector
(CN952)
6
Remove the MAIN board
in the direction of the arrow.
1
wire (flat type)
13 core (15 cm): EXCEPT Thai
15 core (15 cm): Thai
(CN371)
( )
VX7A
