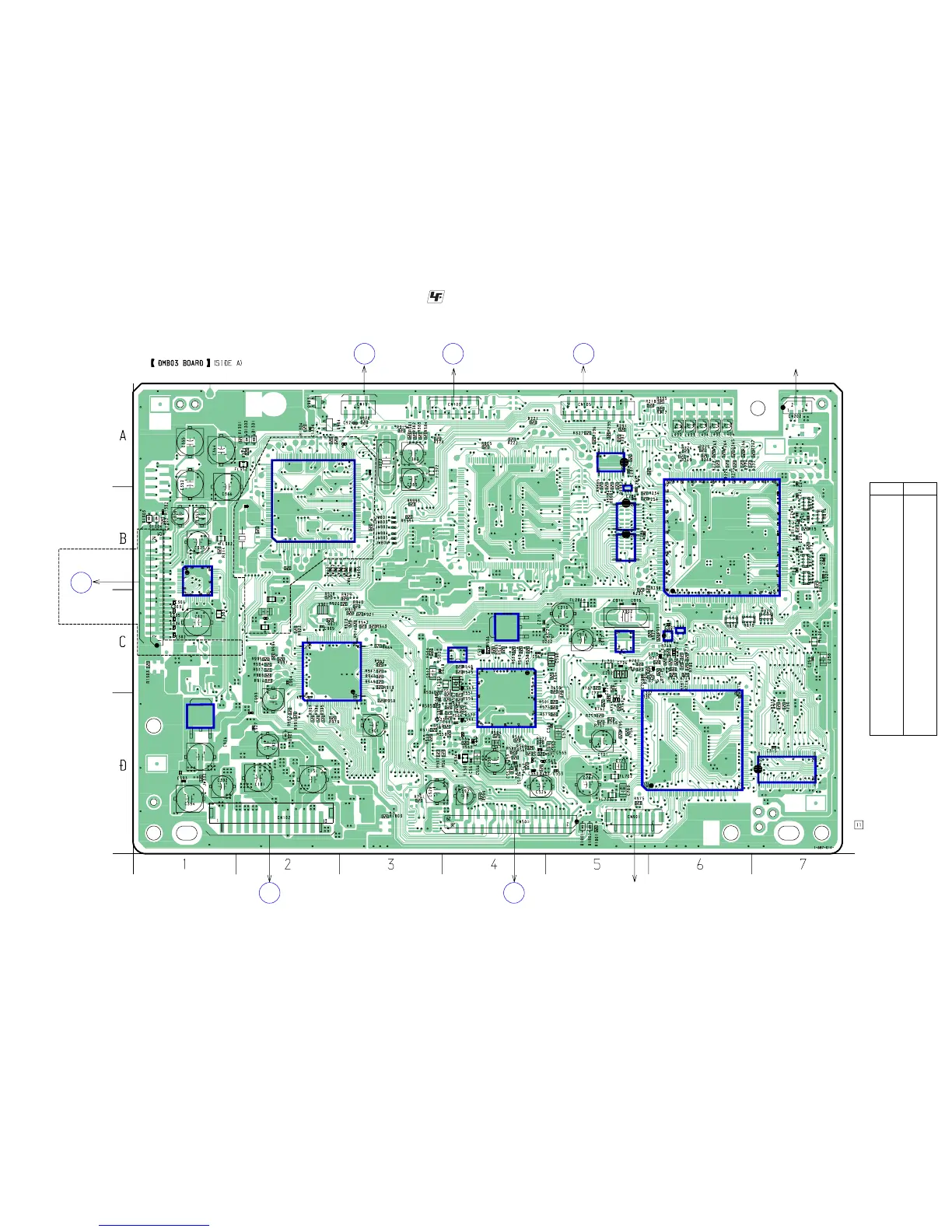

4–4. Printed Wiring Board – DMB03 Board (Side A) – • See page 23 for Circuit Boards Location.
• : Uses unleaded solder.
IC701
IC207
IC509
IC901
IC302
IC601
IC906
IC904
IC902
IC211
IC503
IC258
IC256
IC259
IC255
IC216
IC393
TO
MAIN BOARD
CN101
(Page 42)
B
1
1
1
36
37
72
73108
109
144
7
11
17
2
26
NOT USED
TO
MAIN BOARD
CN102
(Page 42)
D
TO
VIDEO BOARD
CN801
(Page 53)
E
TO
4CH-VOL BOARD
CN303
(Page 43)
F
TO
REGULATOR BOARD
CN506
(Page 49)
C
TO
RF BOARD
CN002
(Page 29)
A
FOR CHECK
3
1
R626
(EXCEPT AEP,UK,
RU,E2)
(AEP,UK,RU,AUS)
25P(AEP,UK,RU,AUS)
21P(EXCEPT AEP,UK,RU,AUS)
C650
C612
C613
C696
C397
C395
R618
R607
R619
R612
R198
R285
R613
FL601
C651
CN107
FL602
X601
31
R574
(AEP,UK,RU,AUS)
• Semiconductor
Location
Ref. No. Location
D202 C-4
D901 D-2
D1301 A-2
D1302 A-2
D1303 B-1
D1304 B-1
D1801 D-5
D1802 D-5
IC207 B-6
IC211 C-4
IC216 D-7
IC255 B-5
IC256 B-5
IC258 B-5
IC259 A-5
IC302 B-1
IC393 D-1
IC503 C-4
IC509 C-4
IC601 B-2
IC701 D-6
IC901 C-2
IC902 C-6
IC904 C-6
IC906 C-5
Q903 A-2
Q904 A-2
