SECTION 5
EXPLODED VIEWS
70
HCD-WZ8D
NOTE:
• -XX, -X mean standardized parts, so they may have
some differences from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
•Abbreviation
AUS: Australian model
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E15 : 220-240V AC area in E model
EA : Saudi Arabia model
KR : Korean model
MY : Malaysia model
PH : Philippines model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
RU : Russian model
SP : Singapore model
TH : Thai model

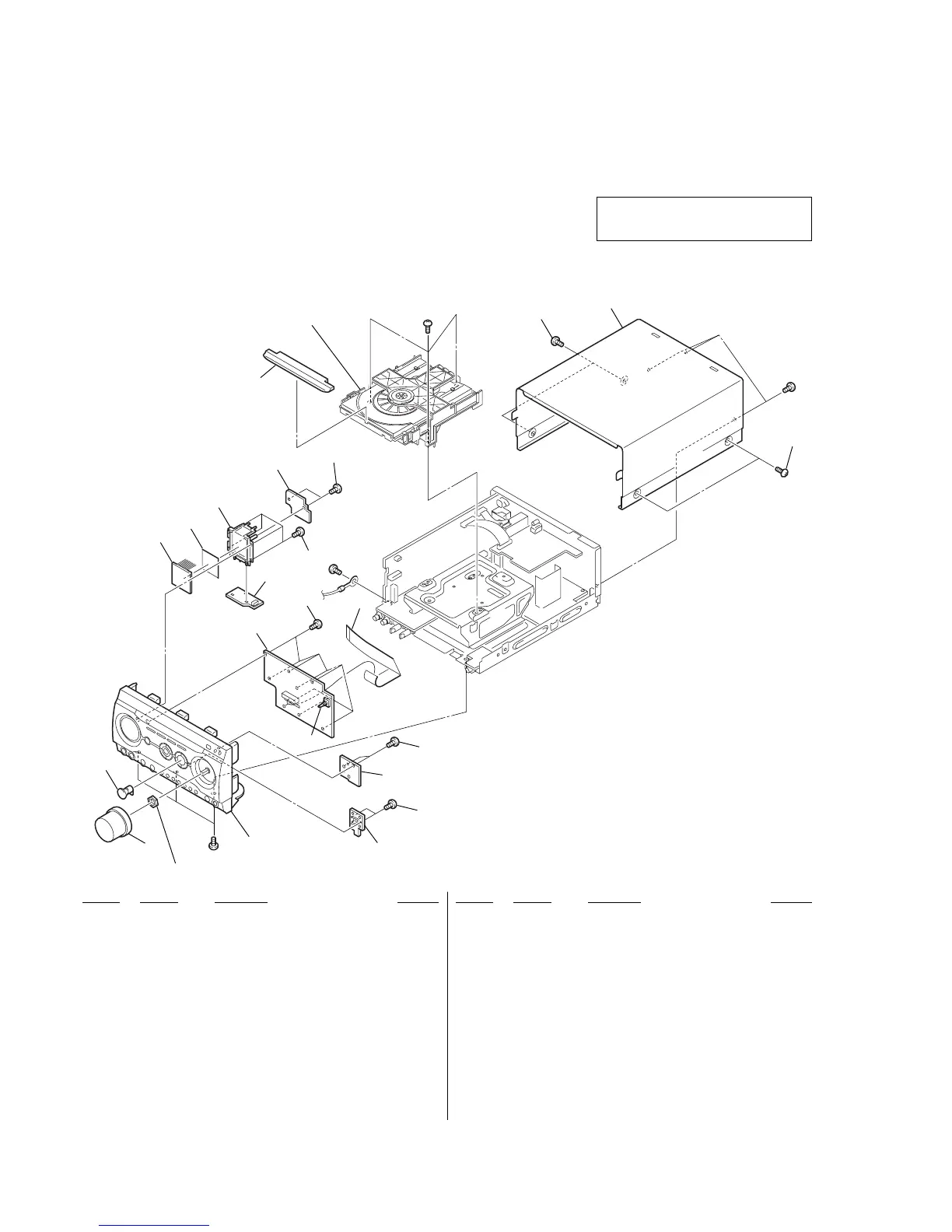

5-1. Front Panel Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 4-244-435-01 KNOB (VOLUME)
2 4-244-423-01 BUTTON (CURSOR)
3 X-4955-363-1 PANEL ASSY, FRONT (AEP, UK)
3 X-4955-377-1 PANEL ASSY, FRONT (E2)
3 X-4955-390-1 PANEL ASSY, FRONT
(E3, E15, EA, MY, SP, KR, TH, PH, AUS)
3 X-4955-723-1 PANEL ASSY, FRONT (RU)
4 1-687-205-11 ENTER-SW BOARD
5 4-951-620-01 SCREW (2.6X8), +BVTP
6 1-687-207-11 CD-TC BOARD
7 A-4732-210-A PANEL BOARD, COMPLETE (EXCEPT TH)
7 A-4734-616-A PANEL BOARD, COMPLETE (TH)
8 1-773-185-11 WIRE (FLAT TYPE) (23CORE)
9 1-687-204-11 BACK LIGHT BOARD
10 4-244-431-02 SHEET (LCD)
11 4-244-430-01 HOLDER (LCD)
12 A-4732-447-A LCD BOARD, COMPLETE (EXCEPT TH)
12 A-4734-602-A LCD BOARD, COMPLETE (TH)
13 4-244-434-11 PANEL, LOADING
14 3-363-099-11 SCREW (CASE 3 TP2)
15 4-244-441-11 CASE
LCD201 1-805-136-11 DISPLAY PANEL, LIQUID CRYSTAL
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
1
2
3
4
5
6
DVD mechanism section
(CDM77B-DVBU20)
LCD201
#1
#1
including S601
S601
#1
5
5
5
5
7
9
8
11
10
12
13
#1
14
14
15
To Next Page
