9
HCD-WZ8D

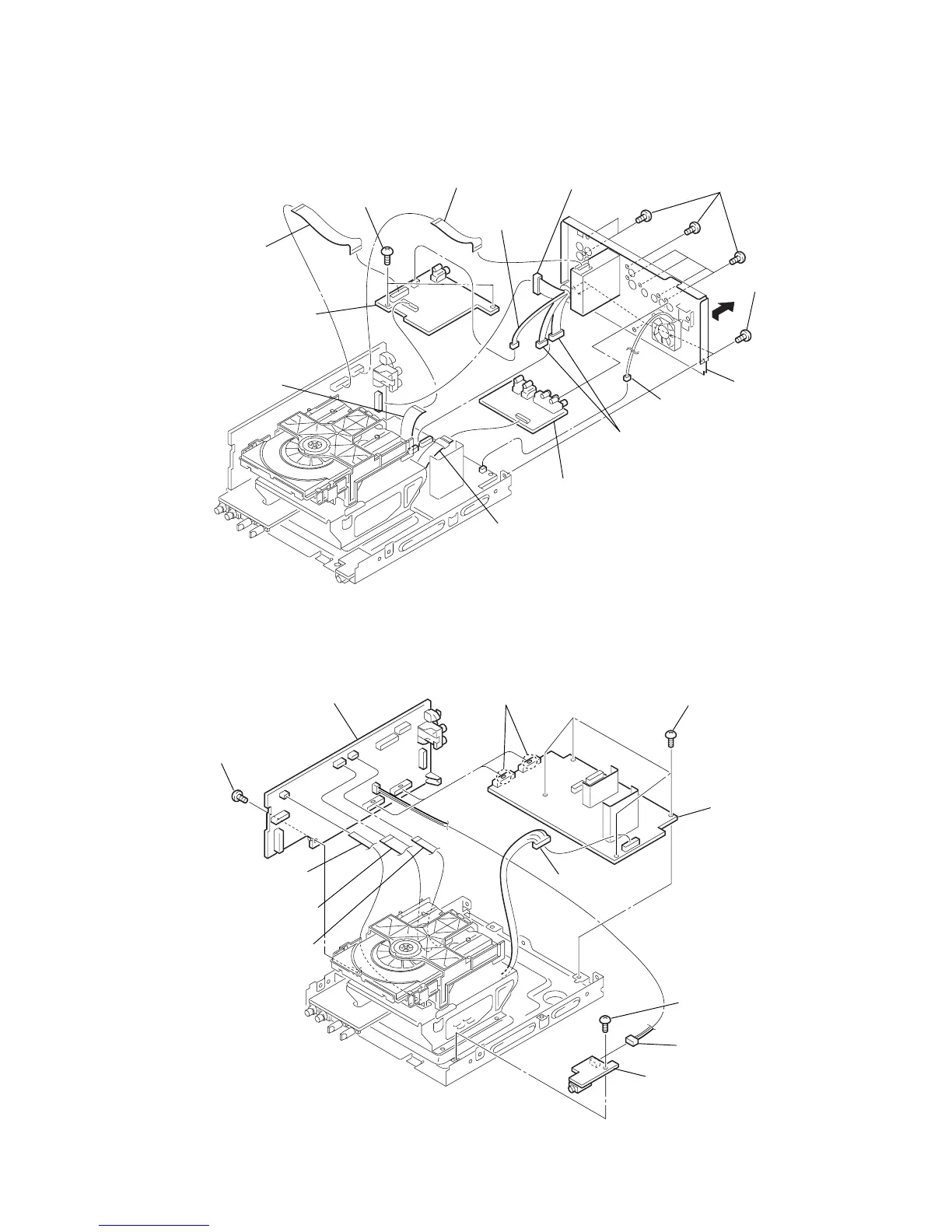

2-4. 4CH-VOL Board, VIDEO Board
2-5. MAIN Board, REGULATOR Board, HP AMP Board
5 cord connector
(CN302)
qd cord connector
(CN107)
qs cord connector
(CN503,CN504)
qa connector
(CN507)
qf back panel
2 wire (flat type)
(11/15 core)
1 wire (flat type)
(23/25 core)
6 wire (flat type)
(25/21 core)
9 wire (flat type)
(17 core)
8 4CH-VOL board
4 four screws
(+BVTP 3
× 8)
7 two screws
(+BVTP 3
× 8)
3 seven screws
(+BVTP 3
× 8)
q; VIDEO board
q; two claws
qa MAIN board
qs REGULATOR board
1 connector
(CN601)
7 connector
(CN109)
6 wire (flat type)
(5 core) (CN103)
5 wire (flat type)
(11 core) (CN102)
4 wire (flat type)
(7 core) (CN101)
8 screw
(+BVTP 3
× 8)
9 four screws
(+BVTP 3
× 8)
2 screw
(+BVTP 3
× 8)
3 HP AMP board
