HCD-WZ8D

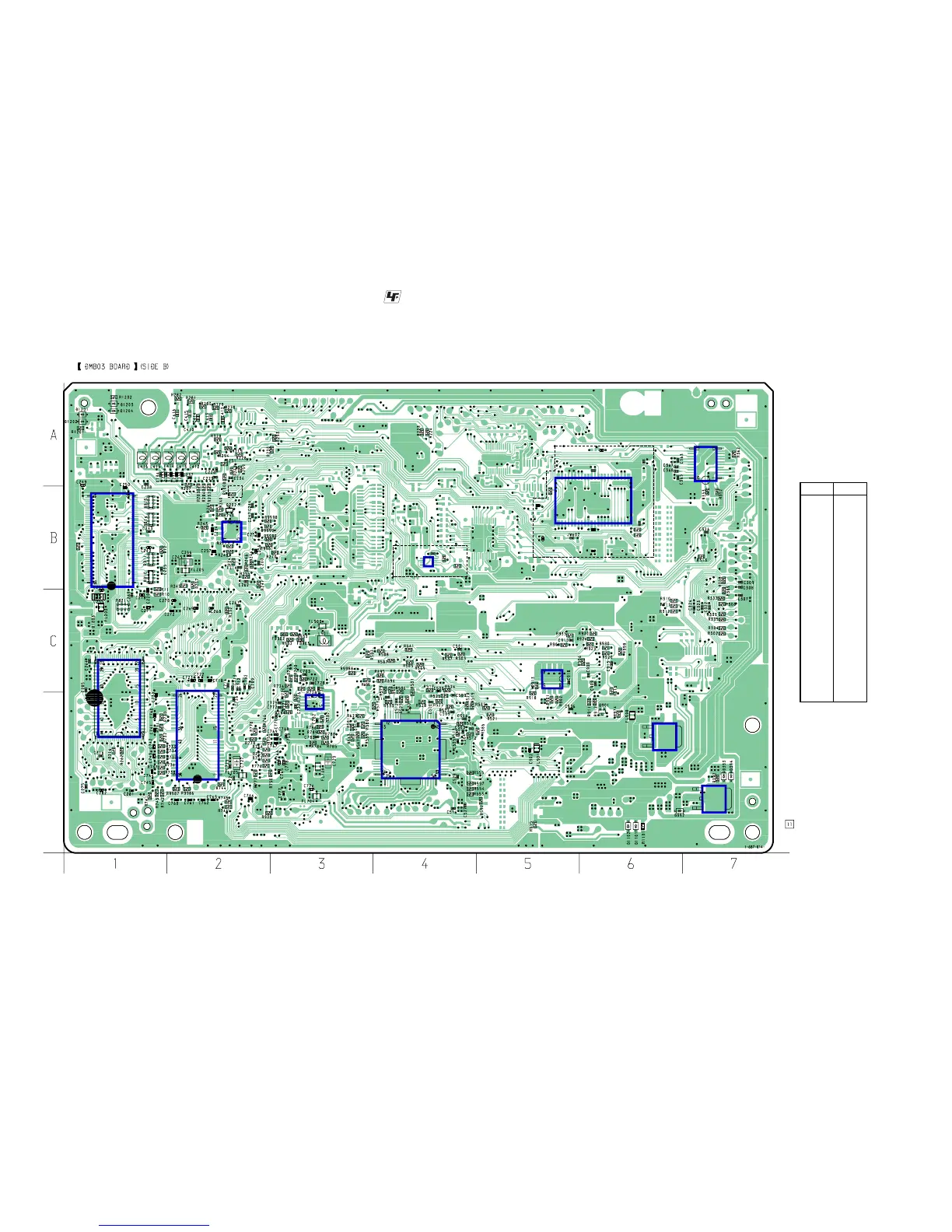

4–5. Printed Wiring Board – DMB03 Board (Side B) – • See page 23 for Circuit Boards Location.
• : Uses unleaded solder.
IC392
IC907
IC903
IC602
IC352
IC204
IC501
IC703
IC706
IC206
IC203
IC252
44
23
22
1
1
3
1
3
D
R301
R239
R727
R288
C289
R1001
C617
C607
C615
C609
C610
(EXCEPT AEP,UK,RU,E2)
R616
C616
C614
R620
C619
R617
E
(AEP,UK,RU,AUS)
(AEP,UK,RU,AUS)
E
• Semiconductor
Location
Ref. No. Location
D392 D-6
D393 D-7
D394 D-7
D1101 D-6
D1102 D-6
D1201 A-1
D1202 A-1
D1203 A-1
D1204 A-1
IC203 B-1
IC204 B-2
IC206 C-1
IC252 B-4
IC352 A-7
IC392 D-7
IC501 D-4
IC602 B-6
IC703 D-3
IC706 D-2
IC903 C-5
IC907 D-7
Q202 B-2
Q901 D-6
