73
HCD-WZ8D
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
401 4-243-742-01 TRAY (AU)
402 3-080-484-01 DRIVING GEAR
403 3-080-485-01 PULLEY GEAR
404 3-080-478-01 BELT
405 3-080-477-01 CHUCK CAM
406 4-243-741-01 BASE (AU), LOADING
407 3-080-476-01 YOKE
408 3-080-483-01 CHUCK PLATE
409 4-243-743-01 HOLDER (DBU1)
410 3-053-847-31 INSULATOR
411 1-689-264-11 PWB, FLEXIBLE
0 412 1-477-263-11 PICKUP UNIT (TDP022W)
413 A-4728-690-A RF BOARD, COMPLETE
414 4-981-923-01 SCREW (M), STEP
415 1-775-265-11 WIRE (FLAT TYPE)(29 CORE)(EXCEPT TH)
416 1-827-178-11 WIRE (FLAT TYPE)(5 CORE)
M001 1-763-967-11 MOTOR, DC (LOADING)
401
402
403
404
405
not supplid
416
409
410
411
410
410
412
413
406
408
407
414
414
414
415
M001

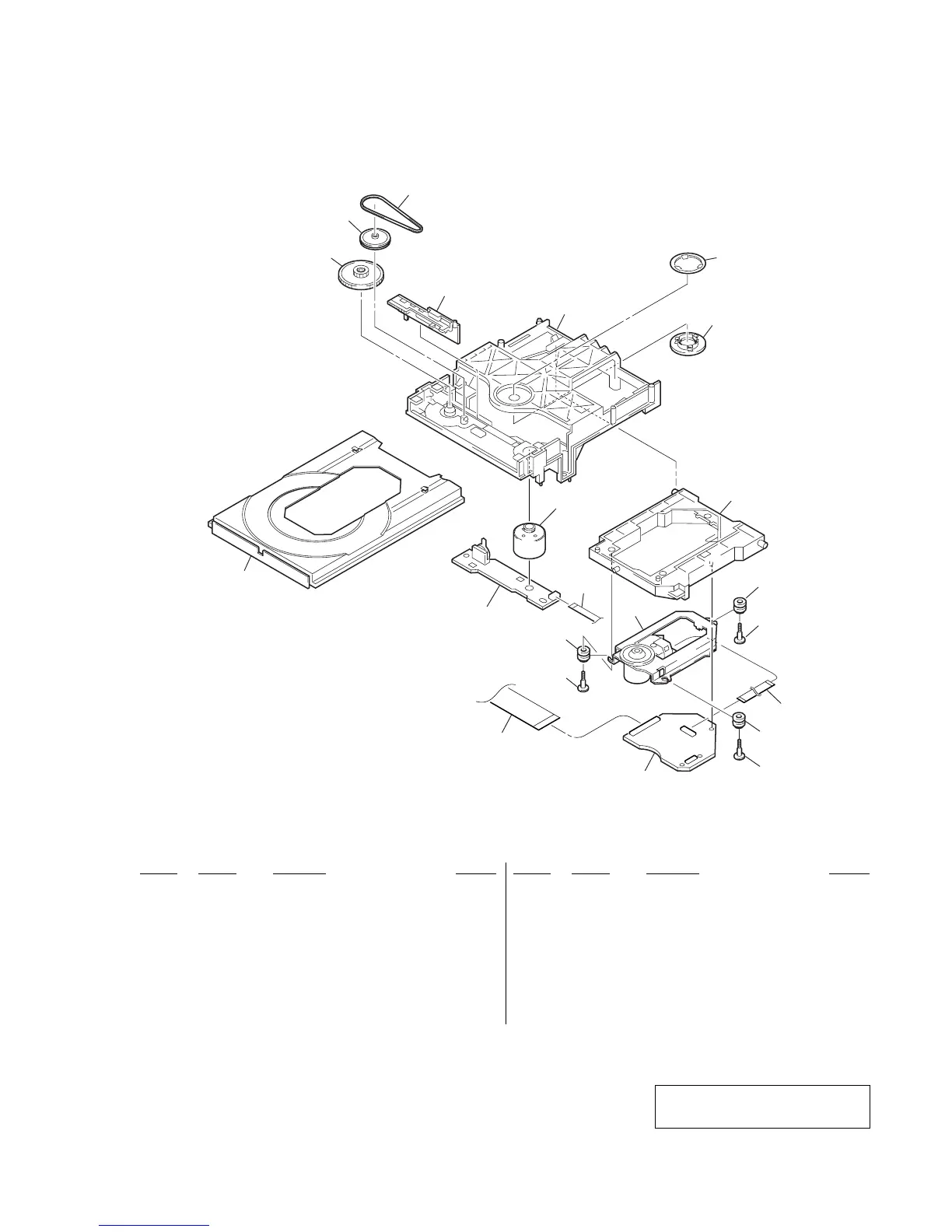

5-3. DVD Mechanism Section
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
To Next Page
