HCD-WZ8D

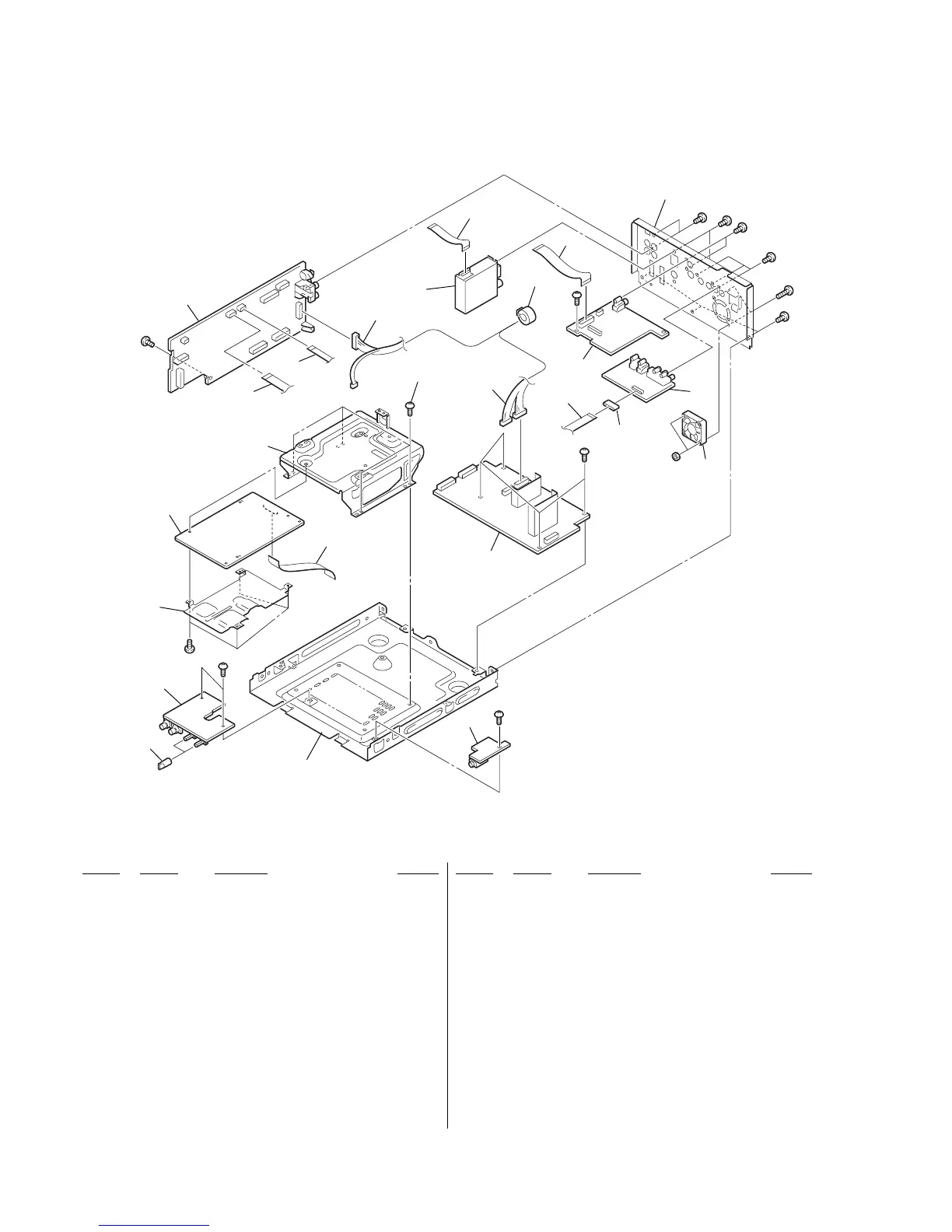

Chassis Section (2/2)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
60 1-693-604-11 TUNER (FM/AM)(AEP, UK)
60 1-693-605-11 TUNER (FM/AM)(KR)
60 1-693-627-11 TUNER (FM/AM)(RU)
61 1-769-938-11 WIRE (FLAT TYPE)(11 CORE)(EXCEPT AEP, UK)
61 1-773-002-11 WIRE (FLAT TYPE)(15 CORE)(AEP, UK)
62 1-773-182-11 WIRE (FLAT TYPE)(23 CORE)
(EXCEPT AEP, UK, RU, AUS)
62 1-773-212-11 WIRE (FLAT TYPE)(25 CORE)
(AEP, UK, RU, AUS)
63 1-500-657-11 CORE, FERRIET
64 1-827-012-11 CORD (WITH CONNECTOR) 20P
65 A-4732-203-A 4CH-VOL BOARD, COMPLETE (AEP, UK, RU)
65 A-4732-217-A 4CH-VOL BOARD, COMPLETE (E2)
65 A-4732-323-A 4CH-VOL BOARD, COMPLETE
(E3, E15, EA, MY, SP, KR, PH)
65 A-4732-332-A 4CH-VOL BOARD, COMPLETE (AUS)
65 A-4734-603-A 4CH-VOL BOARD, COMPLETE (TH)
66 1-792-108-11 WIRE (FLAT TYPE)(17 CORE)(TH)
66 1-827-401-11 WIRE (FLAT TYPE)(17 CORE)(EXCEPT TH)
67 A-4732-205-A VIDEO BOARD, COMPLETE (EXCEPT TH)
67 A-4734-606-A VIDEO BOARD, COMPLETE (TH)
68 1-787-056-11 FAN, DC
69 A-4732-208-A REGULATOR BOARD, COMPLETE (EXCEPT TH)
69 A-4734-612-A REGULATOR BOARD, COMPLETE (TH)
70 1-687-208-11 HP AMP BOARD
71 1-500-657-11 XXXXXXXXXX
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-873-09 SCREW +BVTT 3X10 (S)
#3 7-684-023-04 N 3, TYPE 2
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
#3
#1
51
52
53
54
55
60
61
62
63
64
57
56
58
59
not supplied
#1
#1
#1
#1
#1
#
