7
HCD-WZ8D

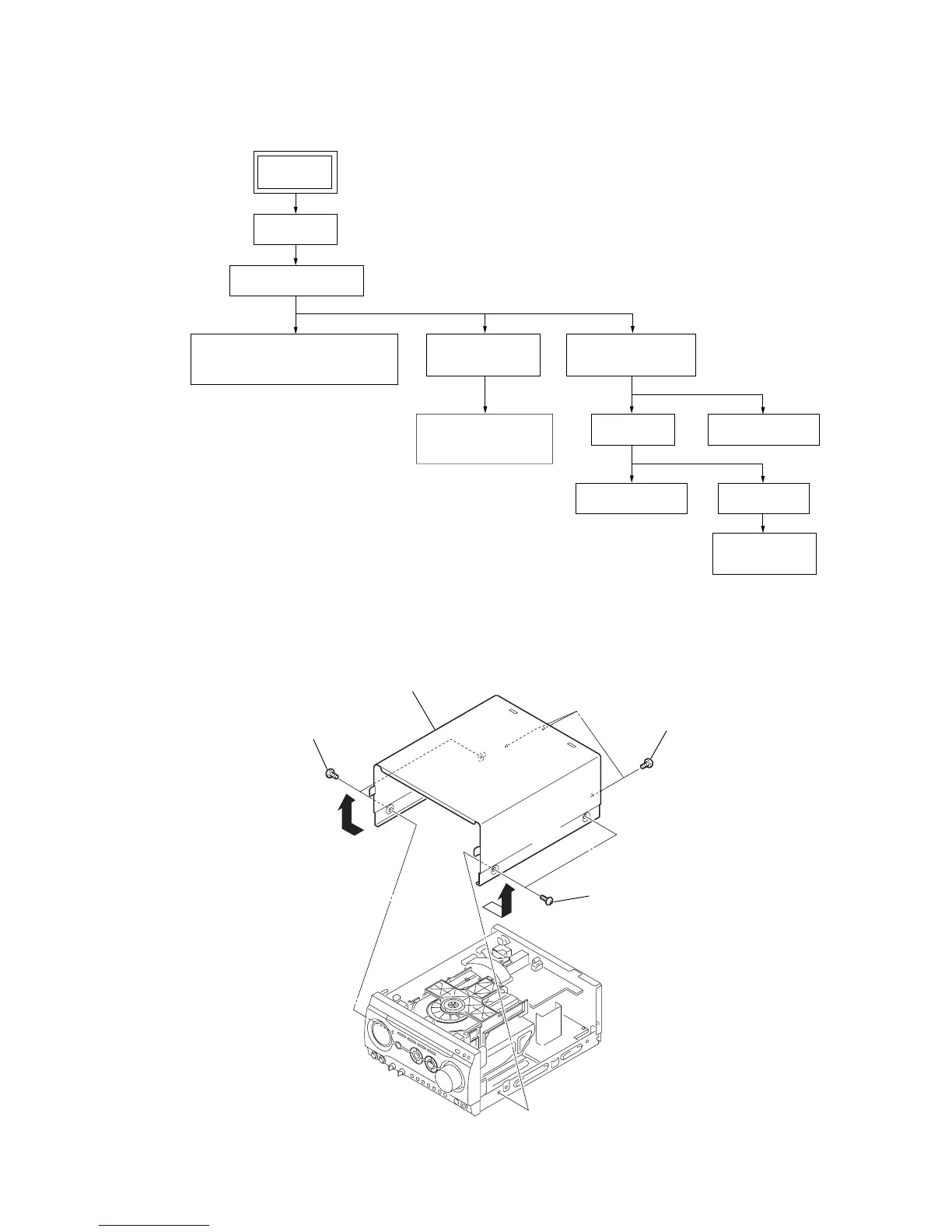

SECTION 2
DISASSEMBL
Y
•T
he equipment can be removed using the f
ollowing procedure.
SET
MS-128 BOARD
BASE UNIT
DMB03 BOARD
FRONT P
ANEL ASSY
CASE
PANEL BOARD, CD-TC SW BOARD,
ENTER-SW BOARD,
BACK LIGHT BOARD, LCD BOARD
4CH-V
OL BOARD
,
VIDEO BOARD
MAIN BOARD
,
REGULA
TOR BOARD
,
HP AMP BOARD
D
VD MECHANISM
(CDM77B-D
VBU20)
TRA
Y (A
U)
PICK-UP UNIT
(TDP022W)
Note :
Follo
w the disassembly procedure in the numerical order giv
en.
2-1.
Case
1
three screws
(+BVTP 3
×
8)
2
two screws
(case 3 TP2)
4
case
3
two screws
(case 3 TP2)
6
8
Table of Contents
Default Chapter
2
Table of Contents
2
1 General
4
Setting the Clock
4
Hooking up the System
6
2 Disassembly
7
Case
7
Front Panel Assy
8
PANEL Board, CD-TC-SW Board, ENTER-SW Board, BACK LIGHT Board
8
LCD Board
8
4CH-VOL Board, VIDEO Board
9
MAIN Board, REGULATOR Board
9
HP AMP Board
9
DVD Mechanism (CDM77A-DVBU20)
10
DMB03 Board
10
MIC Board
11
Tray (AU)
11
Board
12
Base Unit
12
MS-128 Board
12
Pick-Up Unit (TDP022W)
13
3 Test Mode
14
4 Diagrams
23
Block Diagrams - RF Servo Section
25
Video Section
26
Audio Section
27
Main Section
28
Printed Wiring Board - RF Board
29
Schematic Diagram - RF Board
30
Printed Wiring Board - DMB03 Board (Side A)
31
Printed Wiring Board - DMB03 Board (Side B)
32
Schematic Diagram - DMB03 Board (1/9)
33
Schematic Diagram - DMB03 Board (2/9)
34
Schematic Diagram - DMB03 Board (3/9)
35
Schematic Diagram - DMB03 Board (4/9)
36
Schematic Diagram - DMB03 Board (5/9)
37
Schematic Diagram - DMB03 Board (6/9)
38
Schematic Diagram - DMB03 Board (7/9)
39
Schematic Diagram - DMB03 Board (8/9)
40
Schematic Diagram - DMB03 Board (9/9)
41
Printed Wiring Board - Main Section
42
Schematic Diagram - Main Section (1/2)
43
Schematic Diagram - Main Section (2/2)
44
Printed Wiring Board - PANEL Board
45
Schematic Diagram - PANEL Board
46
Printed Wiring Board - Lcd/Switch Section
47
Schematic Diagram - Lcd/Switch Section
48
Printed Wiring Board - REGULATOR Board
49
Schematic Diagram - REGULATOR Board
50
Printed Wiring Board - 4CH-VOL Board
51
Schematic Diagram - 4CH-VOL Board
52
Printed Wiring Board - VIDEO/MIC Board
53
Schematic Diagram - VIDEO/MIC Board
54
IC Block Diagrams
55
IC Pin Function Description
61
5 Exploded Views
70
Front Panel Section
70
Chassis Section
71
DVD Mechanism Deck Section
73
6 Electrical Parts List
74
