Sony HCD-XGR99AV - Page 8

8
HCD-XGR99AV

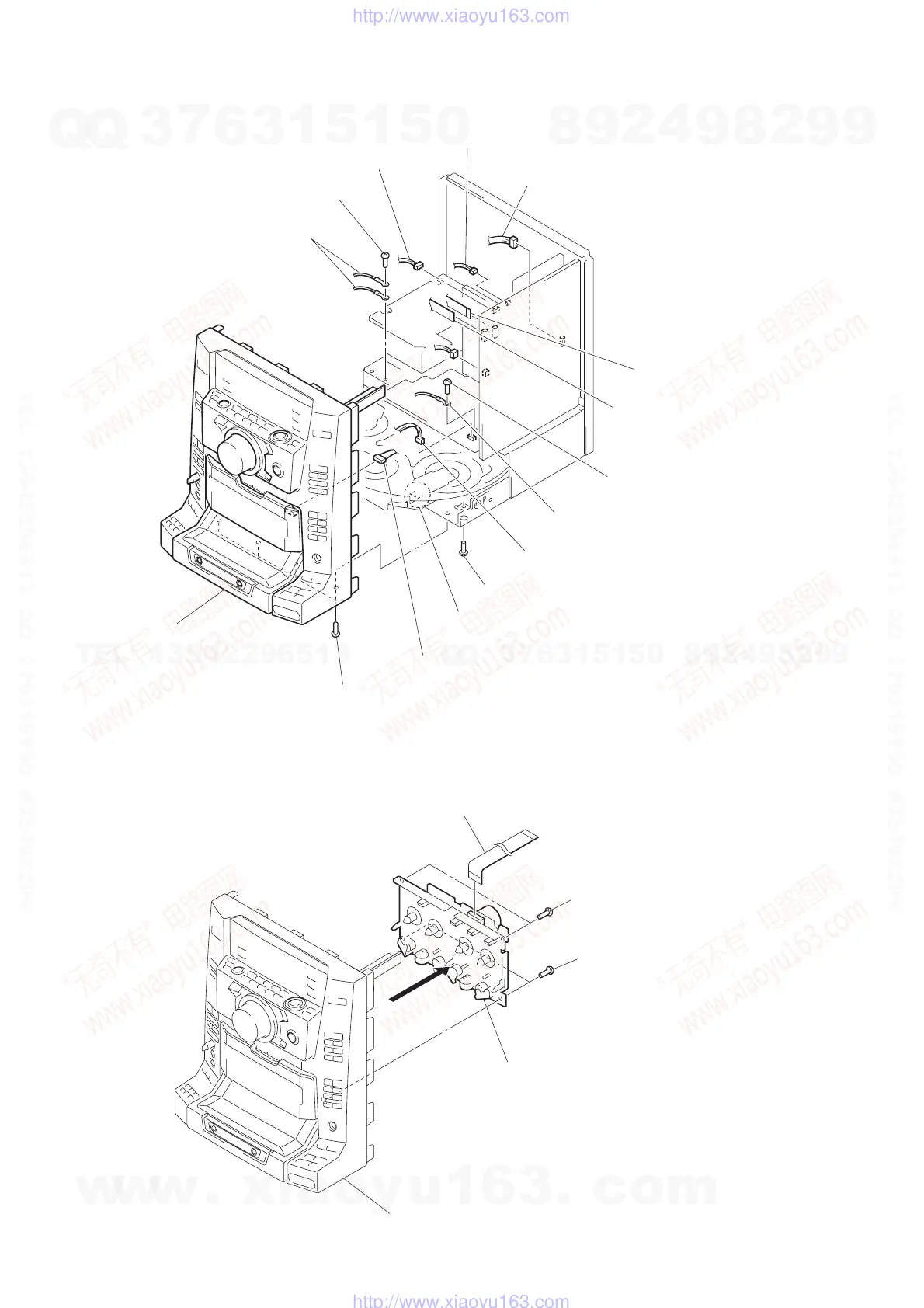

3-2. FRONT PANEL SECTION
3-3. TAPE MECHANISM DECK
5 Connector (CN722)
1 Flat type wire (CN371
)
2 Flat type wire (CN431)
9 Screw (BVTP 3x8)
0 Lug
6 Connector (CN806)
3 Connector (CN311)
7 Screw (BVTP 3x8)
qs Screw (BVTP 3x8)
qd Four screws (BVTP 3x8)
qg Front panel section
qf Claw
qa Connector (B deck)
8 Lugs
4 Connector (CN903)
1 Flat type wire (13 core)
2 Two screws (BVTP 2.6x8)
3 Two screws (BVTP 2.6x8)
5 Tape mechanism deck
Front panel
4
