9
HCD-XGR99AV

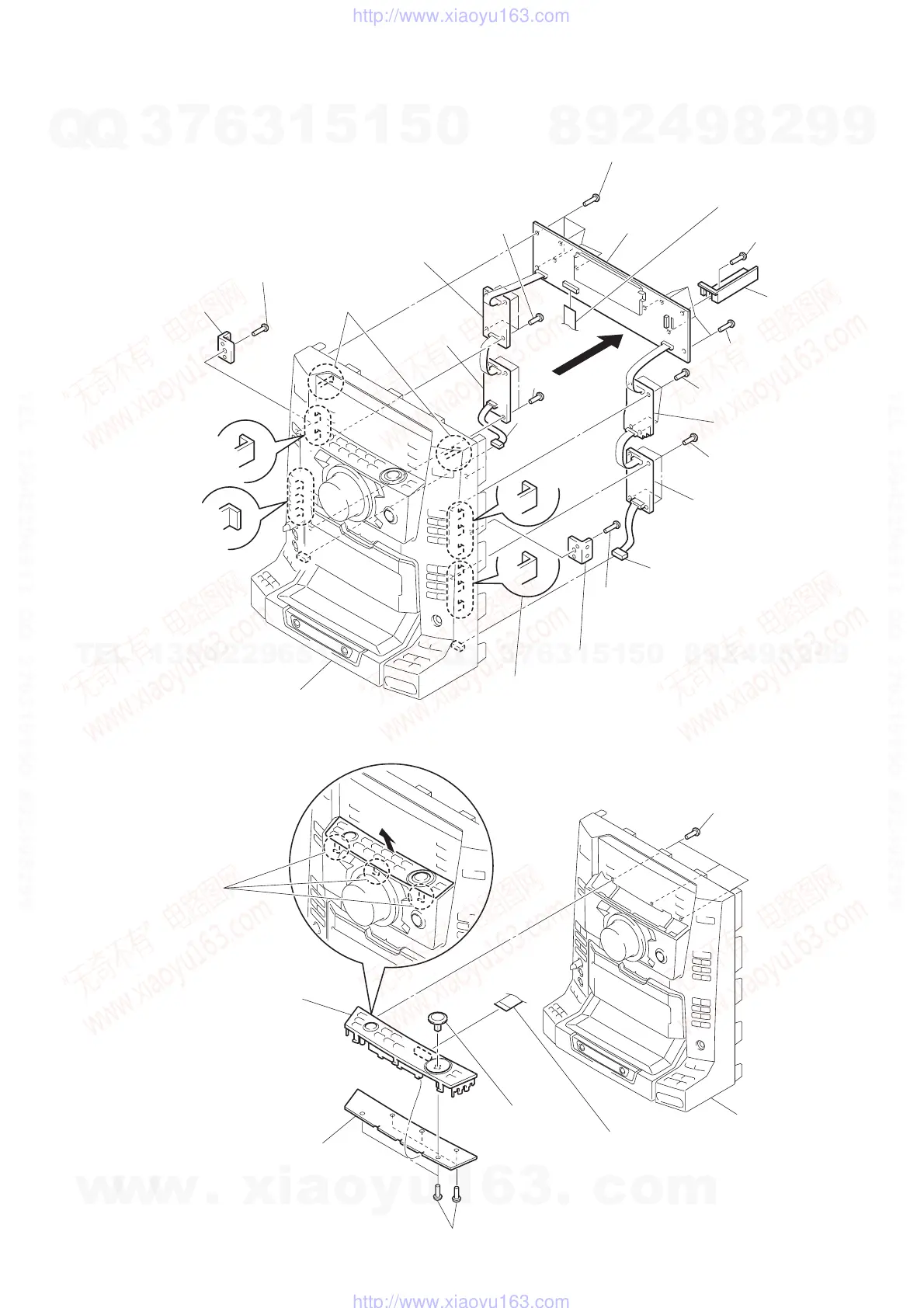

3-4. PANEL FL BOARD, GAME BOARD, TC-A BOARD, TUNER BOARD, TC-B BOARD
2 Bracket (TA)
1 Screw (BVTP 2.6x8)
qh Two claws
qd Four screws
(BVTP 2.6x8)
qs Four screws
(BVTP 2.6x8)
w; GAME board
8 Screw (BVTP 2.6x8)
0 Four screws (BVTP 2.6x8)
qf Four screws (BVTP 2.6x8)
qg Four screws
(BVTP 2.6x8)
3 Screw (BVTP 2.6x8)
4 Bracket (TA)
wg Three claws
wd Three claws
Front panel
wh TC-B board
6 Connector (CN600)
9 Bracket (MAIN)
qj
qa
Five screws (BVTP 2.6x8)
7 Flat type wire
(CN601)
qk PANEL FL
board
wf TUNER board
5 Connector
(CN700)
ws TC-A board
wa Three claws
ql Two claws
1 Three screws (BVTP 2.6x8
)
5 Five screws (BVTP 2.6x8)
8 KEY board
2 OPERATION PANEL ASSY
6 Three claws
3 Flat type wire (CN801)
4 Cursor
Front panel
7
3-5. KEY BOARD
