19
GB
Getting Started
Note
Be sure to turn on the receiver when the video and
audio signals of a playback component are being
output to a TV via the receiver. Unless the power is
turned on, neither video nor audio signals will be
transmitted.
Tip
To output the sound of the TV from the speakers
connected to the receiver, be sure to
– connect the audio output jacks of the TV to the TV
IN jack of the receiver.
– turn off the TV’s volume or activate the TV’s
muting function.
4a: Connecting the audio
components

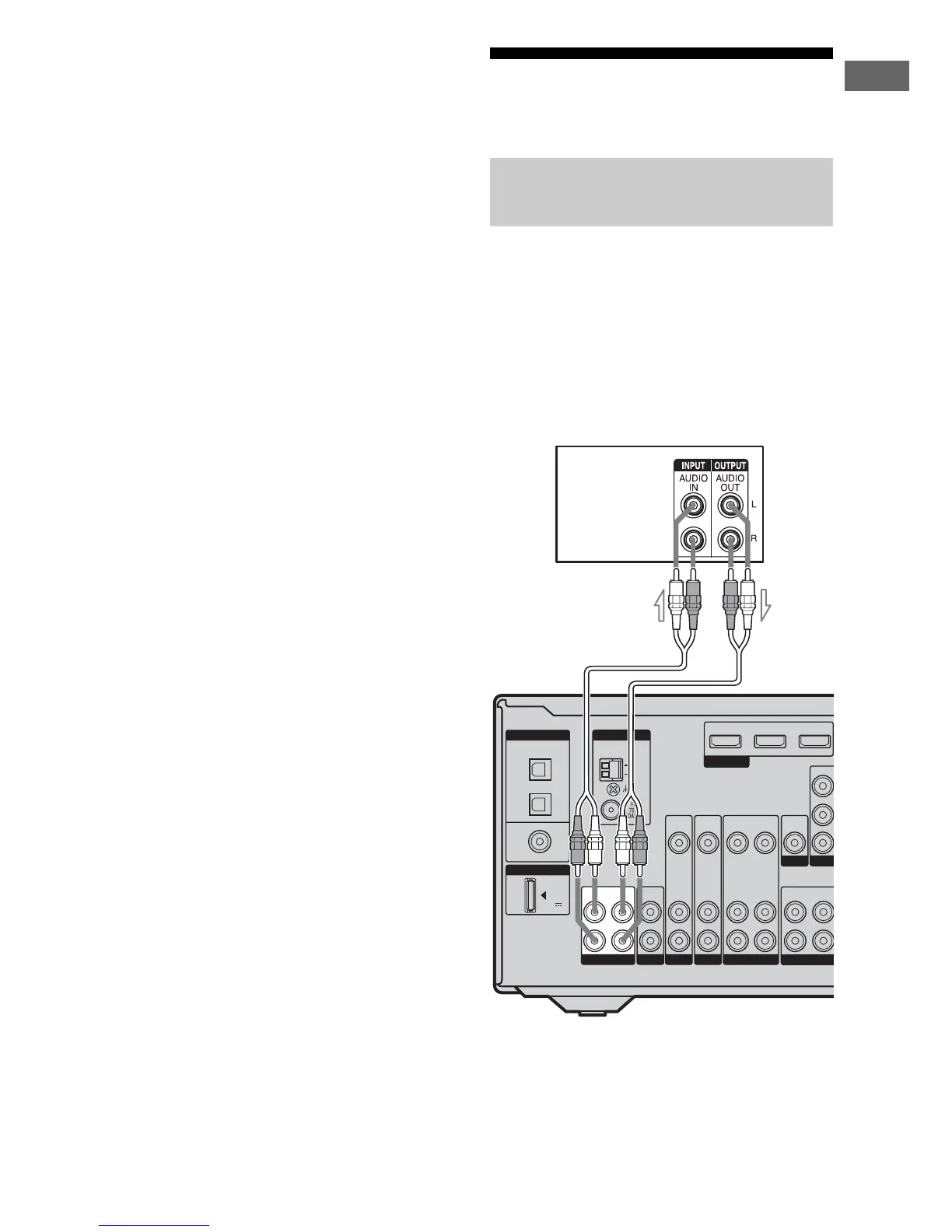

The following illustration shows how to
connect a Super Audio CD player, CD player
or CD recorder. Before connecting the cords,
be sure to disconnect the AC power cord.
After connecting your Super Audio CD player,
CD player or CD recorder, proceed to “4b:
Connecting the video components” (page 20)
or “5: Connecting the antennas” (page 27).
Connecting a Super Audio CD/CD
player or CD recorder
DVD IN BD IN OUT
OPTICAL
COAXIAL
BD
IN
SAT
IN
DVD
IN
HDMI
VIDEO
OUT
SAT IN
VIDEO
IN
AUDIO
OUT
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
AUDIO
IN
AUDIO
OUT
SUBWOOFER
DMPORT
DIGITAL
AM
ANTENNA
L
R
IN
TV SAT DVD VIDEO 1
VIDEO
OUT
MONITOR
DC5V
0.7A MAX
R
SA-CD
/
CD
/
CD-R
L
INOUT
Super Audio
CD player/
CD player/
CD recorder
A
A Audio cord (not supplied)
To Next Page
