3: Connecting the TV
You can watch the selected input image when
you connect the HDMI OUT or MONITOR
OUT jack to a TV.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components. Before
connecting the cords, be sure to disconnect the
AC power cord.
OPTICAL
COAXIAL
BD
IN
SAT
IN
DVD
IN
VIDEO
OUT
VIDEO
IN
AUDIO
OUT
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
AUDIO
IN
AUDIO
OUT
SUBWOOFER
SURROUND
FRONT: ONLY FOR SS-MSP5000
CENTER: ONLY FOR SS-CNP5000
SURROUND: ONLY FOR SS-SRP5000
SURROUND
BACK
CENTER
LR
FRONT
L
R
SPEAKERS
DMPORT
DIGITAL
AM
ANTENNA
L
R
L
R
SA-CD / CD / CD-R
INOUT
SAT DVD VIDEO 1
DC5V
0.7A MAX
DVD IN BD IN OUT
HDMI
SAT IN DVD IN BD IN
Y
COMPONENT VIDEO
TV
VIDEO
OUT
MONITOR OUT
P B /
C B
P R /
C R
IN
MONITOR
TV
BA

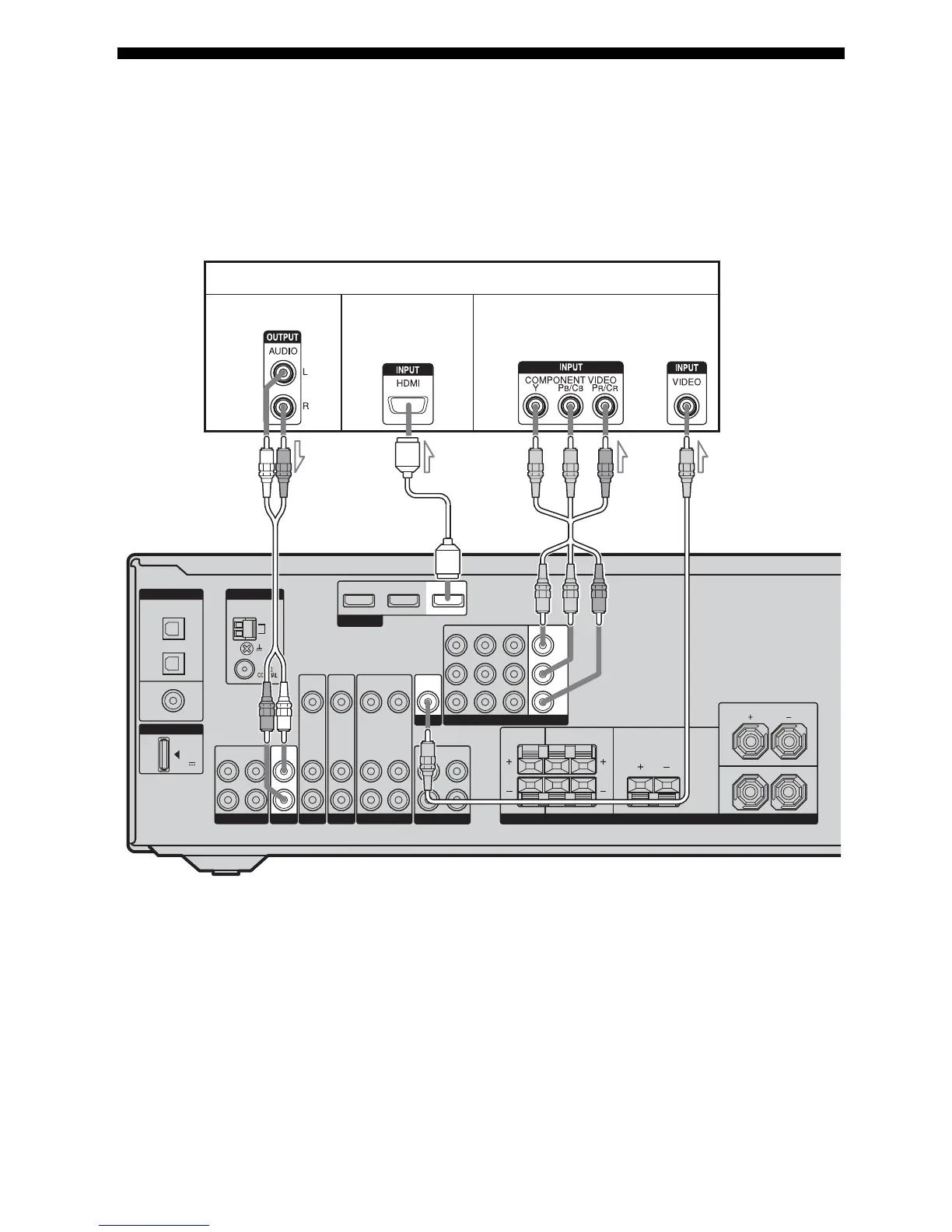

A Audio cord (not supplied)
B HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
C Component video cord (not supplied)
D Video cord (not supplied)
Audio signals Video signals
C
Audio/video
signals
D
