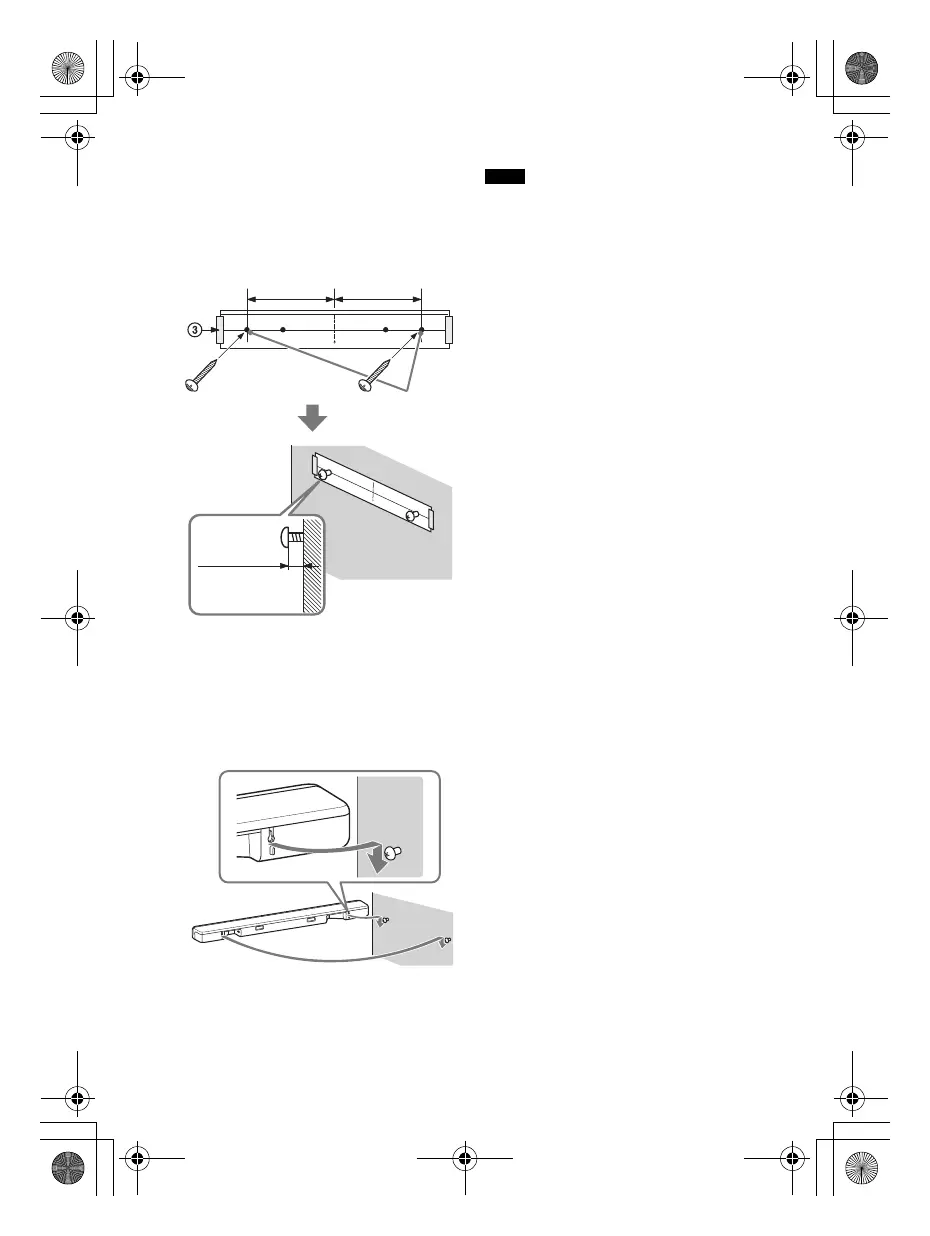

3 Fasten the screws into the marks
() on SCREW LINE () of WALL
MOUNT TEMPLATE as in the
illustration below.
4 Remove WALL MOUNT TEMPLATE.
5 Hang the bar speaker on the
screws.
Align the holes of the rear of the bar
speaker with the screws, then hang
the bar speaker on the two screws.
• When sticking WALL MOUNT TEMPLATE,
smooth it out fully.
• When you do not use WALL MOUNT
TEMPLATE, install the bar speaker apart
from the TV by 70 mm (2 3/4 in) or more.
Screws
Marks ()
10.5 mm to
11.5 mm
(approx.
7/16 in)
368.5 mm
(14 1/2 in)
368.5 mm
(14 1/2 in)
Notes
