Sony HT-NT3 Service Manual

HT-NT3
12

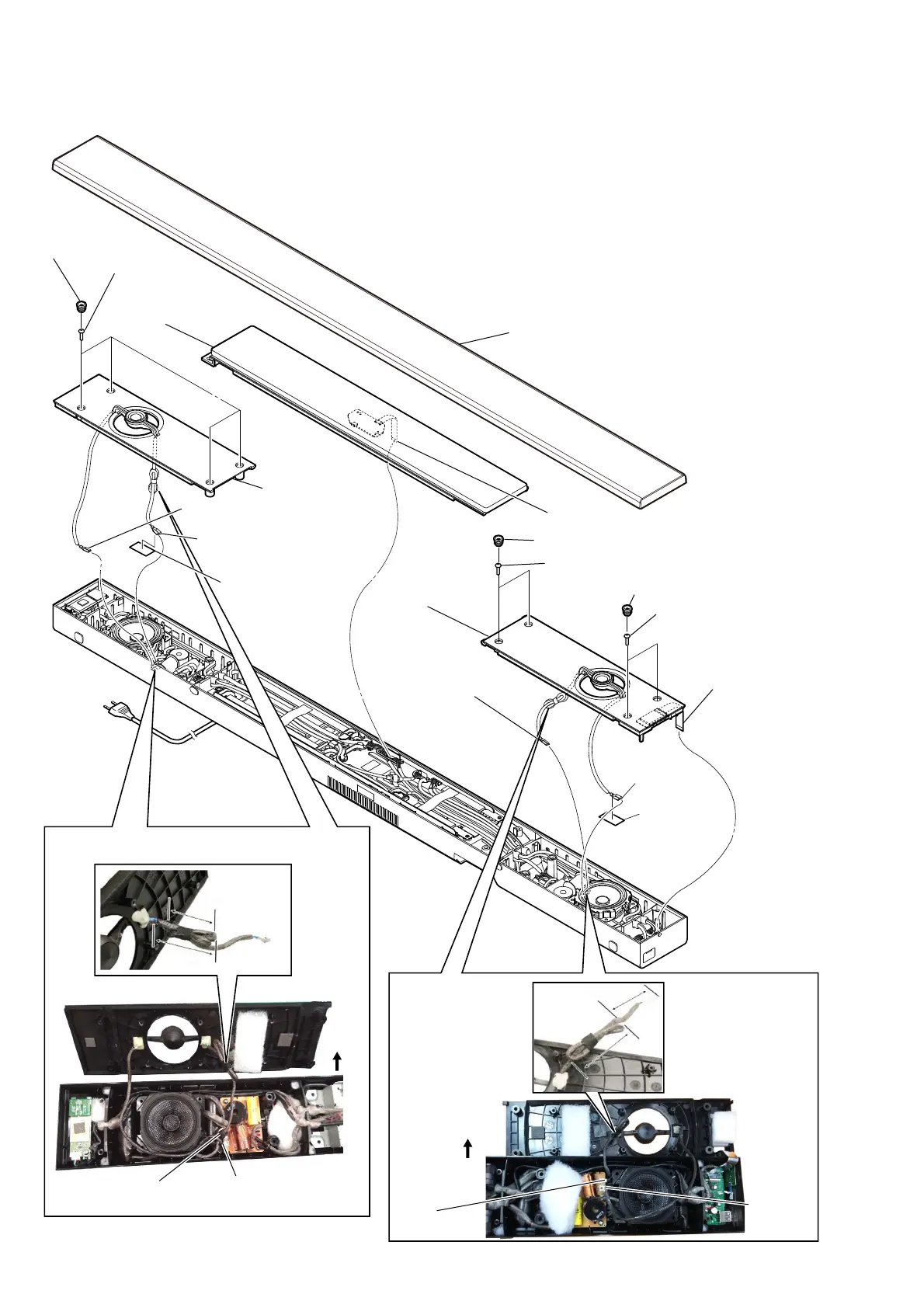

2-3. FRONT PANEL (LEFT, RIGHT, CENTER) SECTION-2
1 frame, grille assy
2 four catcher, rubber
9 two catcher, rubber
9 two catcher, rubber
3 four screws
((+) P TAPPING
SCREW 3.5)
0 two screws (+BVTP 3 x 8)
qa two screws
((+) P TAPPING
SCREW 3.5)
5 terminal (wide side)
4 hemilon, 45X25X0.45
5 terminal (narrow side)
6 panel, front (left)
7 wire (flat type) (14 core) (CN3004)
8 panel, front (center)
qs wire (flat type)
(26 core) (CN1502)
qf terminal
(wide side)
qg panel, front (right)
qf terminal
(narrow side)
qd hemilon,
45X25X0.45
(wide side)
(narrow side)
:LUHVHWWLQJ
:LUHVHWWLQJ
top side
(wide side)
(narrow side)
top side
70mm±5mm
35mm±5mm
50mm±5mm
65mm±5mm

Sony HT-NT3 Specifications

General

Output power	400 W
Apple docking compatibility	Not supported
HDMI in	3
Bluetooth	Yes
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Number of amplifier channels	2.1 channels
Audio decoders	Dolby Digital Plus, Dolby Dual Mono, Dolby TrueHD, DTS, DTS 96/24
Subwoofer location	Separate
Receiver included	No
Product color	Black

Weight and Dimensions

Depth	65 mm
Width	1070 mm
Height	86 mm
Soundbar weight	3100 g
Subwoofer depth	382 mm
Subwoofer width	190 mm
Subwoofer height	385 mm
Subwoofer weight	8000 g
