Sony HT-NT3 Service Manual

HT-NT3
18

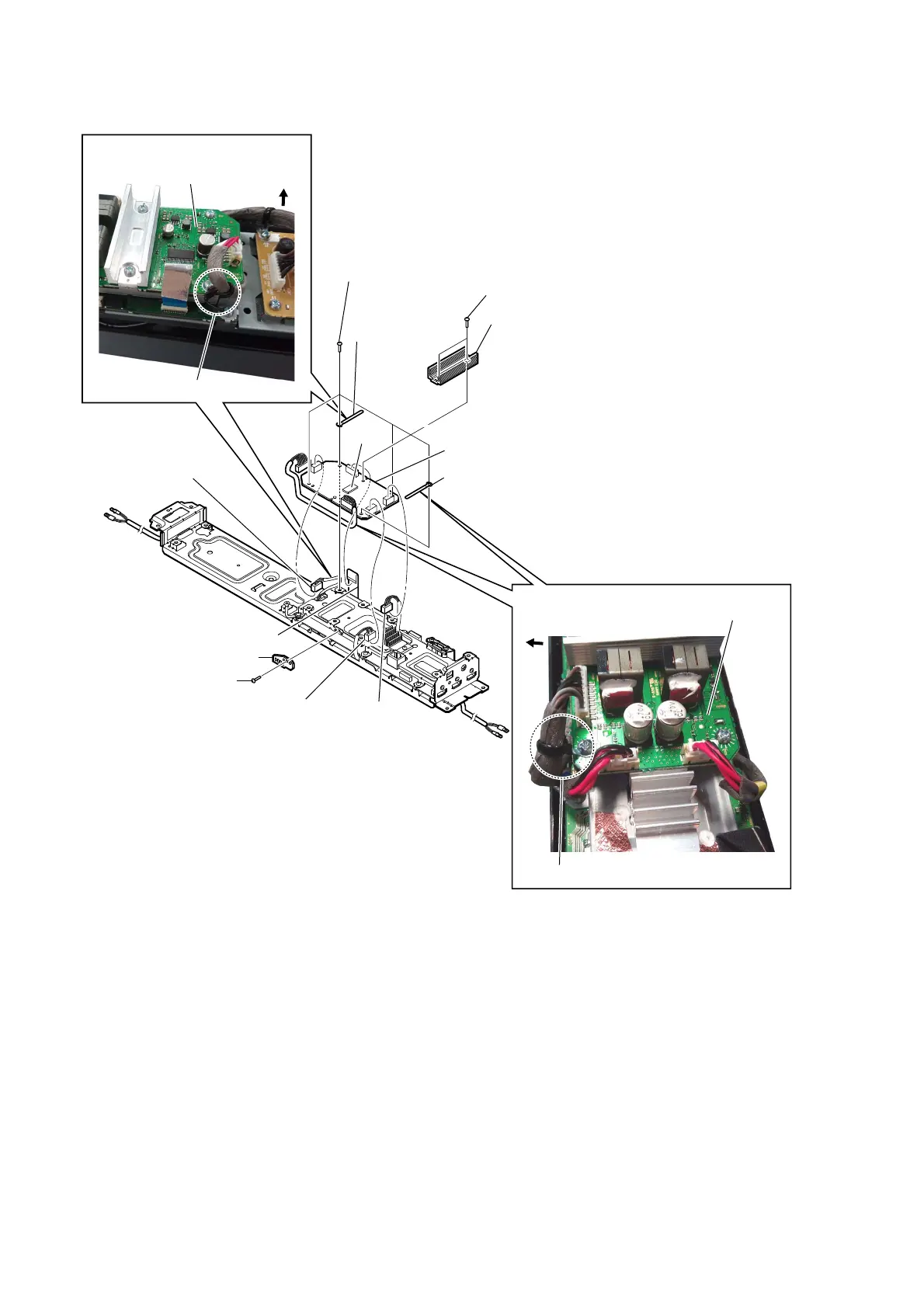

2-9. AMP BOARD
:LUHVHWWLQJ
:LUHVHWWLQJ
top side
stopper, wiring
AMP board
top side
AMP board
stopper, wiring
4 heat sink, AMP
Note: When you install the heat sink, AMP
spread the compound referring to “NOTE
OF REPLACING THE IC6001 ON THE
AMP BOARD AND THE COMPLETE
AMP BOARD” on page 5.
qa stopper, wiring
0 stopper, wiring
IC6001
qs AMP board
5 CN6001 (5P)
6 CN6002 (4P)
8 wire (flat type) (24 core) (CN6004)
7 CN6007 (4P)
2 wire holder PWB
1 one screw (+BVTP 3 x 8)
9 four screws (+BVTP 3 x 8)
3 two screws (+BVTP 3 x 10)

Sony HT-NT3 Specifications

General

Output power	400 W
Apple docking compatibility	Not supported
HDMI in	3
Bluetooth	Yes
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Number of amplifier channels	2.1 channels
Audio decoders	Dolby Digital Plus, Dolby Dual Mono, Dolby TrueHD, DTS, DTS 96/24
Subwoofer location	Separate
Receiver included	No
Product color	Black

Weight and Dimensions

Depth	65 mm
Width	1070 mm
Height	86 mm
Soundbar weight	3100 g
Subwoofer depth	382 mm
Subwoofer width	190 mm
Subwoofer height	385 mm
Subwoofer weight	8000 g
