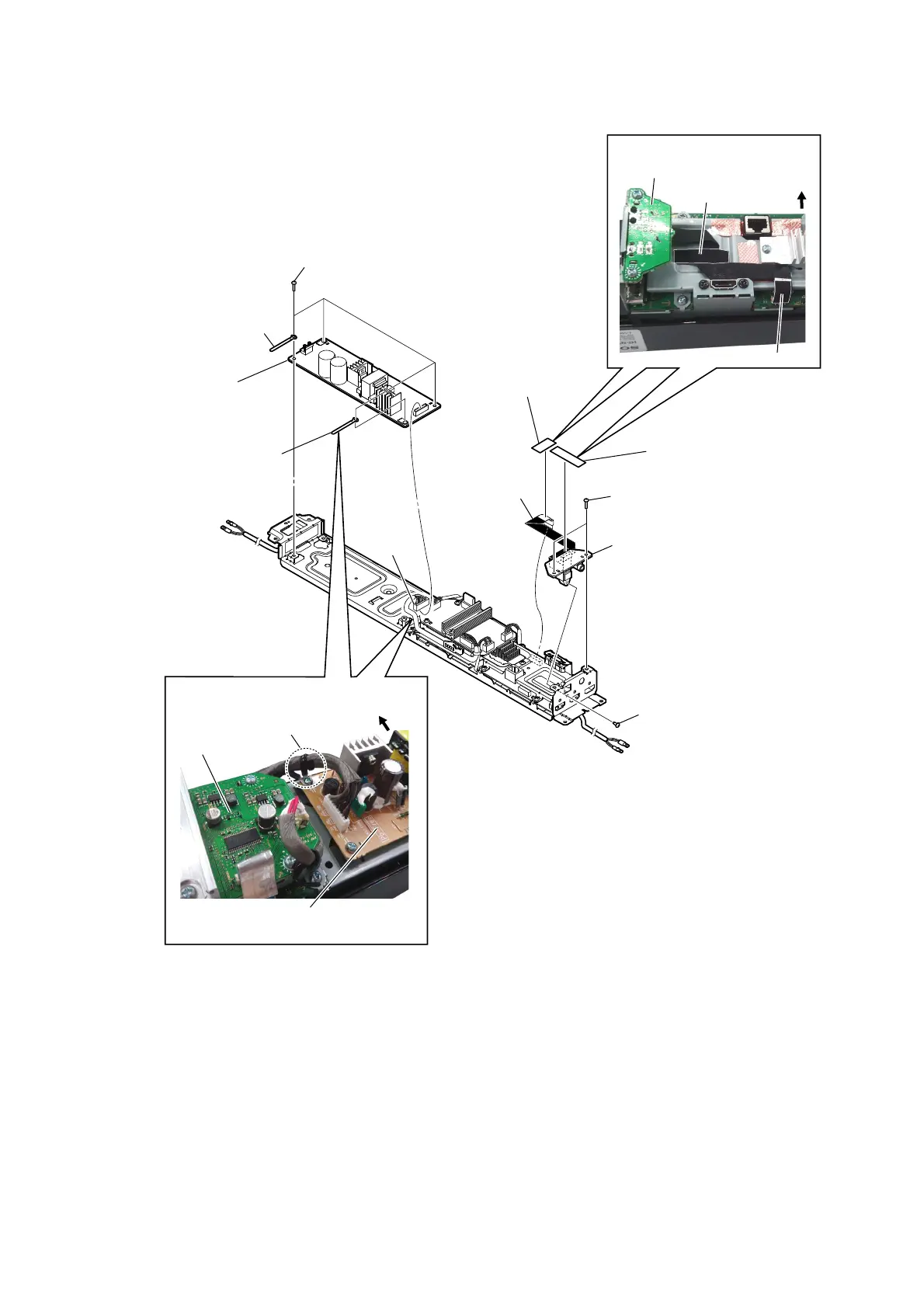

2-8. SWITCHING REGULATOR (3L405W), AUDIO IO BOARD
:LUHVHWWLQJ
top side
:LUHVHWWLQJ
AUDIO IO board
acoustic tape
cushion, saranet
top side
AMP board
stopper, wiring
REGULATOR, SWITCHING
(3L405W)
1 CN101
(9P)
3 stopper, wiring
4 stopper, wiring
5 REGULATOR,
SWITCHING
(3L405W)
8 wire (flat type)
(9 core) (CN705)
2 four screws (+BVTP 3 x 8)
7 cushion, saranet
6 acoustic tape
9 two screws (+BVTP 3 x 8)
0 one screw (+BVTP 3 x 8)
qa AUDIO IO board
