Sony HT-NT3 Service Manual

82
HT-NT3

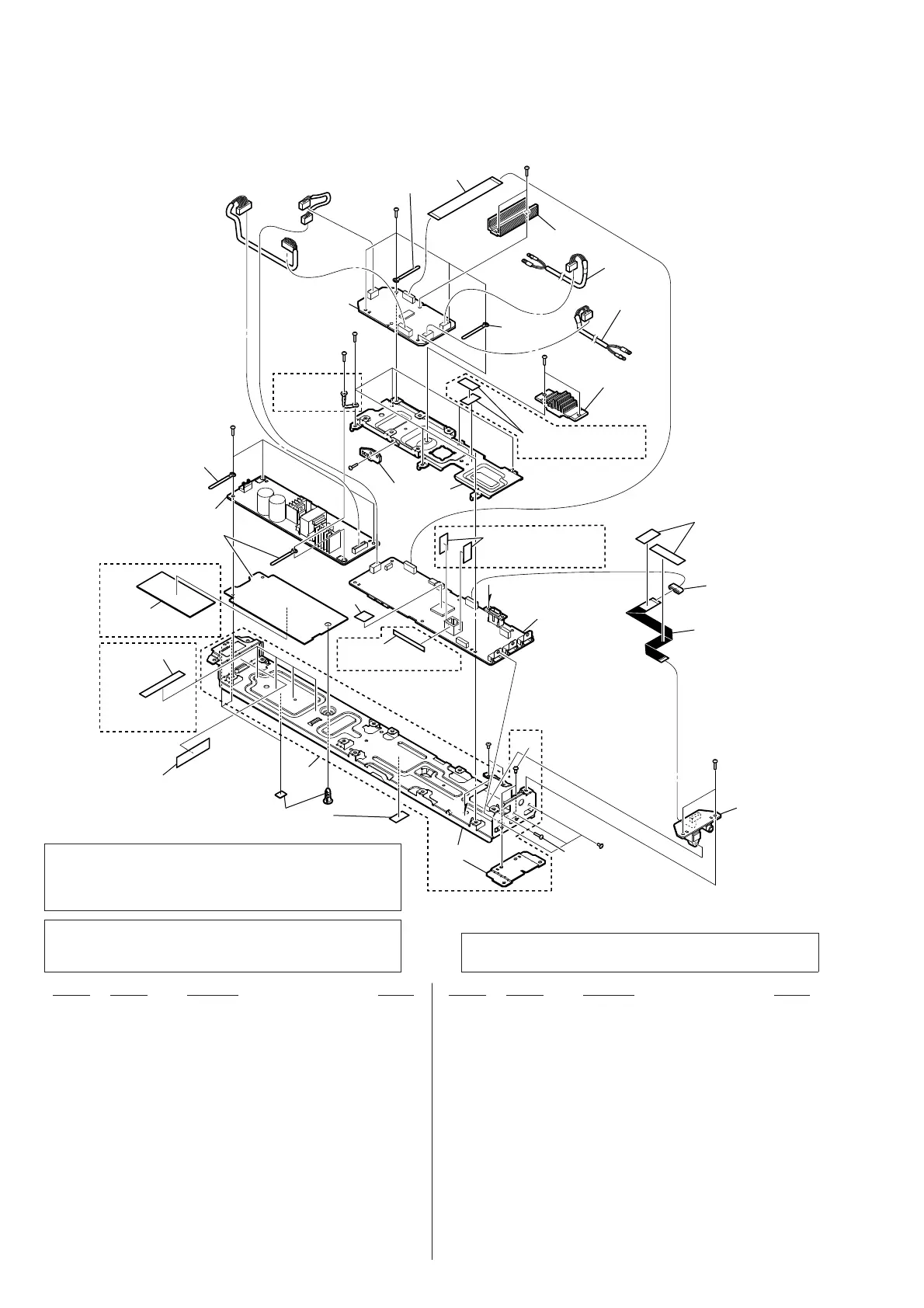

6-5. MB-1407 BOARD SECTION
• Bottom view
A
A
#4
#2
#2
#2
#2
#2
#2
#2
#1
206
not supplied
208
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
207
211
212
not supplied
201
210
209
204
#3
205
202
203
#3
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(AEP, UK, RU, AUS)
(AEP, UK,
RU, AUS)
not supplied
(AEP, UK, RU, AUS)
(AEP, UK, RU, AUS)
(AEP, UK, RU, AUS)
EXCEPT (AEP,
UK, RU, AUS)
0 201 1-474-602-12 REGULATOR, SWITCHING (3L405W)
202 1-828-310-51 WIRE (FLAT TYPE) (9 CORE)
203 1-482-293-11 CORE, FERRITE
204 3-077-331-21 +BV3 (3-CR)
205 A-2060-206-A AUDIO IO BOARD, COMPLETE
206 1-828-245-51 WIRE (FLAT TYPE) (24 CORE)
207 A-2060-205-A AMP BOARD, COMPLETE
9 208 A-2065-400-A MB-1407 BOARD, COMPLETE (for SERVICE)
(US, CND)
9 208 A-2065-494-A MB-1407 BOARD, COMPLETE (for SERVICE)
(AEP)
9 208 A-2065-507-A MB-1407 BOARD, COMPLETE (for SERVICE) (UK)
9 208 A-2065-512-A MB-1407 BOARD, COMPLETE (for SERVICE) (RU)
9 208 A-2065-519-A MB-1407 BOARD, COMPLETE (for SERVICE) (E3)
9 208 A-2065-525-A MB-1407 BOARD, COMPLETE (for SERVICE) (EA)
9 208 A-2065-530-A MB-1407 BOARD, COMPLETE (for SERVICE)
(AUS)
9 208 A-2065-540-A MB-1407 BOARD, COMPLETE (for SERVICE) (SP)
9 208 A-2065-555-A MB-1407 BOARD, COMPLETE (for SERVICE)
(TW)
9 208 A-2072-029-A MB-1407 BOARD, COMPLETE (for SERVICE)
(LA9)
209 3-279-801-31 SHEET, RADIATION
210 X-2590-645-1 CHASSIS, BOTTOM ASSY
211 1-849-008-11 INPUT CABLE
212 1-849-008-21 INPUT CABLE
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-682-546-09 SCREW +B 3X5
#4 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note 1: When the complete AMP board is replaced, refer to
“NOTE OF REPLACING THE IC6001 ON THE AMP
BOARD AND THE COMPLETE AMP BOARD” on
page 5.
Note 3: If wire (fl at type) is replaced, install it after bending it
in the same form as that before replacement.
Note 2: When the SWITCHING REGULATOR (3L405W)
board is replaced, spread the bond referring to “BOND
FIXATION OF ELECTRIC PARTS” on page 5.
Ver. 1.1

Sony HT-NT3 Specifications

General

Output power	400 W
Apple docking compatibility	Not supported
HDMI in	3
Bluetooth	Yes
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Number of amplifier channels	2.1 channels
Audio decoders	Dolby Digital Plus, Dolby Dual Mono, Dolby TrueHD, DTS, DTS 96/24
Subwoofer location	Separate
Receiver included	No
Product color	Black

Weight and Dimensions

Depth	65 mm
Width	1070 mm
Height	86 mm
Soundbar weight	3100 g
Subwoofer depth	382 mm
Subwoofer width	190 mm
Subwoofer height	385 mm
Subwoofer weight	8000 g
