Sony HT-NT3 Service Manual

80
HT-NT3

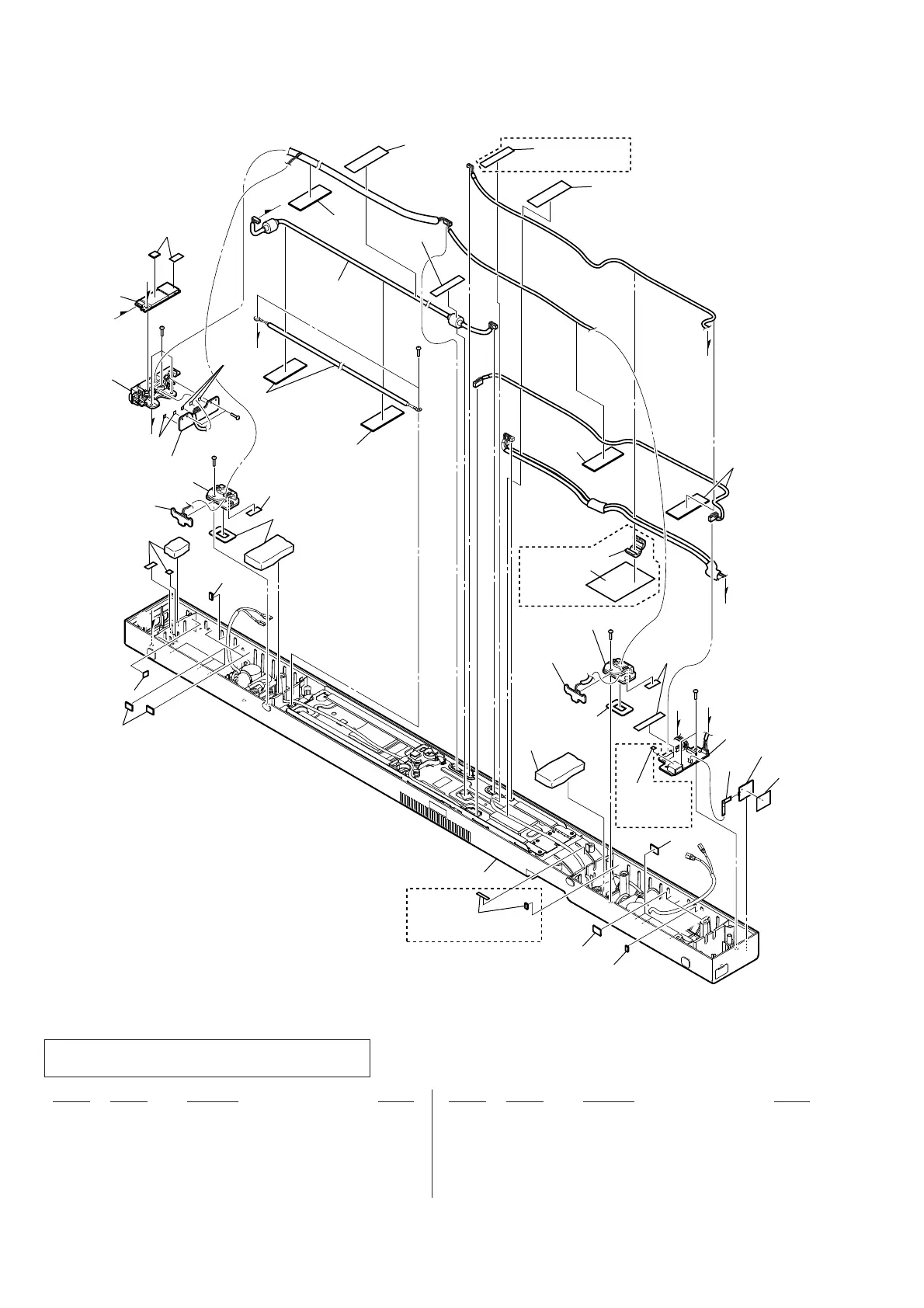

6-3. CABINET SECTION 1
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
101 1-458-765-21 CARD WLAN/BT COMBO
102 4-547-411-01 BUTTON
103 1-849-019-11 WIRE (FLAT TYPE) (6 CORE)
104 4-446-112-01 TAPE, NFC
105 8-989-602-00 RC-S730 (WW)
106 A-2060-208-A WS CHUKEI BOARD, COMPLETE
107 1-481-528-11 FILTER, CLAMP (FERRITE CORE)
(AEP, UK, RU, AUS)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A
D
D
B
C
C
E
E
A
B
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
cabinet section 2
not supplied (KEY board)
not supplied
not supplied
not supplied
101
102
#2
not supplied
#2
not supplied
not supplied
not supplied
#2
#2
not supplied
not supplied
not supplied
not supplied
not supplied
(IR TXR board)
not supplied
(IR TXL board)
103
105
107
104
106
not supplied
not supplied
not supplied
#2
#2
not supplied
not supplied
not supplied
(AEP, UK, RU, AUS)
(AEP, UK,
RU, AUS)
not supplied
(AEP, UK, RU, AUS)
(AEP, UK,
RU, AUS)
not supplied
not supplied
not supplied
not supplied
not supplied
Ver. 1.1

Sony HT-NT3 Specifications

General

Output power	400 W
Apple docking compatibility	Not supported
HDMI in	3
Bluetooth	Yes
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Number of amplifier channels	2.1 channels
Audio decoders	Dolby Digital Plus, Dolby Dual Mono, Dolby TrueHD, DTS, DTS 96/24
Subwoofer location	Separate
Receiver included	No
Product color	Black

Weight and Dimensions

Depth	65 mm
Width	1070 mm
Height	86 mm
Soundbar weight	3100 g
Subwoofer depth	382 mm
Subwoofer width	190 mm
Subwoofer height	385 mm
Subwoofer weight	8000 g
