Sony HT-NT3 Service Manual

HT-NT3
14

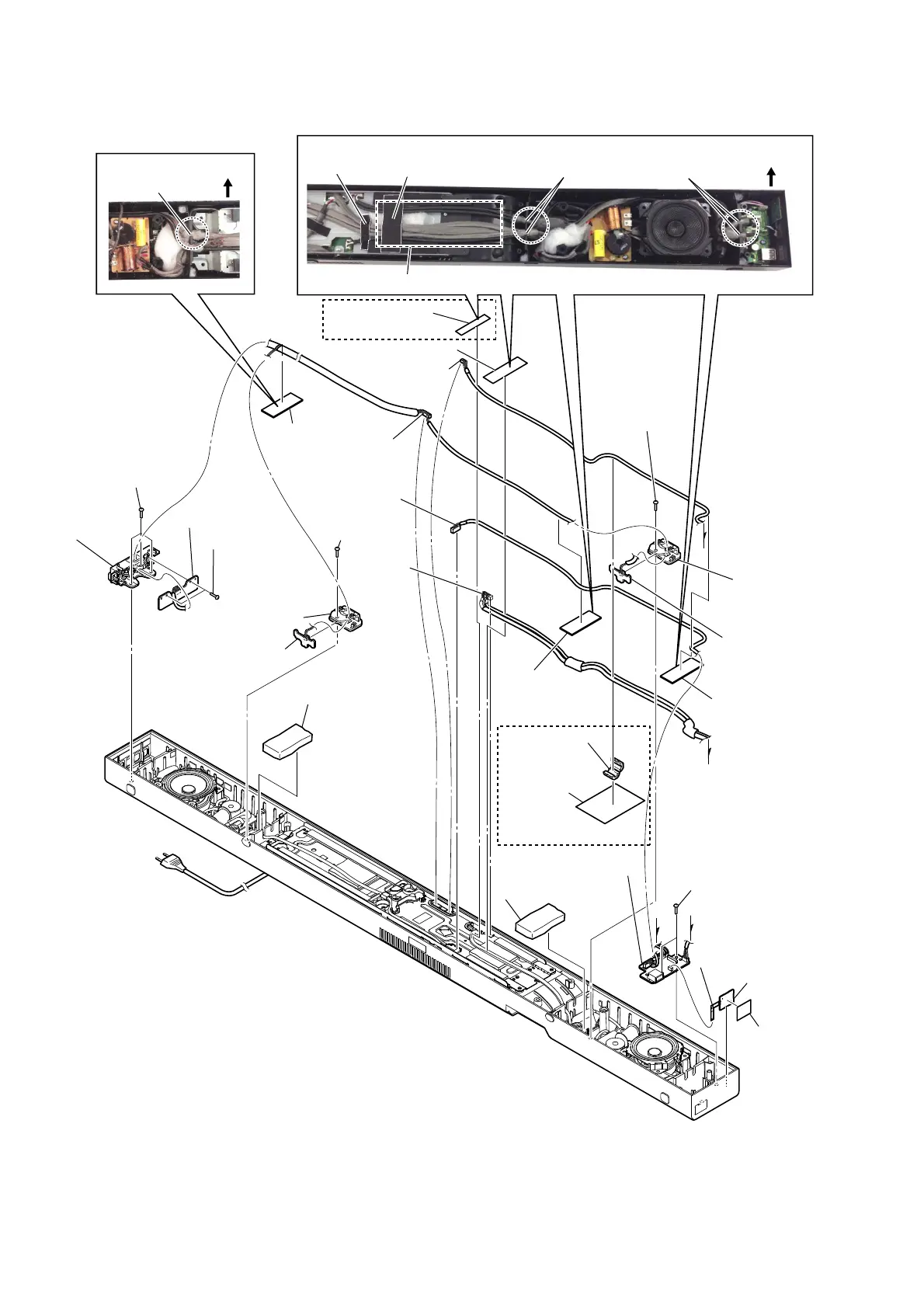

2-5. KEY BOARD, IR TXL BOARD, IR TXR BOARD, WS CHUKEI BOARD, RC-S730 (WW)
:LUHVHWWLQJ
top side
:LUHVHWWLQJ
top side
Note: Make sure both wires do not contact to each other after paste the acoustic tape.
qh windows,
IR (rear)
wa cushion, seal
qg one screw
(+BVTP 3 x 8)
qj IR TXR board
1 CN3003 (9P)
3 three screws
(+BVTP 3 x 8)
4 two screws
(+BVTP 3 x 8)
8 one screw
(+BVTP 3 x 8)
0 IR TXL board
7 acoustic, absorbent
6 KEY board
5 button
9 windows, IR (rear)
–%RWWRPYLHZ–
wg two screws
(+BVTP 3 x 8)
wh WS CHUKEI board
qf acoustic, absorbent
w; filter, clamp
(ferrite core)
wj Peel off the
tape, NFC
wk RC-S730 (WW)
wf CN1561 (6P)
qd cushion,
seal
ws CN501 (5P)
qk CN3005 (6P)
wd CN706
(11P)
2 cushion, seal
cushion, seal
A
A
B
B
cushion, sealacoustic tape
cushion, seal
cushion, seal
qs acoustic tape
qa cushion, seal
$(38.58$86
ql cushion, seal
$(38.58$86
• Abbreviation
AUS :
Australian model
RU : Russian model
Ver. 1.1

Sony HT-NT3 Specifications

General

Output power	400 W
Apple docking compatibility	Not supported
HDMI in	3
Bluetooth	Yes
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Number of amplifier channels	2.1 channels
Audio decoders	Dolby Digital Plus, Dolby Dual Mono, Dolby TrueHD, DTS, DTS 96/24
Subwoofer location	Separate
Receiver included	No
Product color	Black

Weight and Dimensions

Depth	65 mm
Width	1070 mm
Height	86 mm
Soundbar weight	3100 g
Subwoofer depth	382 mm
Subwoofer width	190 mm
Subwoofer height	385 mm
Subwoofer weight	8000 g
