Sony HT-NT3 Service Manual

79
HT-NT3

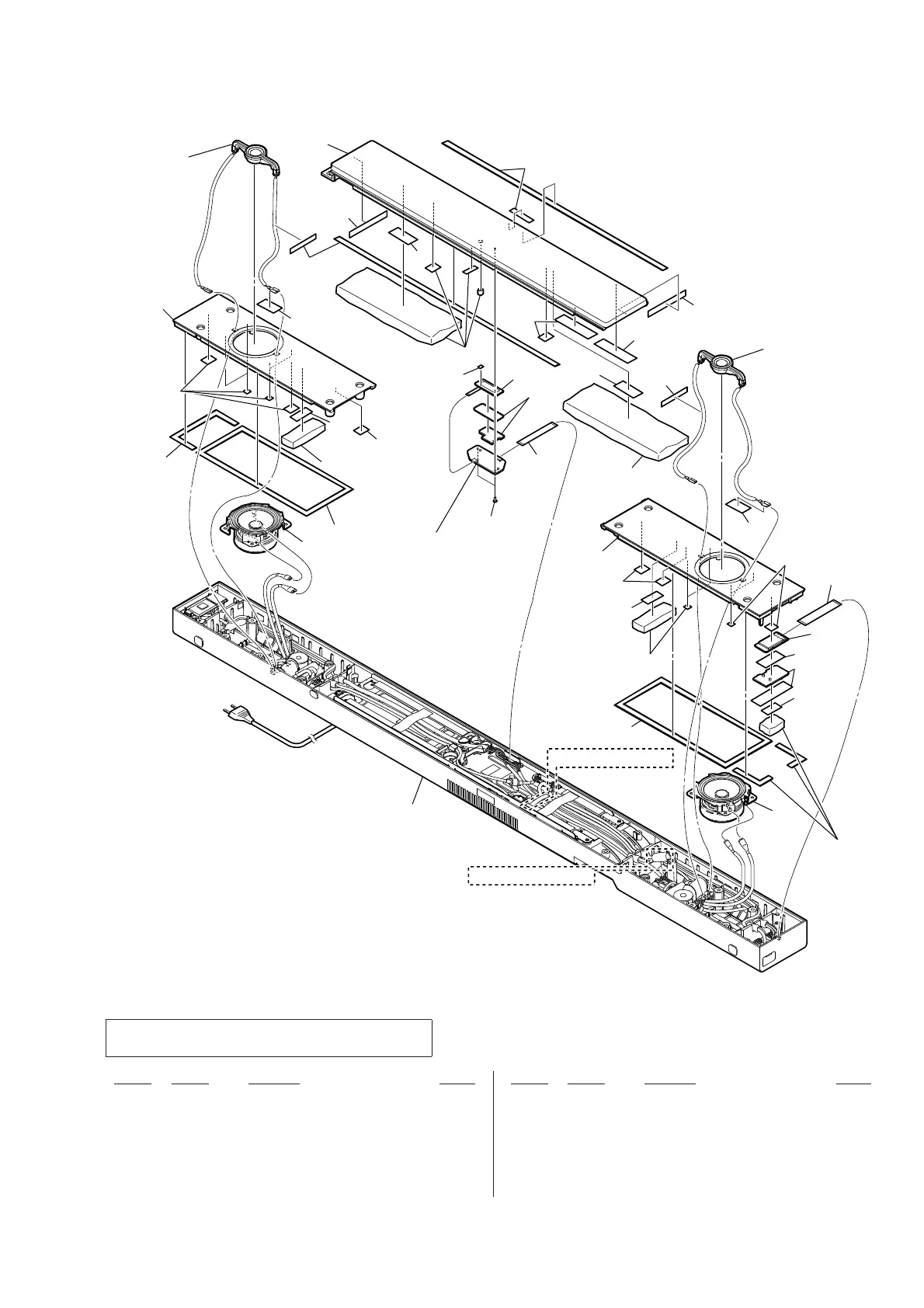

6-2. FRONT PANEL SECTION
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(OLED CHUKEI board)
56
54
55
52
not supplied
not
supplied
not
supplied
51
61
62
62
60
cabinet section 1
not supplied
not supplied
not supplied
not supplied
not supplied
58
59
61
57
57
60
60
not supplied
53
60
60
not supplied
not supplied
(AEP, UK, RU, AUS)
(AEP, UK, RU, AUS)
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
51 4-547-408-01 PANEL, FRONT (LEFT)
52 4-547-407-01 PANEL, FRONT (CENTER)
53 4-547-409-01 PANEL, FRONT (RIGHT)
54 1-849-018-11 WIRE (FLAT TYPE) (14 CORE)
55 4-674-137-11 SCREW (PTP2X5)
56 1-812-049-11 ELEMENT, ORGANIC EL INDICATOR
57 1-859-082-11 LOUDSPEAKER (1.8CM)
58 1-828-778-51 WIRE (FLAT TYPE) (26 CORE)
59 1-492-700-61 RF MODULATOR (WS001)
60 4-471-585-01 SHEET (BATT), ADHESIVE
61 1-859-080-12 LOUDSPEAKER (6.5CM)-080-12
62 4-543-826-01 HEMILON, 45X25X0.45
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1

Sony HT-NT3 Specifications

General

Output power	400 W
Apple docking compatibility	Not supported
HDMI in	3
Bluetooth	Yes
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Number of amplifier channels	2.1 channels
Audio decoders	Dolby Digital Plus, Dolby Dual Mono, Dolby TrueHD, DTS, DTS 96/24
Subwoofer location	Separate
Receiver included	No
Product color	Black

Weight and Dimensions

Depth	65 mm
Width	1070 mm
Height	86 mm
Soundbar weight	3100 g
Subwoofer depth	382 mm
Subwoofer width	190 mm
Subwoofer height	385 mm
Subwoofer weight	8000 g
