Sony HT-NT3 Service Manual

HT-NT3
15

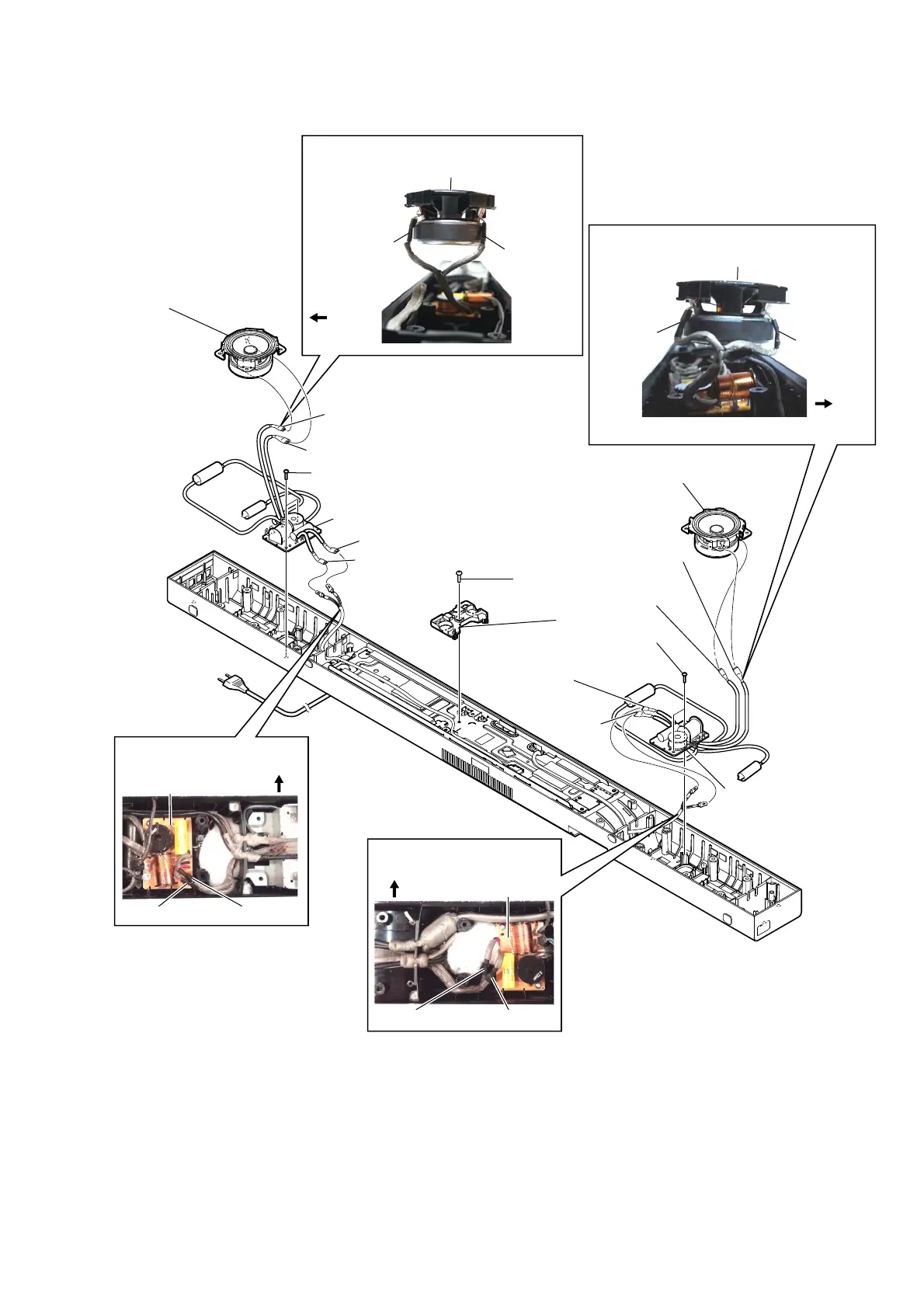

2-6. LOUDSPEAKER (6.5 cm)-080-12 (L-CH, R-CH), MOUNTED BOARD (LEFT, RIGHT)
:LUHVHWWLQJ
top side
(narrow side)
(wide side)
loudspeaker (6.5 cm)-080-12 (L-CH)
:LUHVHWWLQJ
top side
(narrow side)
(wide side)
:LUHVHWWLQJ
top side
(narrow side)
(wide side)
loudspeaker (6.5 cm)-080-12 (R-CH)
MOUNTED PWB
(left)
:LUHVHWWLQJ
top side
(narrow side)
(wide side)
MOUNTED PWB
(right)
2 loudspeaker (6.5 cm)-080-12
(L-CH)
1 terminal (narrow side)
1 terminal (wide side)
3 terminal (wide side)
3 terminal (narrow side)
4 two screws (+BVTP 3 x 8)
5 MOUNTED PWB (left)
2 loudspeaker (6.5 cm)-080-12 (R-CH)
1 terminal (wide side)
1 terminal (narrow side)
3 terminal
(narrow side)
3 terminal
(wide side)
5 MOUNTED PWB (right)
4 two screws (+BVTP 3 x 8)
–%RWWRPYLHZ–
6 one screw (+BVTP 3 x 8)
7 holder, wire
