118
HVR-A1E/A1P 2-639-668-11(1)

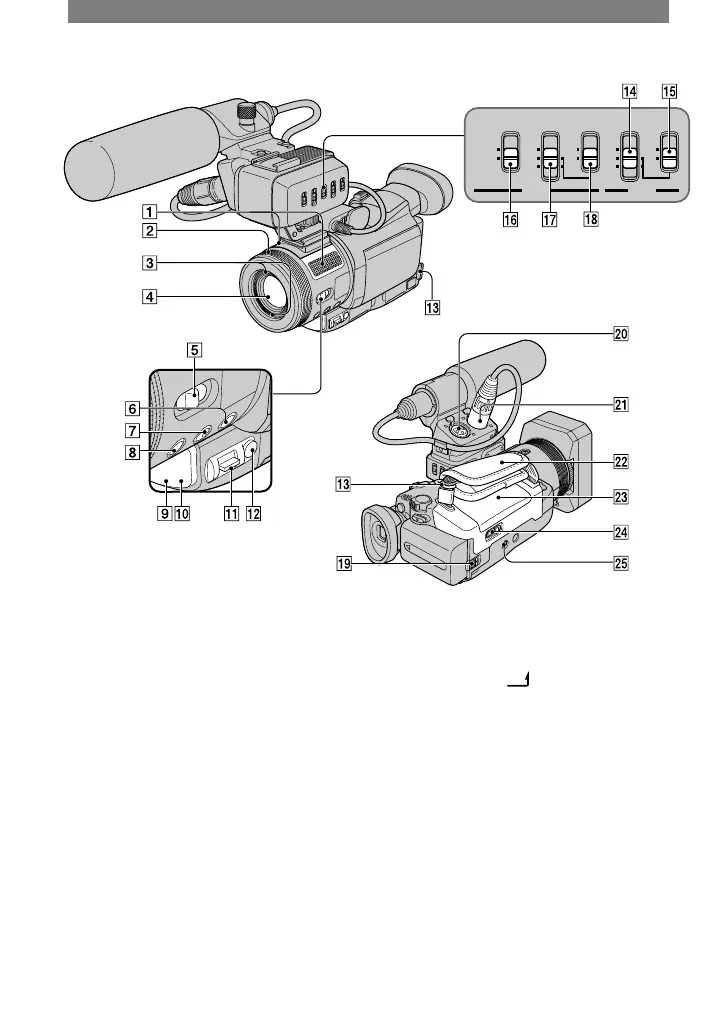

 Internal stereo microphone (27)
 Zoom ring/focus ring (24, 25)
 Holes for the lens hood
 Lens (Carl Zeiss Lens) (5)
 FOCUS/ZOOM switch (24, 25)
 BACK LIGHT button (25)
 EXPANDED FOCUS button (25)
 TELE MACRO button (25)
 Camera recording lamp (27)
 Remote sensor (27)
 EXPOSURE/VOL lever (24)
 EXPOSURE button (24)
 Hooks for the shoulder strap (117)
 INPUT2 INPUT LEVEL Selector (19)
 INPUT2 +48V switch (19)
 INPUT1 REC CH SELECT switch (19)
 INPUT1 INPUT LEVEL Selector (19)
 INPUT1 +48V switch (19)
 BATT (battery release) lever (11)
 INPUT2 connector (19)
 INPUT1 connector (19)
 Grip belt (13)
 Cassette compartment lid (17)
 OPEN/EJECT lever (17)
 Tripod receptacle (26)
