Recording/Playback
Continued 
Camcorder
TV
Menu Setting
: Signal flow

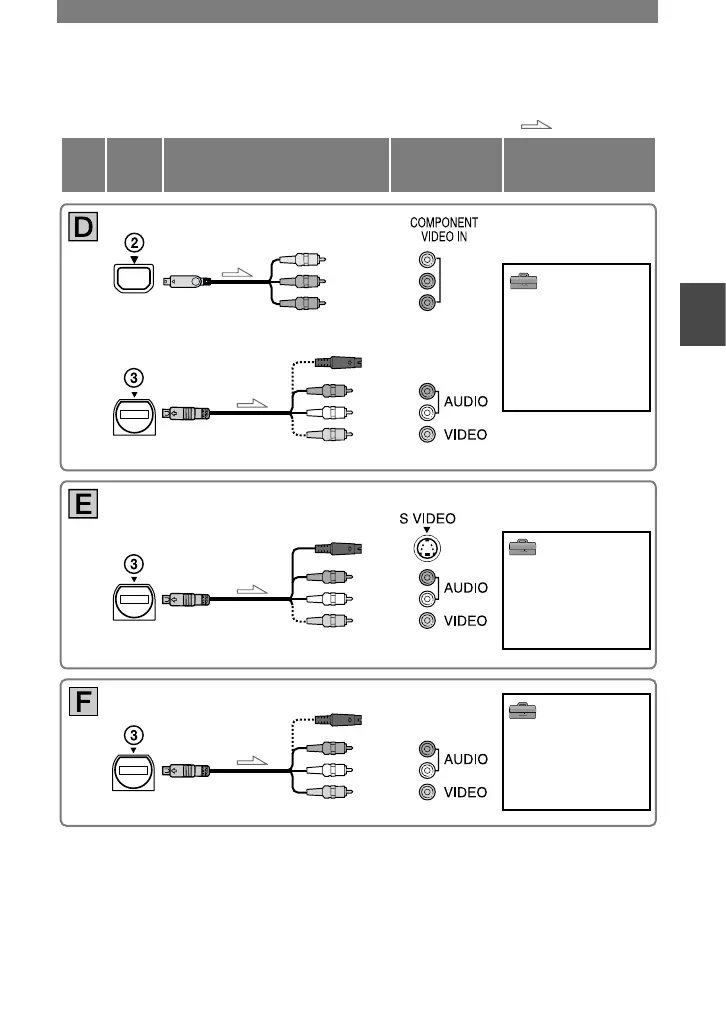

CableType
Component video cable
(supplied)
A/V connecting cable (supplied)
Do not connect the S video plug and the video plug (yellow).
(Red)
(White)
(Yellow)
(STANDARD SET)
[VCR HDV/DV] 
[AUTO]
(p. 57)
[COMPONENT]*
(p. 60)
[DOWN CONVERT]
*
(p. 61)
(Green) Y
(Blue) PB/CB
(Red) PR/CR
A/V connecting cable (supplied)
Do not connect the video plug (yellow).
(Red)
(White)
(Yellow)
(STANDARD SET)
[VCR HDV/DV] 
[AUTO]
(p. 57)
[DOWN CONVERT]
*
(p. 61)
A/V connecting cable (supplied)
(Red)
(White)
(Yellow)
(STANDARD SET)
[VCR HDV/DV] 
[AUTO]
(p. 57)
[DOWN CONVERT]
*
(p. 61)
Do not connect the S video plug.
* Change the settings depending on the TV connected.
