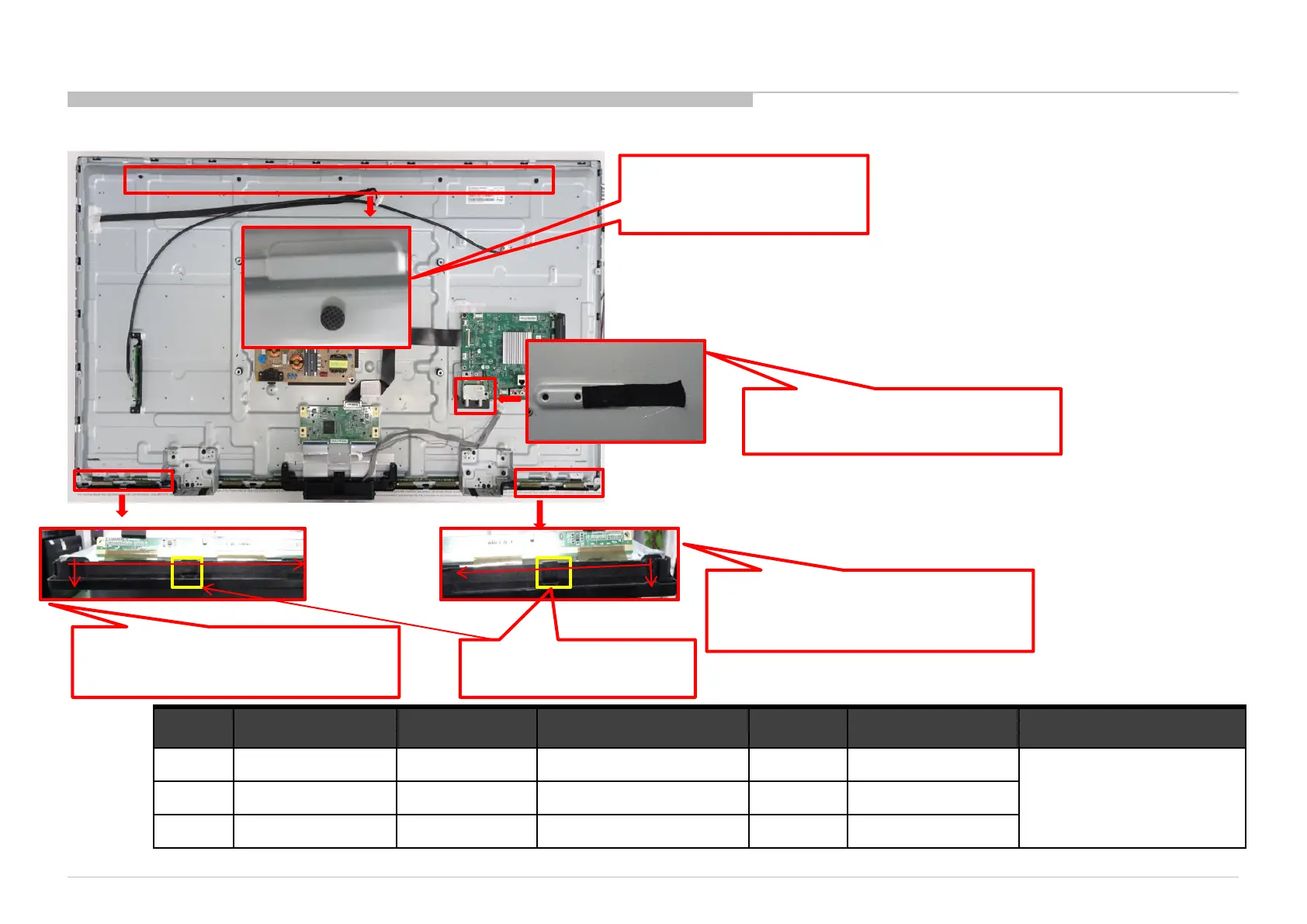

1-19-2.Stick HIMERON on the Panel.
For this portion, Himeron tape will be attached by SONY
7.Silica gel aimed at the convex
hull, Attached it in the middle of
the convex hull
6.Nonwoven fabric on the convex hull, along
the edge of the convex hull is attached to the
right
8, nonwoven fabric along the left side of the glue
on the edge of the box, from left to right, shall not
be leakage
9, nonwoven fabric along the right side of the
glue on the edge of the box, from left to right,
shall not be leakage
10.nonwoven fabric should
be press into the groove by hand
Item Part Name SONY PN SPEC(L*W*T) Qty Position REMARK
6 HEMIRON 4-739-877-01 45mm*10mm*0.3mm 1
UNDER IO-BTM
BY SONY
7 RUBBER
4-737-472-01
D7.8mm*T2.5mmmm 5 PANEL TOP
8/9 HEMIRON 4-739-880-01 250mm*8mm*0.3mm 2 PANEL Bottom
To Next Page
