Sony KD-55A8F - Slide Number 49

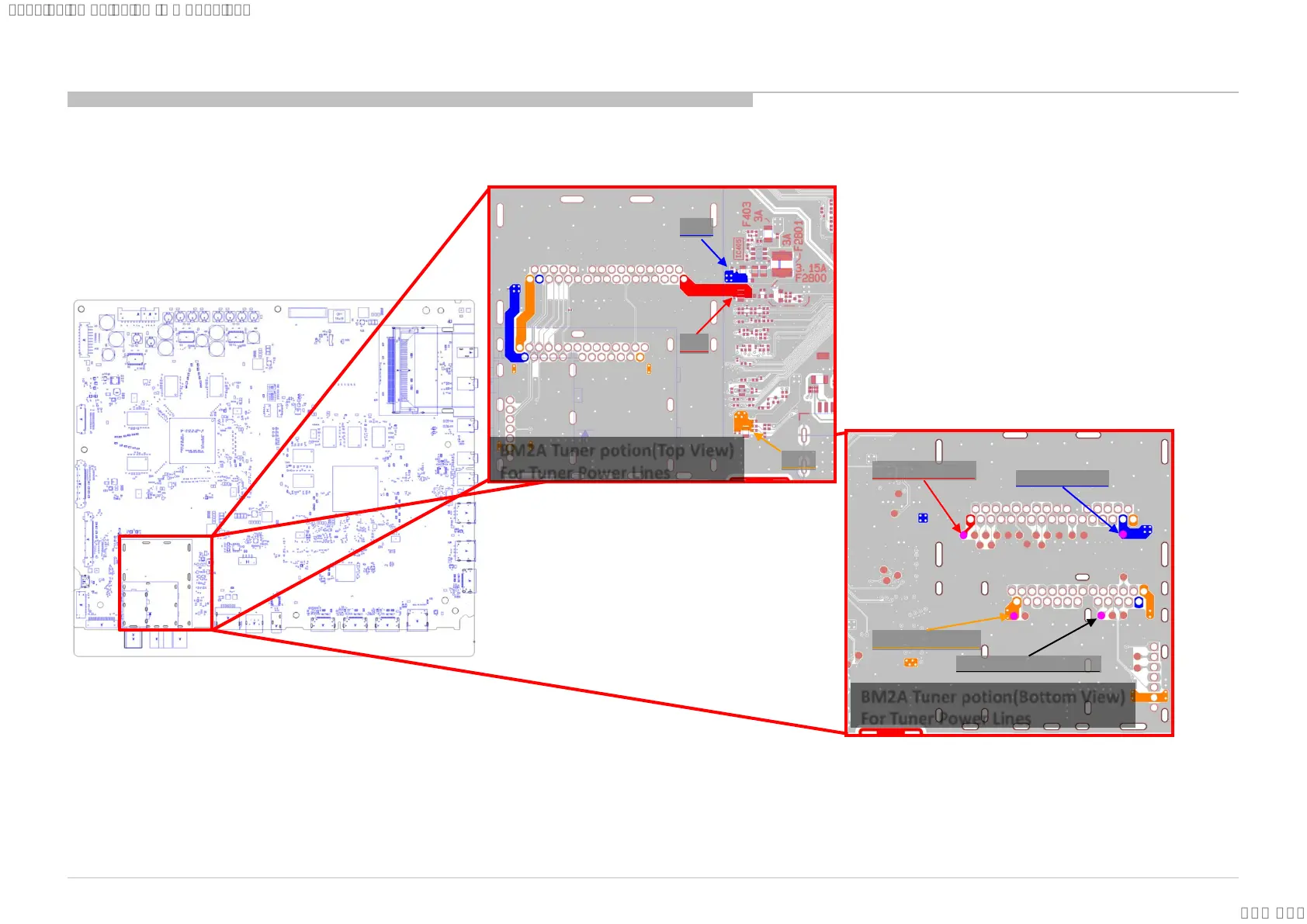

BM2A (Top View)
For Tuner Power Lines
JL2800 = 3.3V
JL2807 = RESET:3.3V
JL2822 = 12V
JL2801 = 1.8V
BM2A Tuner potion(Bottom View)
For Tuner Power Lines
3.3V
12V
1.8V
BM2A Tuner potion(Top View)
For Tuner Power Lines
49
4.4 NO PICTURE: @ TUNER (BM2A)
SYSSET
2018/03/1622:32:44(GMT+09:00)
