(Supplementary

information)

C2825

FB2802

C2808

R2838

C2807

FB2801

C2826

C2827

R2809

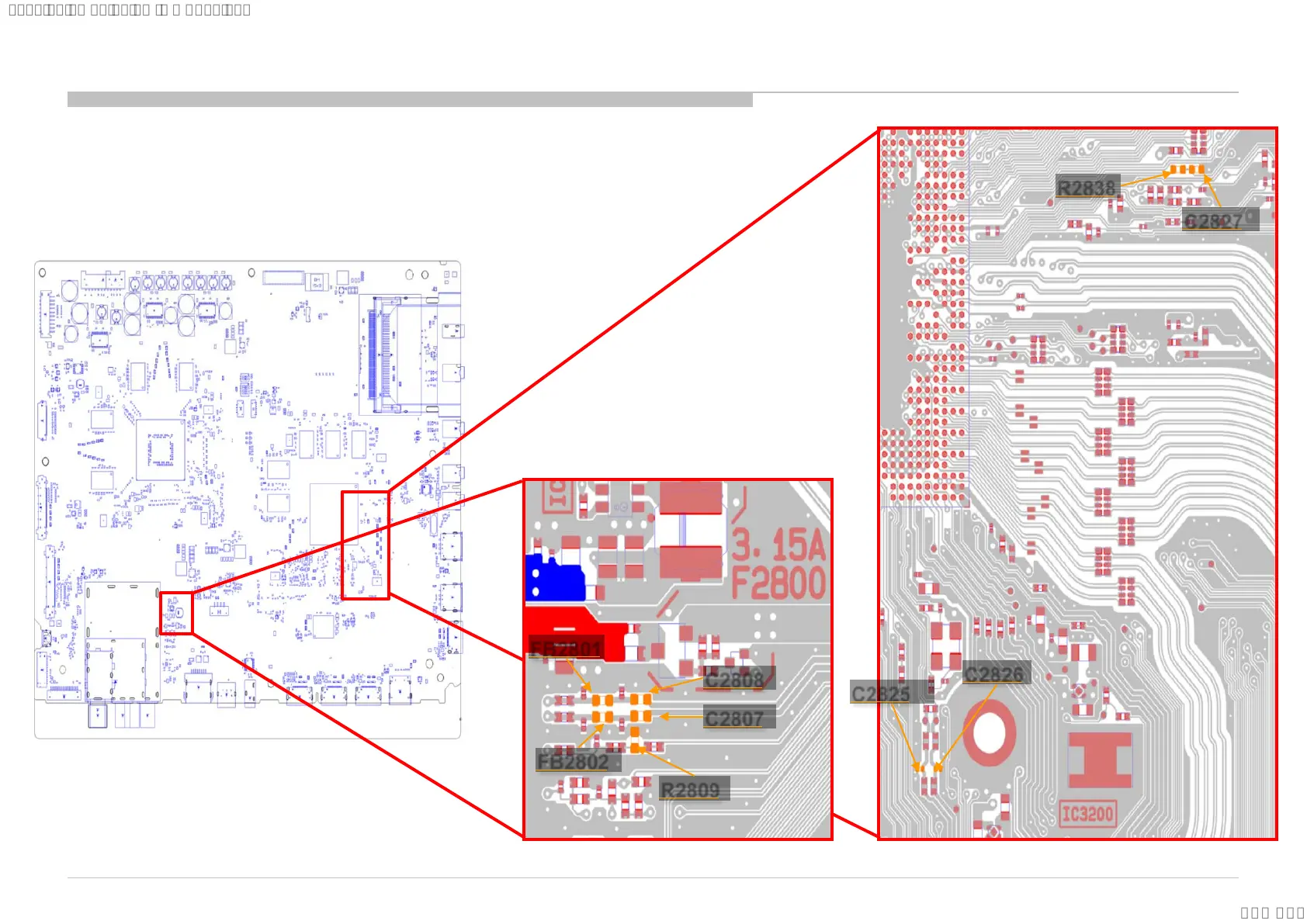

4.4 NO PICTURE: @ TUNER (BM2A)

BM2A (Top View)

IF & IFAGC line

SYSSET

2018/03/1622:32:44(GMT+09:00)

SERVICE MANUAL (COMMON)1
SERVICE MANUAL (COMMON)2
MODEL LIST3
Slide Number 44
Slide Number 55
Slide Number 66
Slide Number 77
Slide Number 88
Slide Number 99
Slide Number 1010
Slide Number 1111
Slide Number 1212
Self Diagnosis Display13
Slide Number 1414
1.0 No Power15
Slide Number 1616
Slide Number 1717
Slide Number 1818
1.3 No Power DDCON/LDO19
Slide Number 2020
Slide Number 2121
Slide Number 2222
Slide Number 2323
Slide Number 2424
2.0 LED Blinking: 2x (Main power Error)25
Check point for BM2A26
2.1 LED Blinking: 3x (DC Alert Error)27
Slide Number 2828
2.2 LED Blinking: 3x (Audio Error)29
2.3 LED BLINKING 4x (TCON Internal Error/TCON I2C Communication Error)30
Check point for BM2A31
2.5 LED BLINKING: 5x (Panel ID Read Error)32
Slide Number 3333
Slide Number 3434
2.7 LED BLINKING: 7x (Temperature Error)35
3.0 No Sound36
Slide Number 3737
3.3 No Sound Power Off Check38
Slide Number 3939
Slide Number 4040
Slide Number 4141
3.8 NO SOUND: HDMI 1/2/3/442
4.0 No Picture43
Slide Number 4444
Slide Number 4545
Slide Number 4646
Slide Number 4747
Slide Number 4848
Slide Number 4949
Slide Number 5050
Slide Number 5151
Slide Number 5252
Slide Number 5353
4.4 NO PICTURE: @ TUNER54
Slide Number 5555
4.4 NO PICTURE: @ TUNER56
Slide Number 5757
Slide Number 5858
Slide Number 5959
Slide Number 6060
Slide Number 6161
5.0 Key Switch Buttons Error62
Slide Number 6363
Slide Number 6464
6.0 Network Malfunction: Ethernet (Wired)65
6.2 Wireless Network malfunction (1/2)66
Wireless Network malfunction (2/2)67
Slide Number 6868
4.1 How to Enter Service Mode69
4.2 Software Version70
4.3 Serial Number Edit (1)71
4.3 Serial Number Edit (2)72
Slide Number 7373
Slide Number 7474
Slide Number 7575
Slide Number 7676
Slide Number 7777
Slide Number 7878
Slide Number 7979
Slide Number 8080
Slide Number 8181
Slide Number 8282
Slide Number 8383
Slide Number 8484
Slide Number 8585
Slide Number 8686
Slide Number 8787
Slide Number 8888
Slide Number 8989
Slide Number 9090
Slide Number 9191
Slide Number 9292
