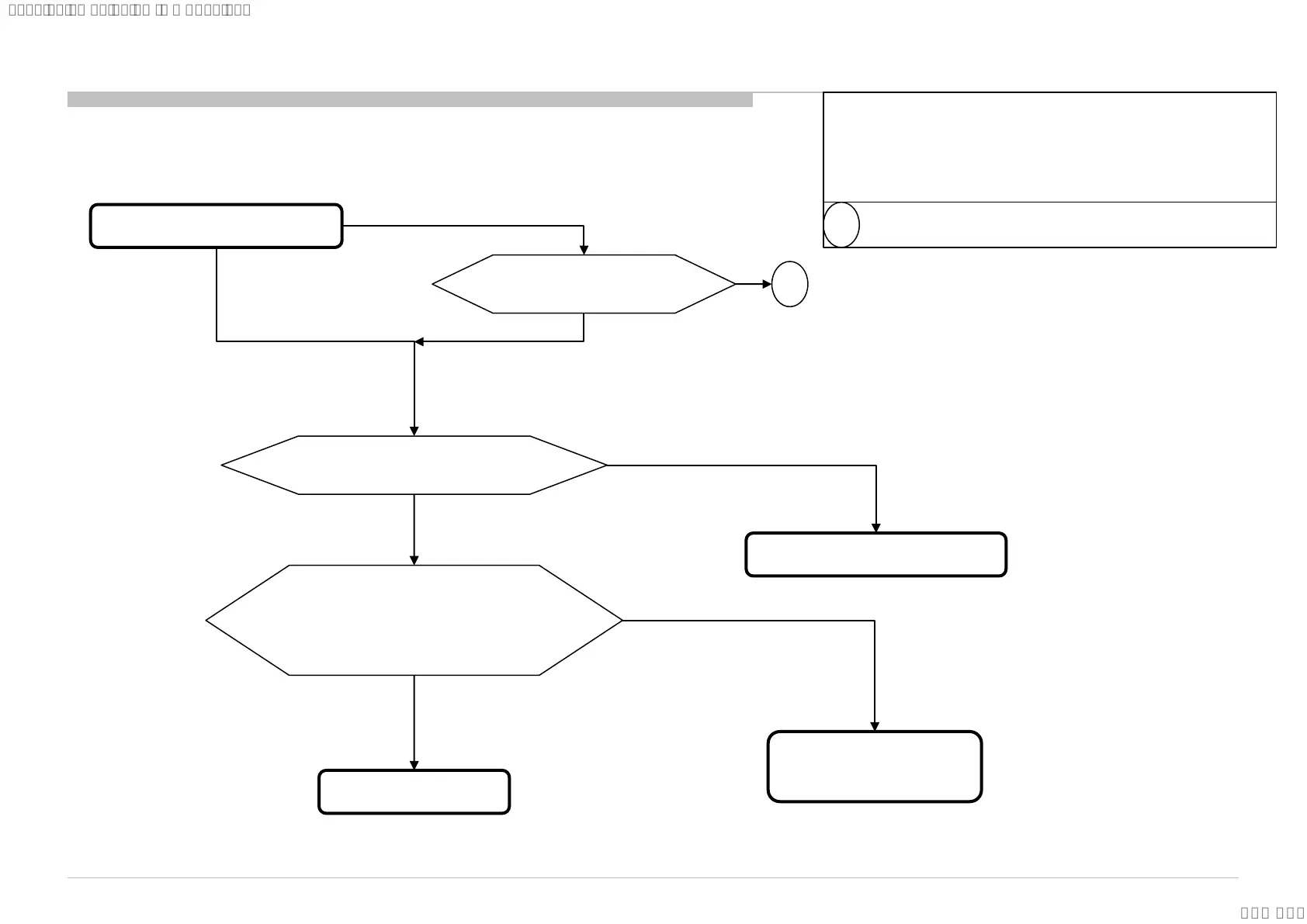

Sony KD-55A8F - 4.4 NO PICTURE: @ TUNER

OK
Can it preset broadcast?
Analog Tuning
NG
FOR ANALOG TUNING: @ All destination except JP
For LA-ISDB(BR/AR), LA-T2(COL) and TW only
For Other destination
Change NG parts
Check IC1000 (SoC)
OK
Confirm ANT or Cable connection
A
NG
Notes:
- Parts for IFOUT_N line : FB2801, C2807, C2826
- Parts for IFOUT_P line : FB2802, C2808, C2825
- Parts for IFAGC line : R2809,R2838, C2827
: Insert correct signal in correct terminal.
A
Check part mounting condition
for analog control line
“IFOUT_N, IFOUT_P, IFAGC”
Check IC1000 (SoC) &
Tuner module
OK
NG
