Sony KLV-26M400A - DISASSEMBLY PROCEDURES; Rear Cover and Switch Unit Removal

12
KLV-26M400A/32M400A/37M400A/40M400A
KLV-26M400A/32M400A/37M400A/40M400A

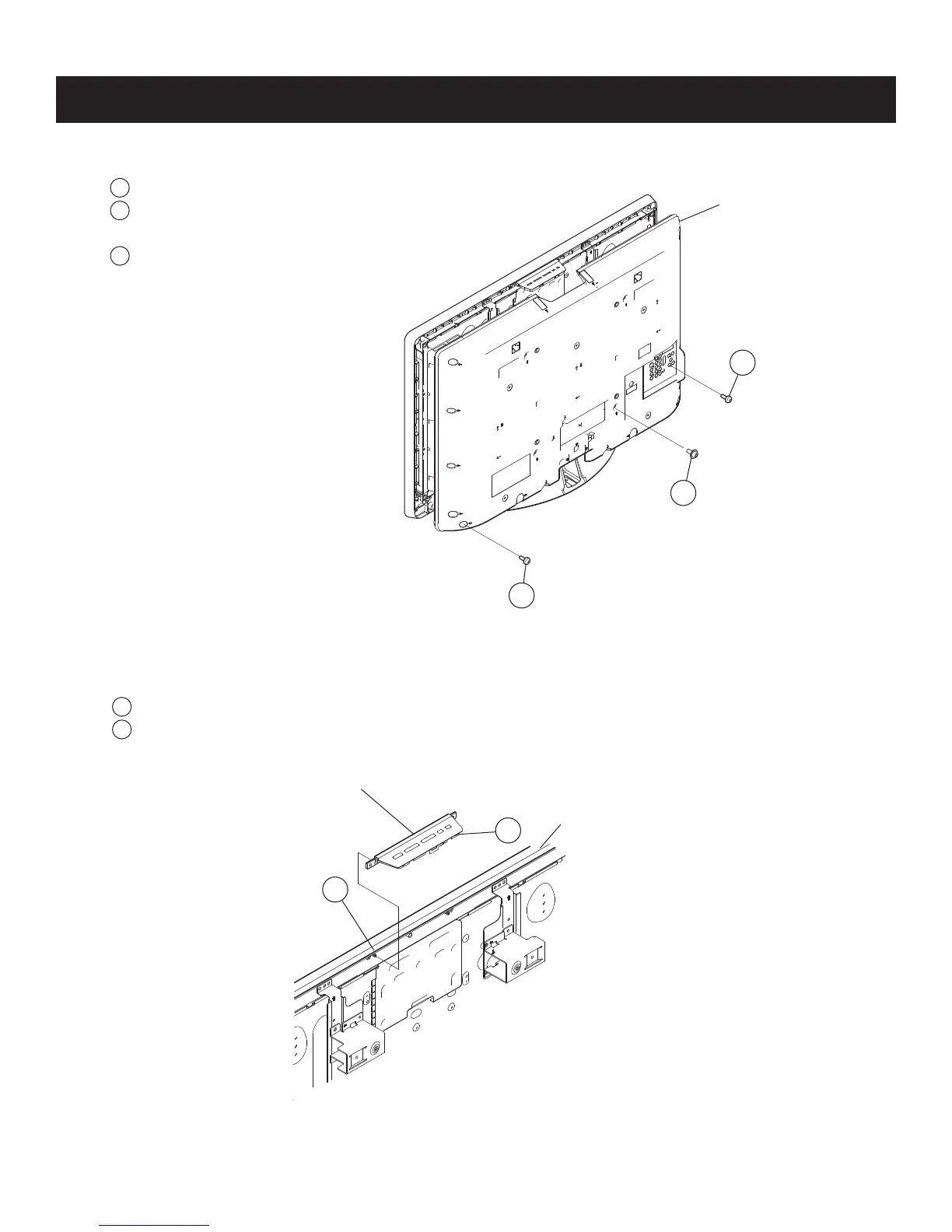

1-1. REAR COVER REMOVAL
SECTION 1: DISASSEMBLY
1
Remove 2 screws from Terminals
2
Remove 1 screw (KLV-26M400A/32M400A ONLY)
Remove 4 screws (KLV-37M400A/40M400A ONLY)
3
Remove 14 screws (KLV-26M400A ONLY)
Remove 15 screws (KLV-32M400A ONLY)
Remove 16 screws (KLV-37M400A ONLY)
Remove 15 screws (KLV-40M400A ONLY)
1-2. SWITCH UNIT REMOVAL (CONTAINS HB1 BOARD)
1
Remove from bezel
2
Disconnect 1 connector
Rear Cover
1
2
3
Bezel
Switch Unit
1
2
